Home Garrison Fencing Garrison Security Fencing | Steel Fence Solutions Complete Guide

Garrison Security Fencing | Steel Fence Solutions Complete Guide

Model Number: 1800mm, 2100mm, 2400mm height
Certification: ISO
Place of Origin: America, Australia, Canada
MOQ (Minimum Order Quantity): 600 linear meters
Price: $11.88 per linear meter
Payment Terms: TT 30% deposit, balance 70% upon sight of finished products
Supply Ability: 10,000 linear meters
Delivery Time: 7 work days
Packaging Details: All metal pallets
Type: Trellis, Gates, and Fencing
Materials: Q235 Steel

enquiry

Description

Garrison Security Fencing is a premium solution for property protection. Designed with strength and style in mind, this fencing system balances robust security with a visually appealing look. Unlike industrial alternatives like chain-wire fencing, garrison fencing enhances the appearance and value of properties while providing reliable protection.

What is Garrison Security Fencing?

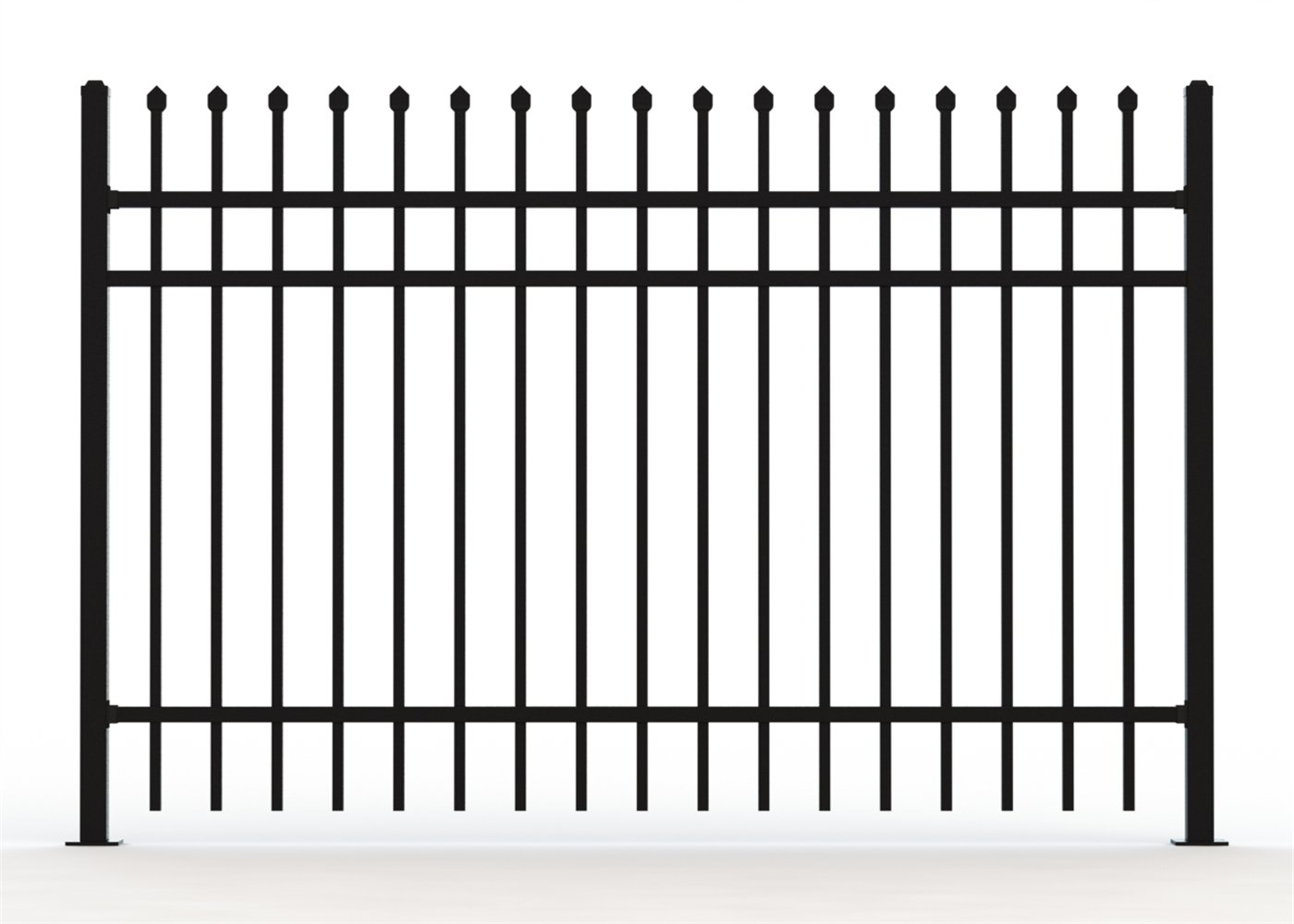

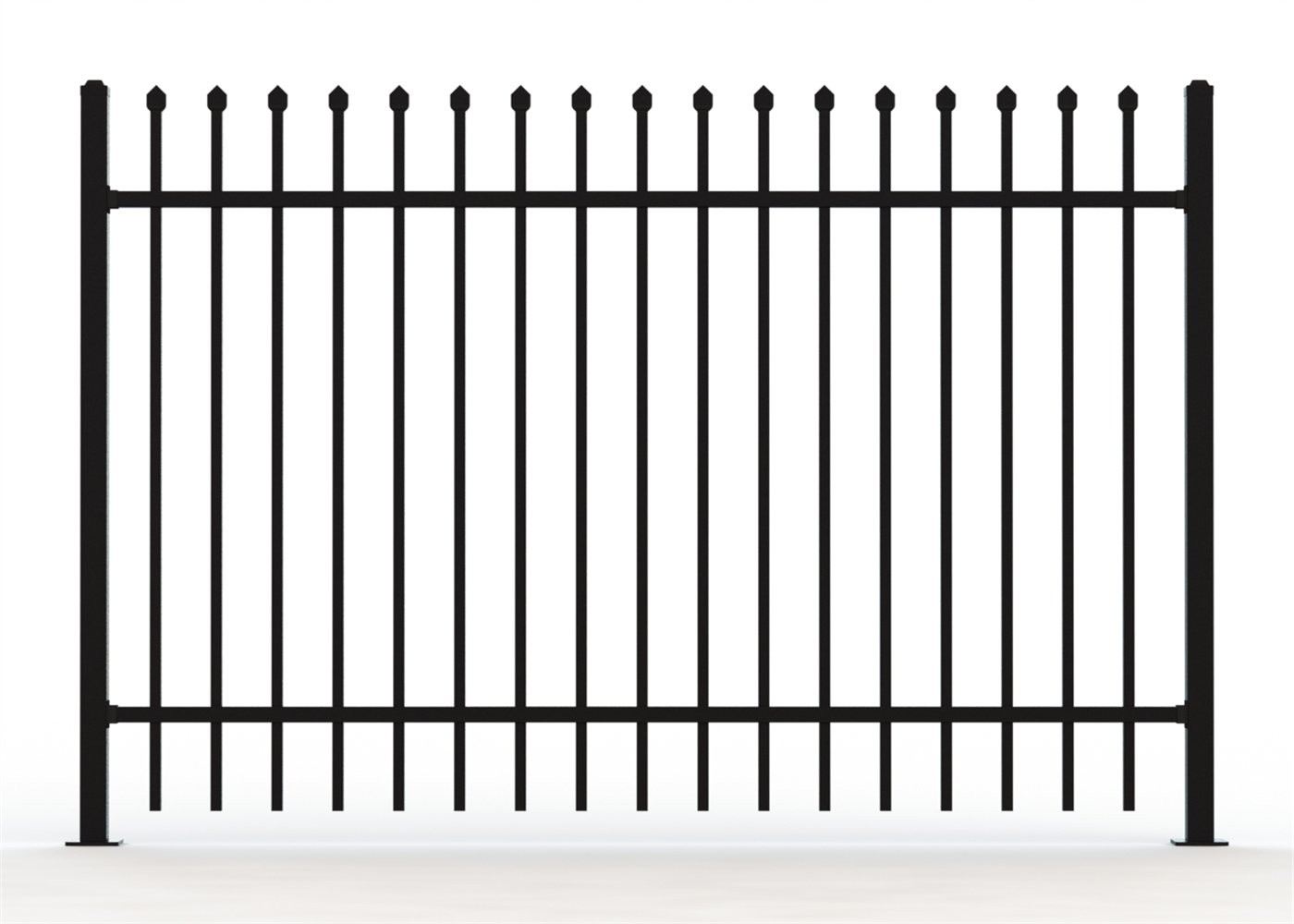

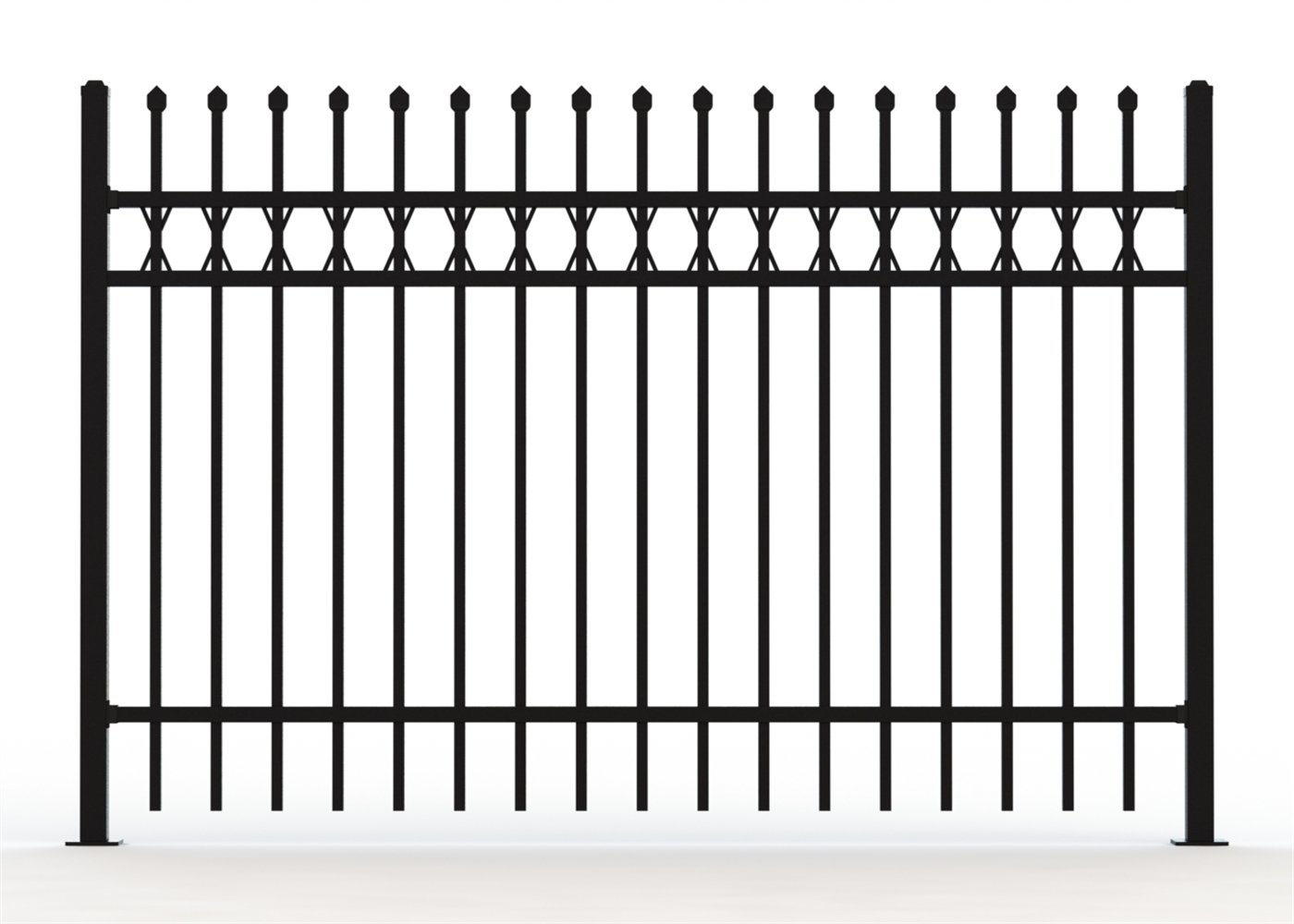

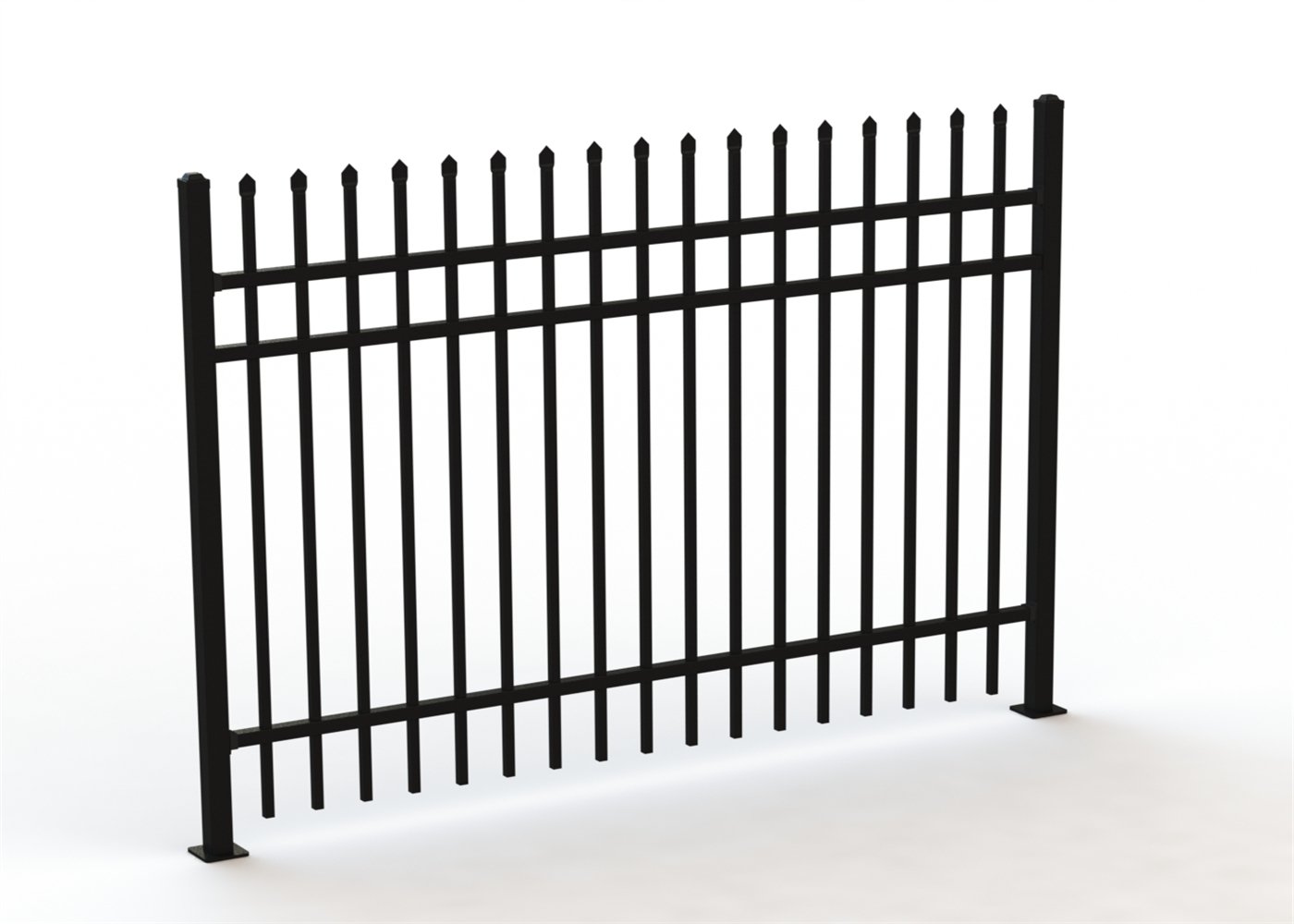

Garrison fencing is a steel security system featuring vertical pickets and horizontal rails, often topped with spear-shaped designs for additional deterrence. The panels are made from heavy-duty tubular steel, which is pre-galvanized and powder-coated for long-lasting durability. This fencing is available in various sizes, typically ranging from 1.2m to 2.5m in height and up to 3.0m in width.

Key Features and Benefits

Aesthetic Appeal: The spear-top design offers an elegant, modern appearance suitable for commercial and residential settings.
Durability: Pre-galvanized steel and powder-coated finishes resist rust and corrosion, ensuring a long lifespan.
Variety of Colors: Available in multiple powder-coat finishes, including popular options like black and dark green.
Enhanced Security: Spear tops and closely spaced pickets prevent climbing, offering effective intrusion prevention.
Low Maintenance: The high-quality coating requires minimal upkeep, reducing long-term maintenance costs.

Specifications Garrison Security Fencing

Panel Dimensions: Standard widths of 2.4m and heights from 1.8m to 2.4m.
Pickets: Made of 25mm x 25mm or 20mm x 20mm steel tubes with crimped spear tops.
Rails: 40mm x 40mm or 32mm x 32mm steel rails with 1.6mm thickness.
Posts: 60mm x 60mm or 75mm x 75mm steel posts, typically 2.0m to 3.0m tall.
Finish: Pre-galvanized and phosphate-treated before Powder coating for added protection.

Cheapest Garrison Security Fencing Specifications

Specification	1800mm x 2400mm	2100mm x 2400mm	2400mm x 2400mm	2700mm x 2400mm	3000mm x 2400mm
Upright Pale Thickness	1.0 (25mm x 25mm)	1.0 (25mm x 25mm)	1.0 (25mm x 25mm)	1.0 (25mm x 25mm)	1.0 (25mm x 25mm)
Upright Spacing	101mm	101mm	101mm	101mm	101mm
Quantity: Pale	18	18	18	18	18
Cross Rails	40mm x 40mm x 1.2mm	40mm x 40mm x 1.2mm	40mm x 40mm x 1.2mm	40mm x 40mm x 1.2mm	40mm x 40mm x 1.2mm
Post Height	2400mm	2700mm	3000mm	3300mm	3600mm
Square Post Section	65mm x 65mm x 3.0mm	65mm x 65mm x 3.0mm	65mm x 65mm x 3.0mm	75mm x 75mm x 3.0mm	75mm x 75mm x 3.0mm

Standard Garrison Fencing Specifications

Specification	1800mm x 2400mm	2100mm x 2400mm	2400mm x 2400mm	2700mm x 2400mm	3000mm x 2400mm
Upright Pale Thickness	1.2 (25mm x 25mm)	1.2 (25mm x 25mm)	1.2 (25mm x 25mm)	1.2 (25mm x 25mm)	1.2 (25mm x 25mm)
Upright Spacing	101mm	101mm	101mm	101mm	101mm
Quantity: Pale	18	18	18	18	18
Cross Rails	40mm x 40mm x 1.5mm	40mm x 40mm x 1.5mm	40mm x 40mm x 1.5mm	40mm x 40mm x 1.5mm	40mm x 40mm x 1.5mm
Post Height	2400mm	2700mm	3000mm	3300mm	3600mm
Square Post Section	65mm x 65mm x 3.0mm	65mm x 65mm x 3.0mm	65mm x 65mm x 3.0mm	75mm x 75mm x 3.0mm	75mm x 75mm x 3.0mm

Heavy Duty Garrison Fencing Specifications

Specification	1800mm x 2400mm	2100mm x 2400mm	2400mm x 2400mm	2700mm x 2400mm	3000mm x 2400mm
Upright Pale Thickness	1.6 (25mm x 25mm)	1.6 (25mm x 25mm)	1.6 (25mm x 25mm)	1.6 (25mm x 25mm)	1.6 (25mm x 25mm)
Upright Spacing	101mm	101mm	101mm	101mm	101mm
Quantity: Pale	18	18	18	18	18
Cross Rails	40mm x 40mm x 2.0mm	40mm x 40mm x 2.0mm	40mm x 40mm x 2.0mm	40mm x 40mm x 2.0mm	40mm x 40mm x 2.0mm
Post Height	2400mm	2700mm	3000mm	3300mm	3600mm
Square Post Section	65mm x 65mm x 3.0mm	65mm x 65mm x 3.0mm	65mm x 65mm x 3.0mm	75mm x 75mm x 3.0mm	75mm x 75mm x 3.0mm

Applications

Garrison Security Fencing is versatile and ideal for:

Commercial properties: Offices, warehouses, and retail outlets.
Industrial sites: Factories, mining facilities, and power stations.
Public spaces: Schools, parks, and sports stadiums.
Residential areas: Villas, community gardens, and apartment complexes.

Production and Quality

The production process includes cutting, welding, acid washing, and coating with rich zinc powder and polyester paint. Phosphate treatment ensures superior adhesion of the powder coating, offering better durability than standard coatings. Panels are assembled and packed securely to prevent damage during transport.

Why Choose Garrison Security Fencing?

Garrison fencing provides a high level of security while maintaining a sleek and professional appearance. The robust construction prevents unauthorized access while standing up to harsh weather conditions. Its minimal maintenance requirements and customizable options make it a cost-effective and attractive choice for any property.

Conclusion Garrison Security Fencing

Garrison Security Fencing is a reliable and stylish solution for protecting your property. With its durable design, anti-climb features, and customizable options, it stands out as one of the best fencing systems on the market. Choose garrison fencing for unmatched security and an elegant finish that enhances your property’s value and safety.
