Garrison Security Fencing
- 20GP container loading: 140 kit
- 40HC container loading: 320 kit
- HS code: 7308900000
- Packing: Metal stillages
- Price: $38.99 - $109.12 per kit
- Welding: Silicon Bronze Welding & stainless steel wire welded
- MOQ: 140 kits
- Rails: 40mm x 40mm and 45mm x 45mm, etc.
- Color: Available in any colors from RAL color charts
- Description
At BMP, we deliver Garrison Security Fencing that meets the highest Australian and New Zealand standards. Our fencing solutions combine strength, smart design, and long-term durability. With sleek black finishes, top-spec welding, and detailed sizing, our fences serve both security and appearance across all property types.
📋 Specifications: Garrison Security Fencing Sizes and Details
✅ All sizes shown below are available. Contact us for custom options.

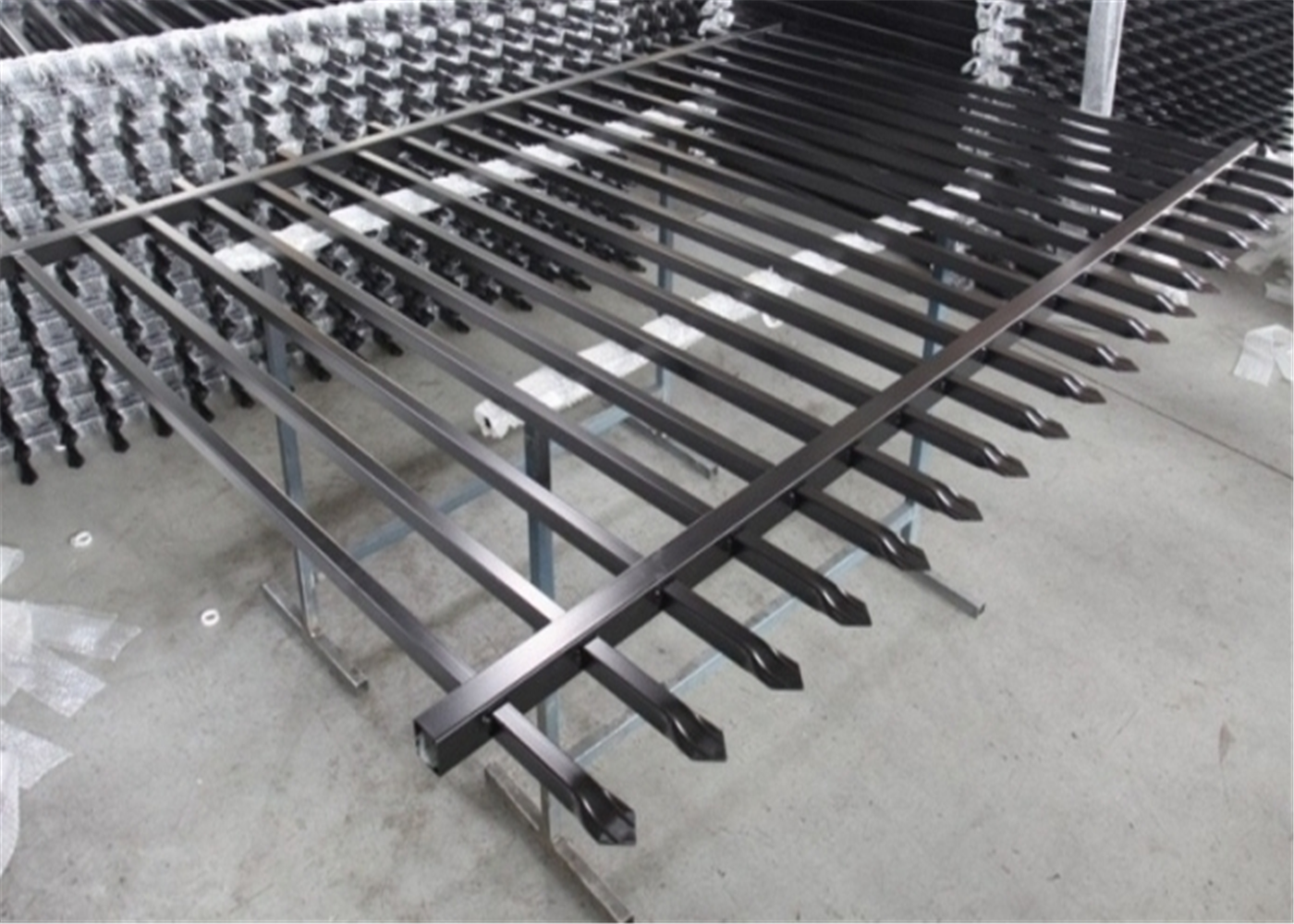

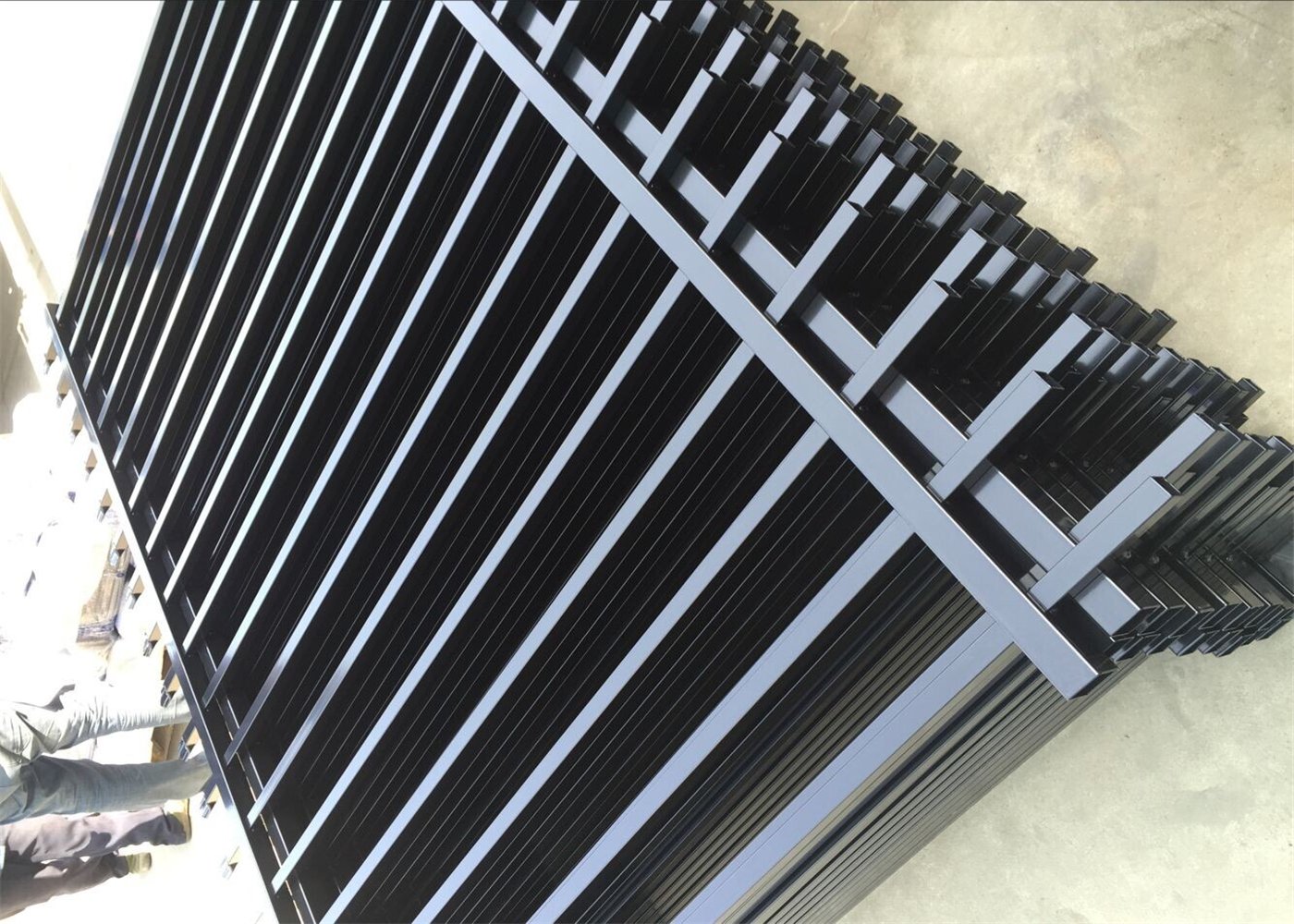

🧱 Complete Garrison Fence Panels Specifications
| Type | Fence Height (mm) | Fence Width (mm) | Pale Thickness (mm) (25×25) | Pale Spacing (mm) | Pale Qty (pcs) | Cross Rail (mm) | Post Height (mm) | Post Section (mm) |
|---|---|---|---|---|---|---|---|---|
| Cheapest | 1800 | 2400 | 1.0 | 101 | 18 | 40×40×1.2 | 2400 | 65×65×3.0 |
| Cheapest | 2100 | 2400 | 1.0 | 101 | 18 | 40×40×1.2 | 2700 | 65×65×3.0 |
| Cheapest | 2400 | 2400 | 1.0 | 101 | 18 | 40×40×1.2 | 3000 | 65×65×3.0 |
| Cheapest | 2700 | 2400 | 1.0 | 101 | 18 | 40×40×1.2 | 3300 | 75×75×3.0 |
| Cheapest | 3000 | 2400 | 1.0 | 101 | 18 | 40×40×1.2 | 3600 | 75×75×3.0 |
| Standard | 1800 | 2400 | 1.2 | 101 | 18 | 40×40×1.5 | 2400 | 65×65×3.0 |
| Standard | 2100 | 2400 | 1.2 | 101 | 18 | 40×40×1.5 | 2700 | 65×65×3.0 |
| Standard | 2400 | 2400 | 1.2 | 101 | 18 | 40×40×1.5 | 3000 | 65×65×3.0 |
| Standard | 2700 | 2400 | 1.2 | 101 | 18 | 40×40×1.5 | 3300 | 75×75×3.0 |
| Standard | 3000 | 2400 | 1.2 | 101 | 18 | 40×40×1.5 | 3600 | 75×75×3.0 |
| Heavy-Duty | 1800 | 2400 | 1.6 | 101 | 18 | 40×40×2.0 | 2400 | 65×65×3.0 |
| Heavy-Duty | 2100 | 2400 | 1.6 | 101 | 18 | 40×40×2.0 | 2700 | 65×65×3.0 |
| Heavy-Duty | 2400 | 2400 | 1.6 | 101 | 18 | 40×40×2.0 | 3000 | 65×65×3.0 |
| Heavy-Duty | 2700 | 2400 | 1.6 | 101 | 18 | 40×40×2.0 | 3300 | 75×75×3.0 |
| Heavy-Duty | 3000 | 2400 | 1.6 | 101 | 18 | 40×40×2.0 | 3600 | 75×75×3.0 |
⚙️ 🧩 Garrison Fencing Accessories and Options

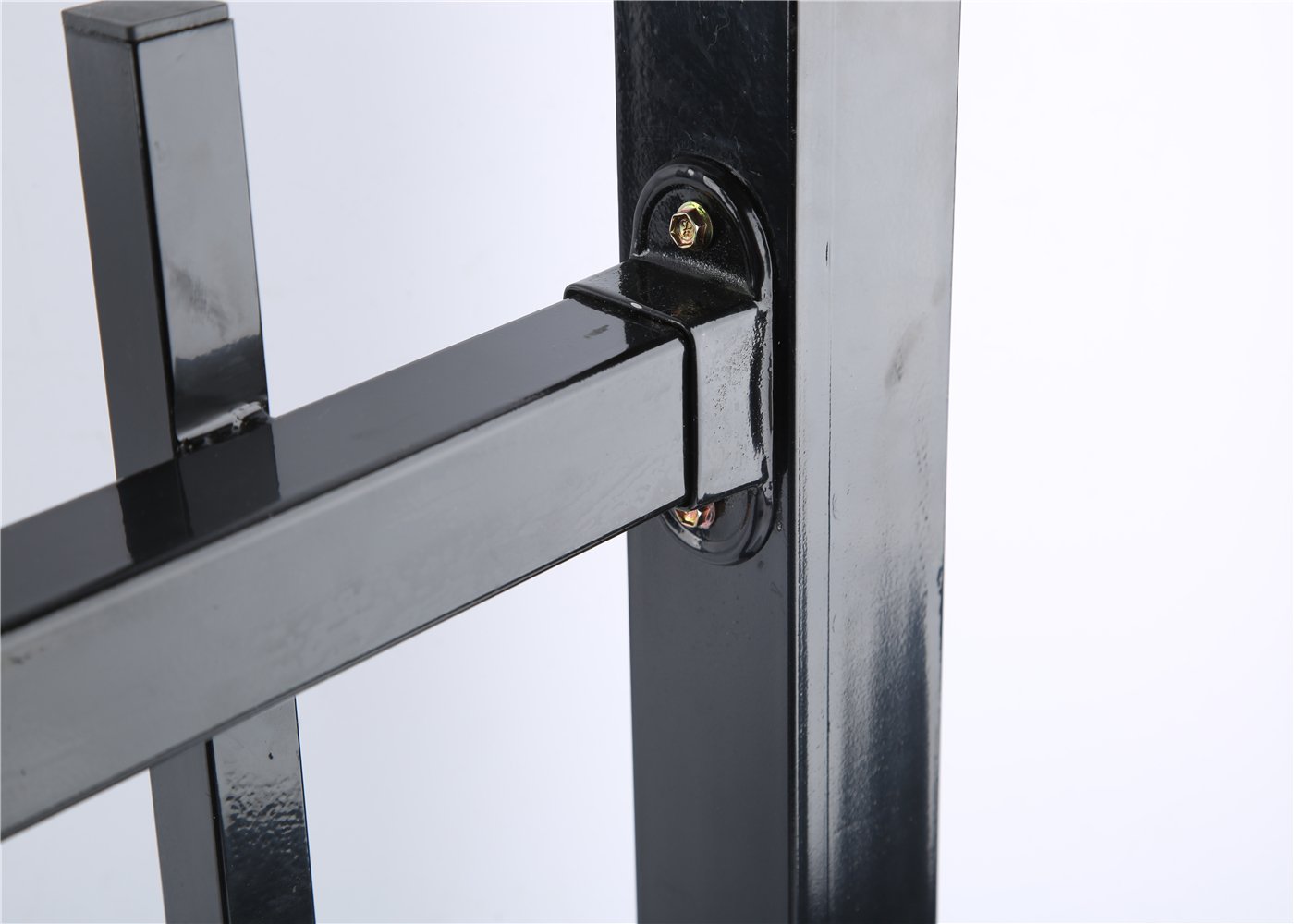

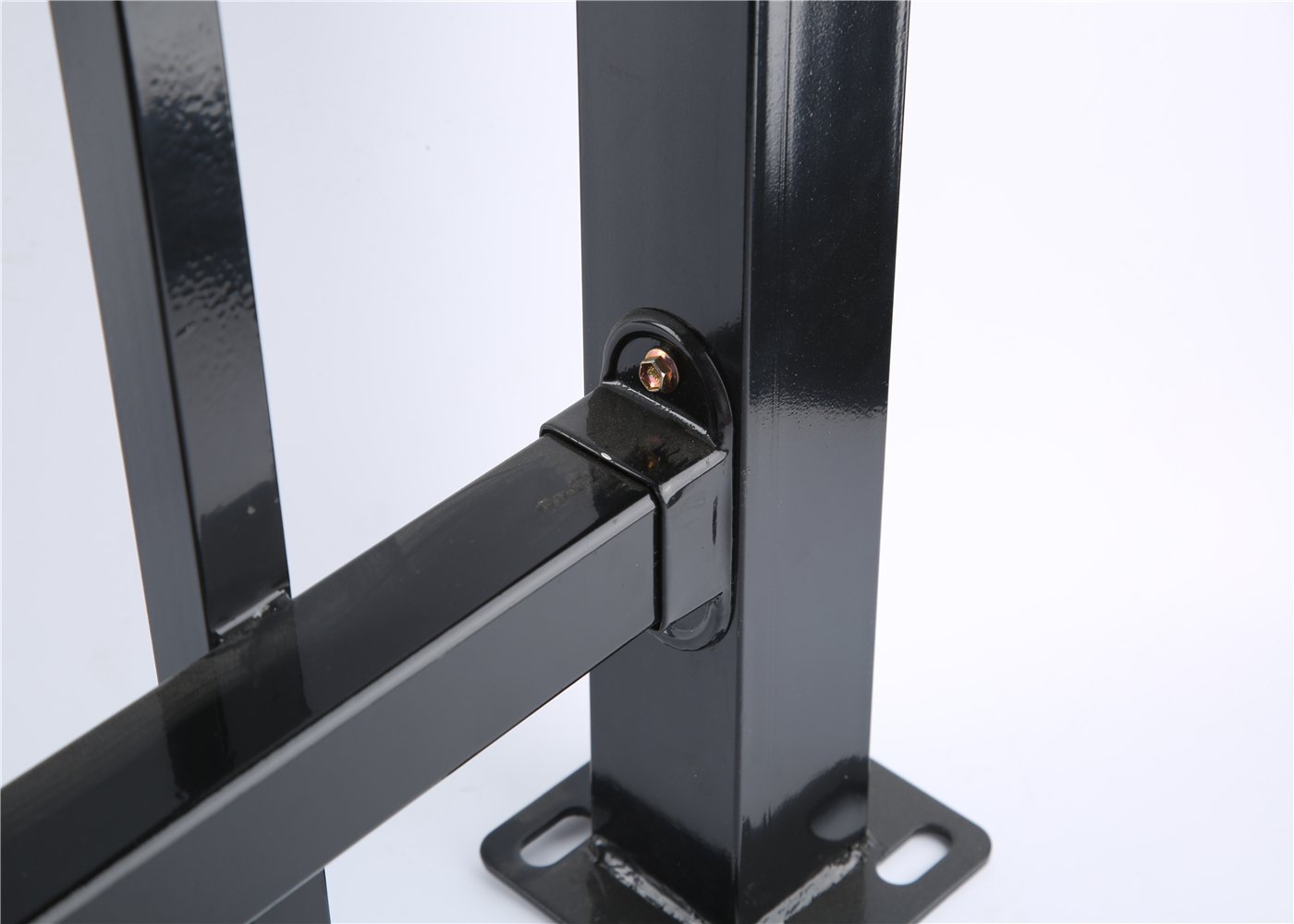

🔩 Garrison Fencing Brackets
| Bracket Type | Length (mm) | Height (mm) | Wall Thickness (mm) | Screw Holes | Screw Hole Size | Finish | Image |
|---|---|---|---|---|---|---|---|

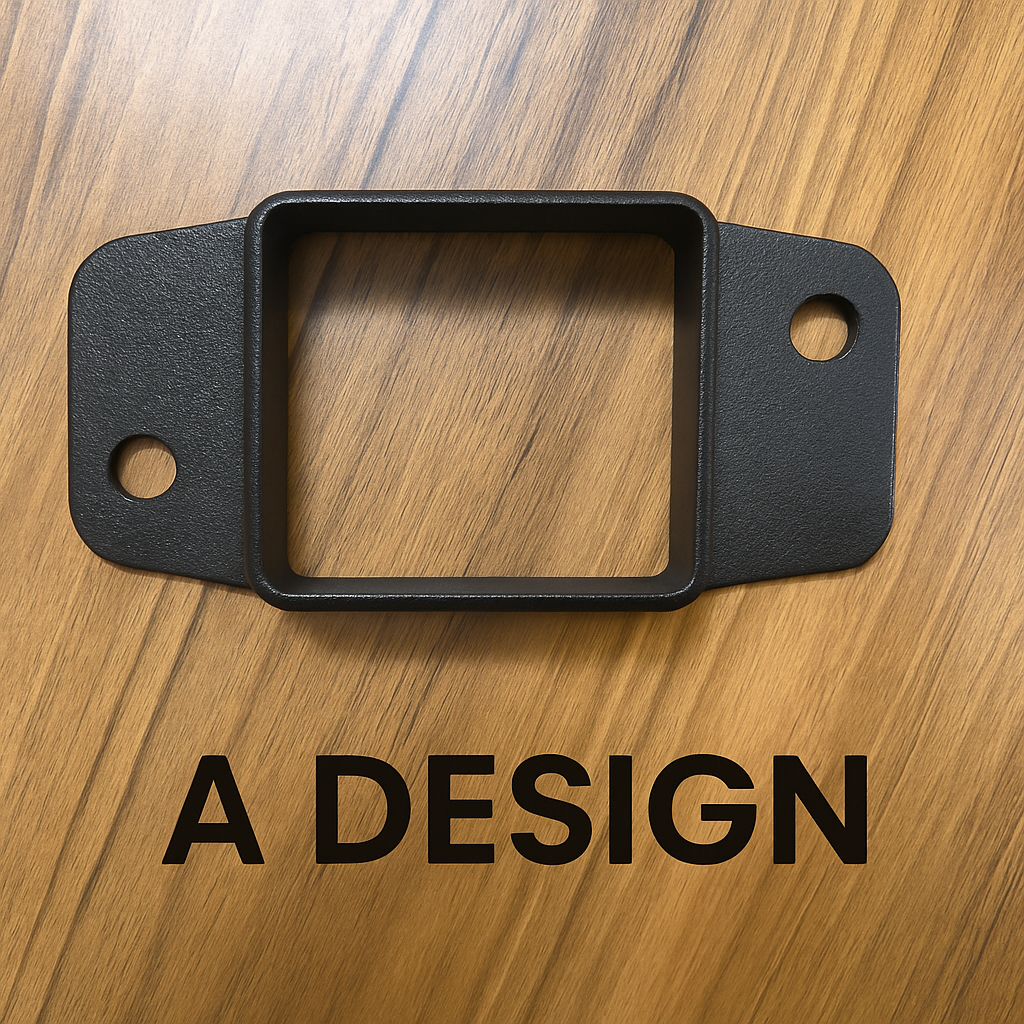

| Bracket A | 90 | 25 | 2.00 | 2 | 6mm | Hot-dip galvanized / Powder coated |  |

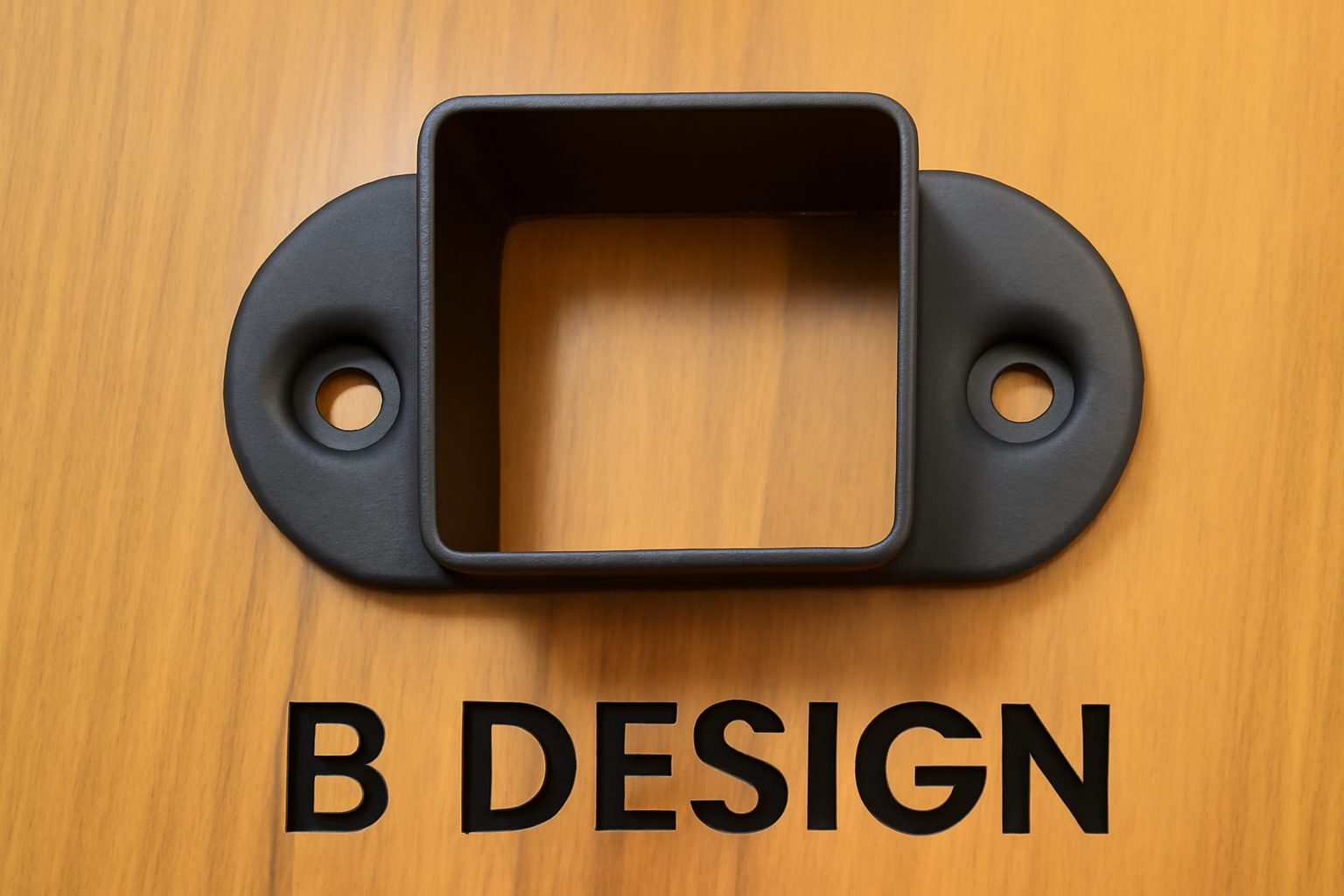

| Bracket B | 90 | 35 | 2.00 | 2 | 6mm | Hot-dip galvanized / Powder coated |  |

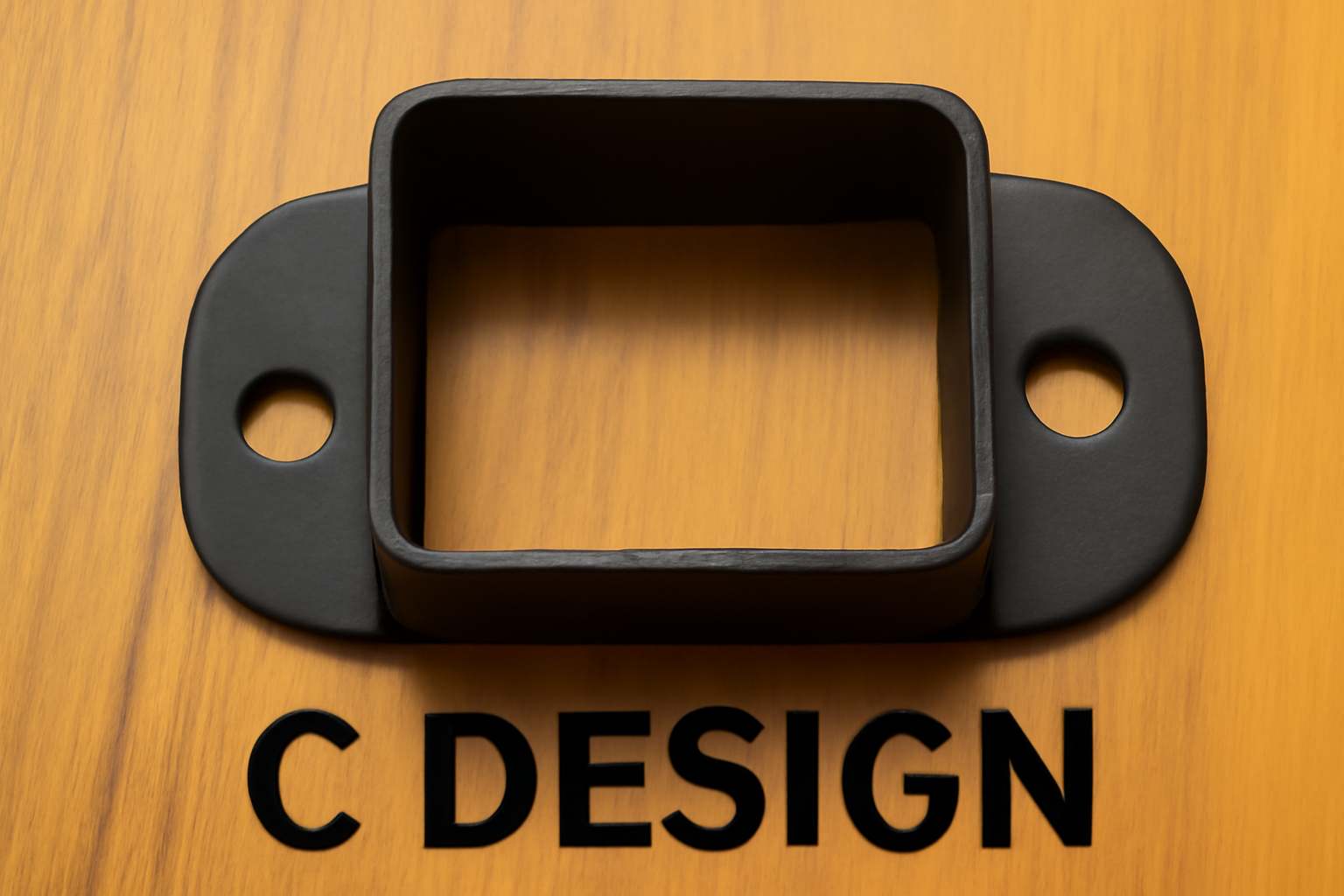

| Bracket C | 75 | 25 | 2.00 | 2 | 6mm | Hot-dip galvanized / Powder coated |  |

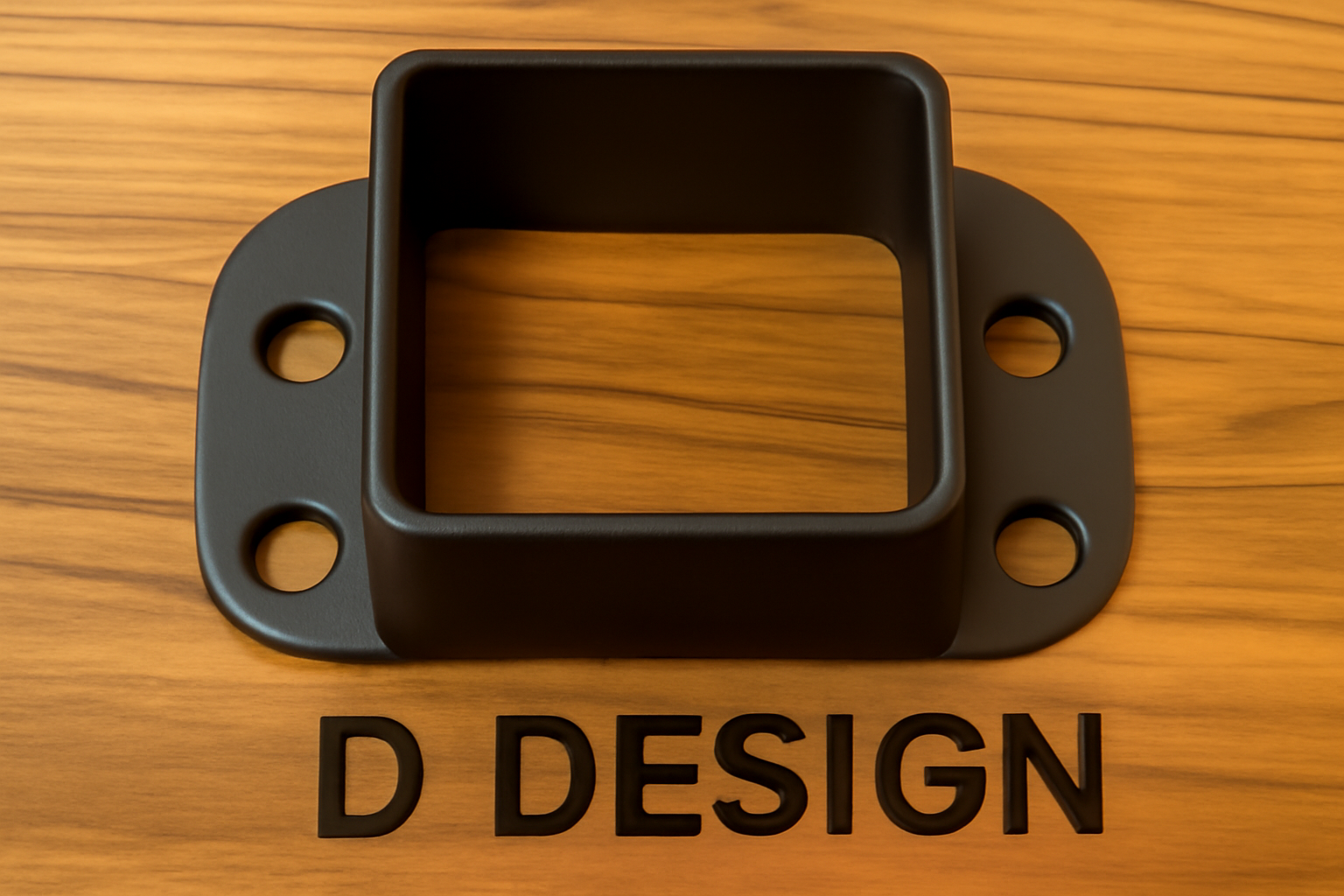

| Bracket D | 75 | 25 | 2.00 | 4 | 6mm | Hot-dip galvanized / Powder coated |  |

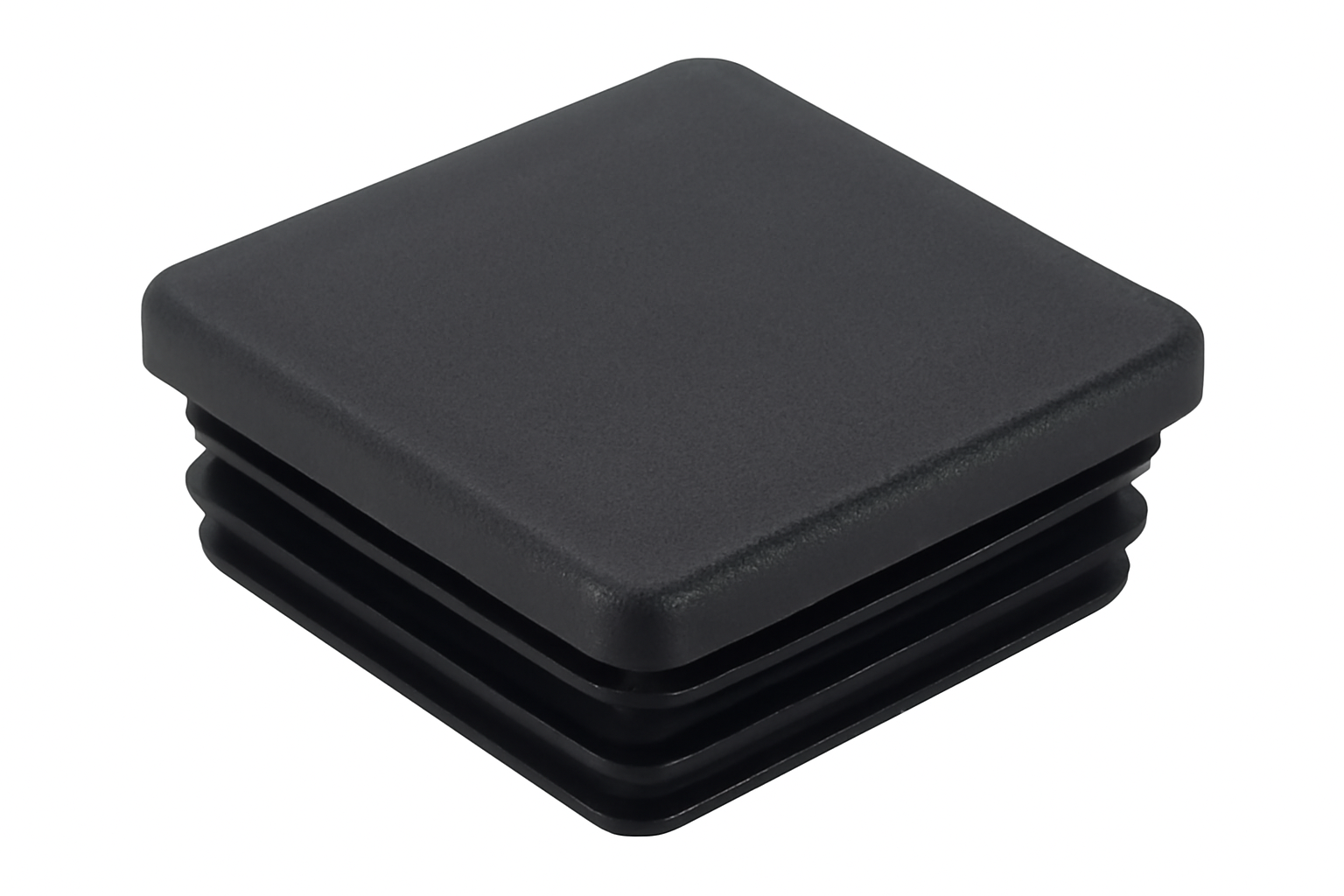

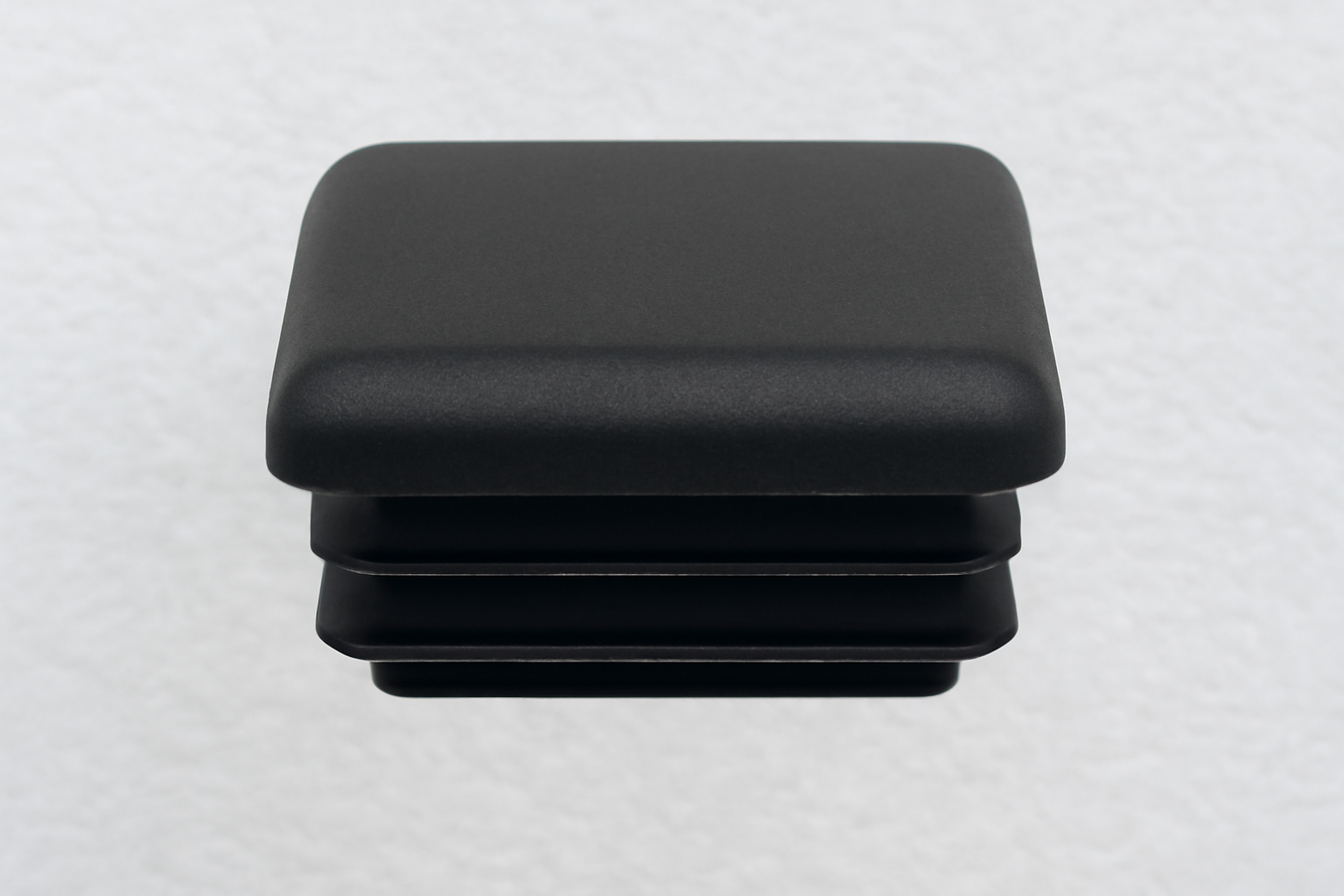

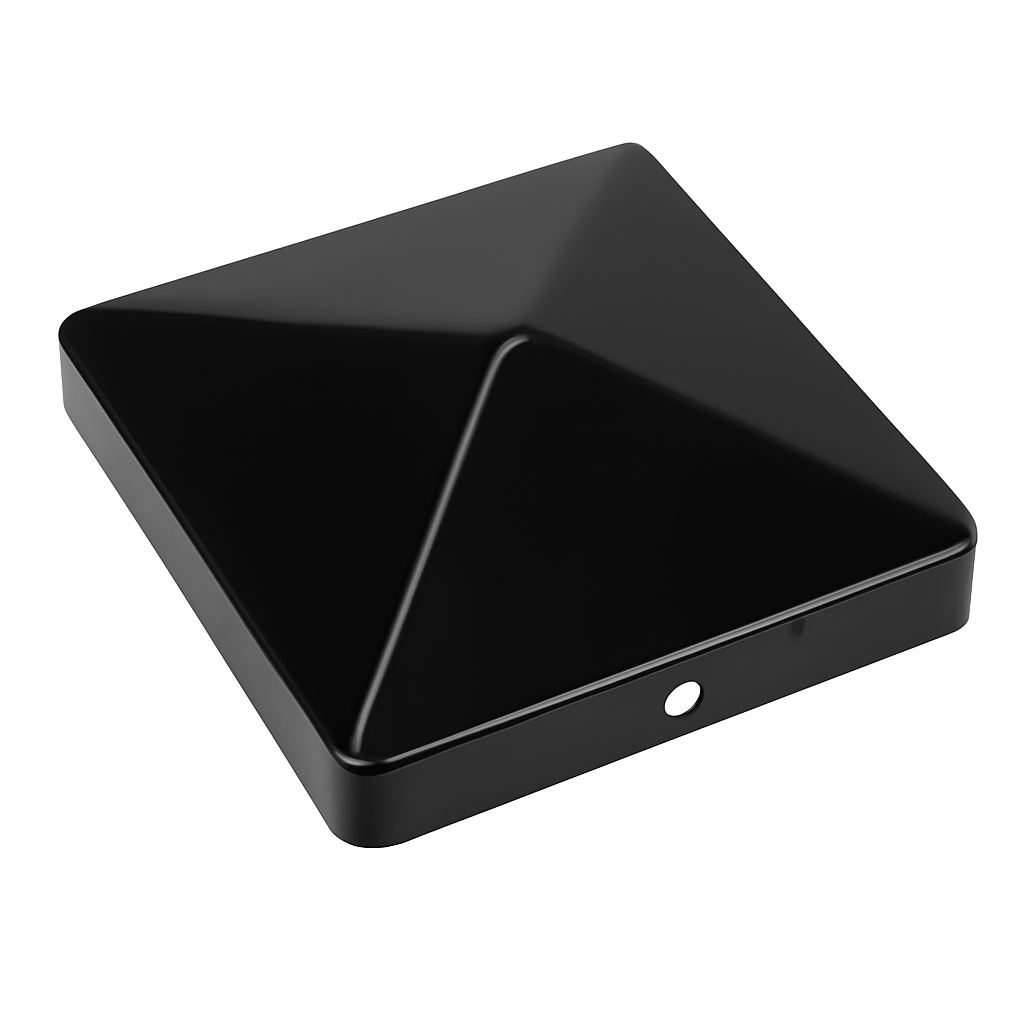

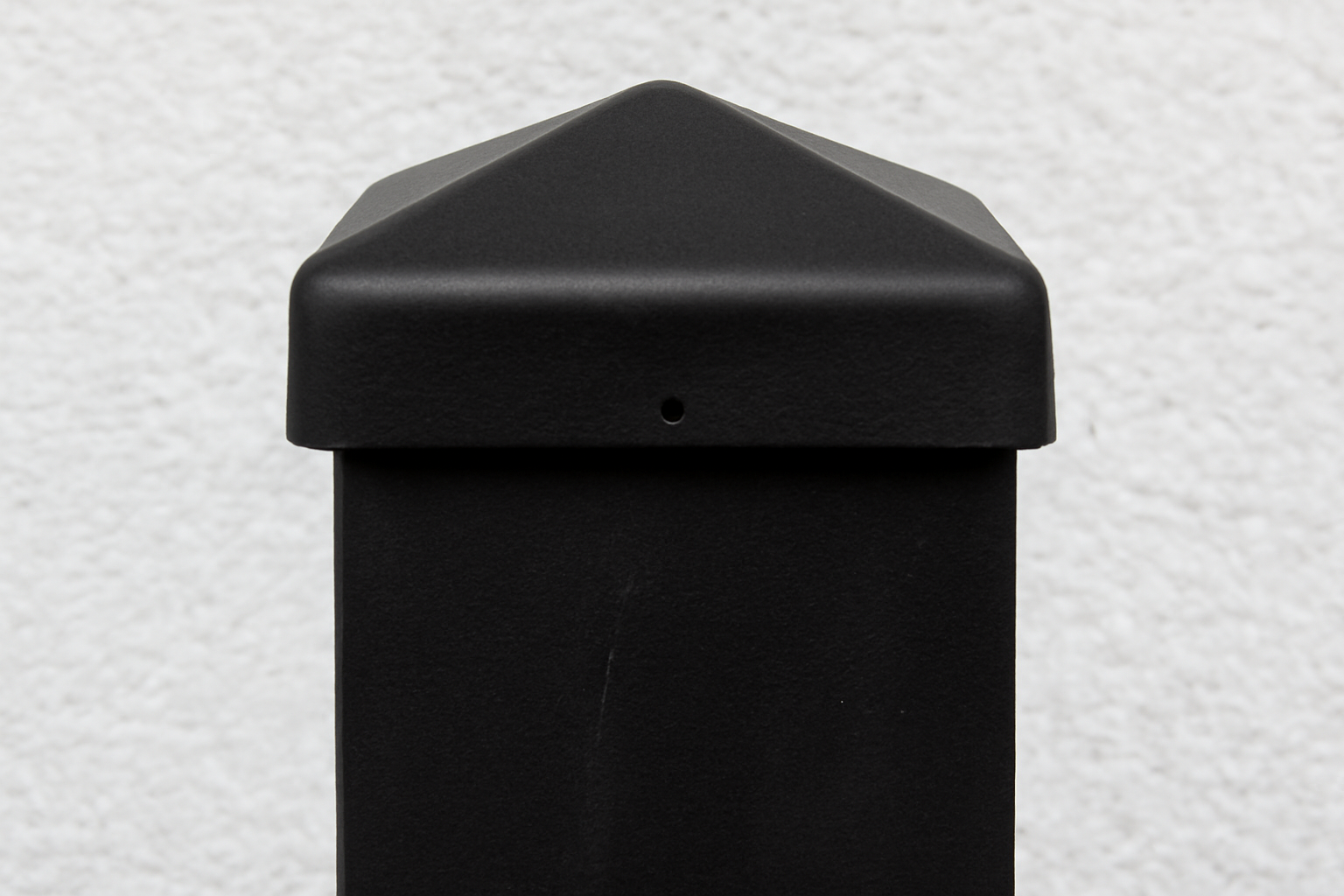

🧢 Garrison Fencing Post Caps Specifications
| Option Type | Fit Size | Material | Features | HS Code | Price (USD) | Image |
|---|---|---|---|---|---|---|
| UV Plastic Cap | 65×65mm square post | UV-Treated Plastic | Lightweight, weather-resistant, cost-effective | 39269097 | $0.60 – $0.80 |  |
| UV Plastic Cap | 65×65mm square post | UV-Treated Plastic | Lightweight, weather-resistant, cost-effective | 39269097 | $0.60 – $0.80 |  |
| Steel Cap | 65×65mm square post | Galvanized Steel | High durability, impact-resistant, industrial finish | 73089000 | $0.90 – $1.20 |  |
| Steel Cap | 65×65mm square post | Galvanized Steel | High durability, impact-resistant, industrial finish | 73089000 | $0.90 – $1.20 |  |
🎯 🛡️ Benefits of Garrison Security Fencing
- ✅ High security for industrial zones, schools, government sites
- ✅ Sleek black powder coating (AS 4506:2005 compliant)
- ✅ Rustproof thanks to hot-dip galvanization (AS/NZS 4680:2006)
- ✅ Structural integrity (AS 4100:2020 & AS/NZS 1170.2:2021)

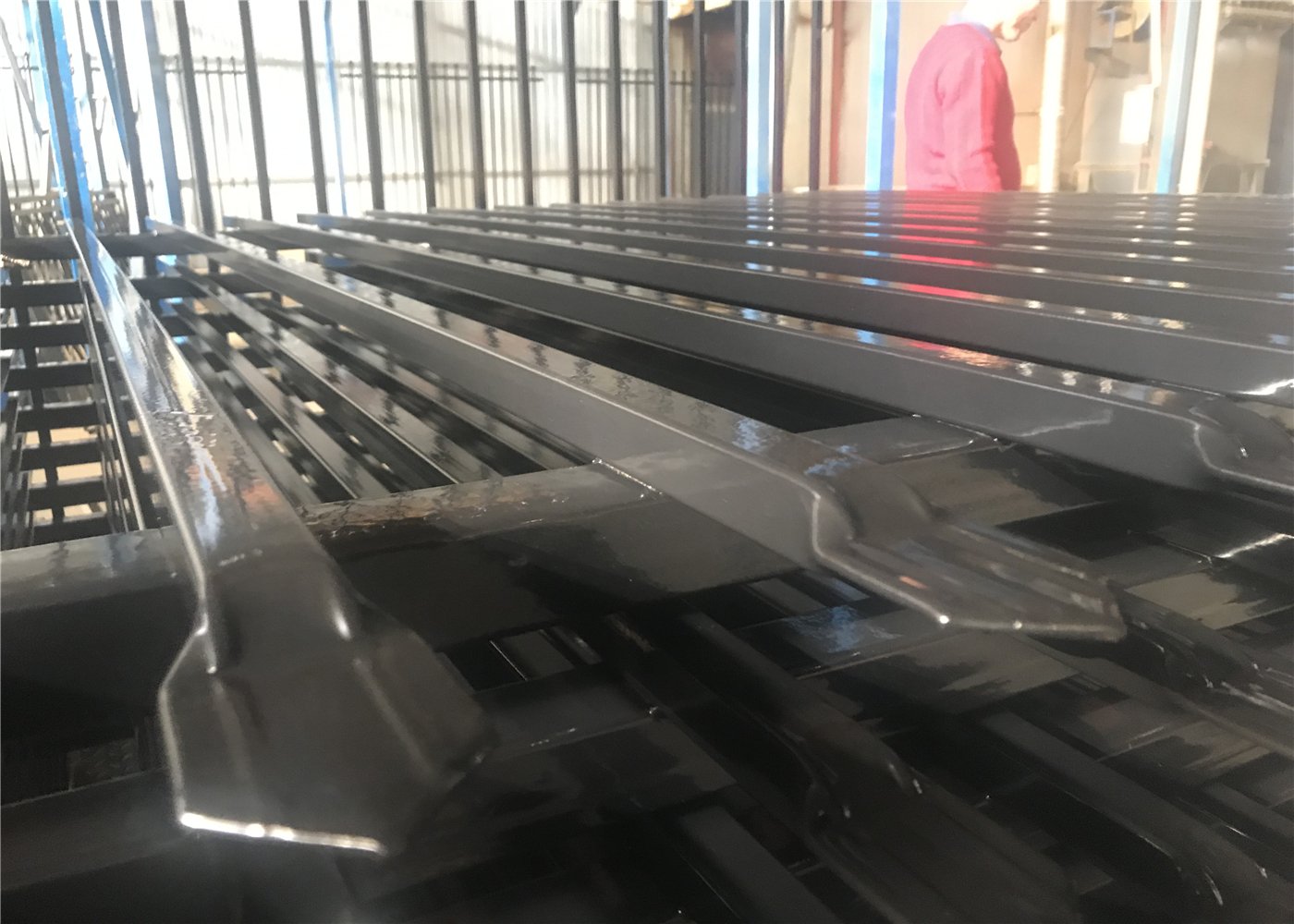

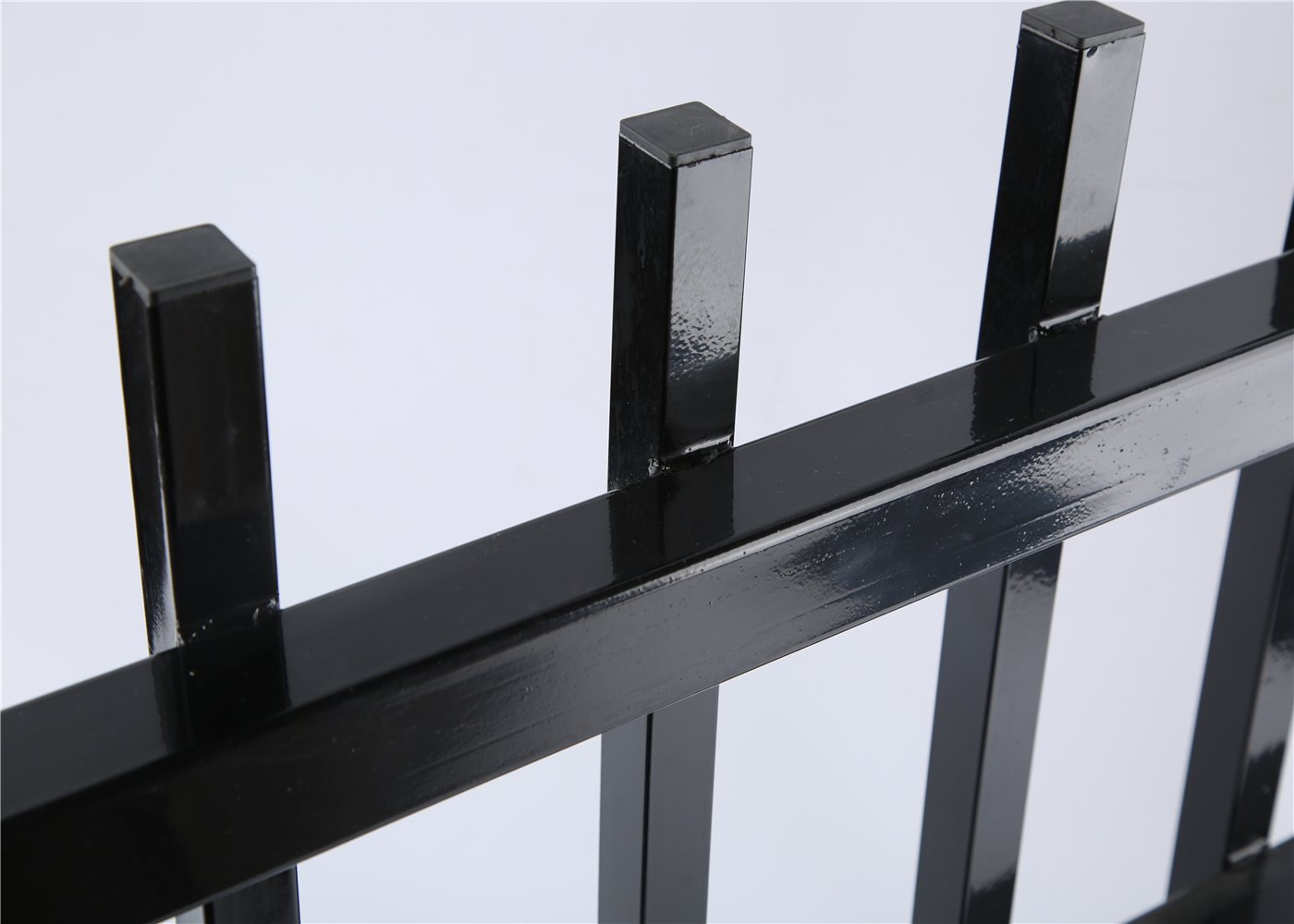

- ✅ Spear or flat tops available
- ✅ Fully customizable
🏠 🛠️ Applications of Garrison Security Fencing
- 🏭 Industrial complexes
- 🏫 Schools and universities
- 🏢 Government buildings
- 🏡 Residential estates
- 🏞️ Public parks and sports grounds
- 🛒 Shopping centers and logistics hubs

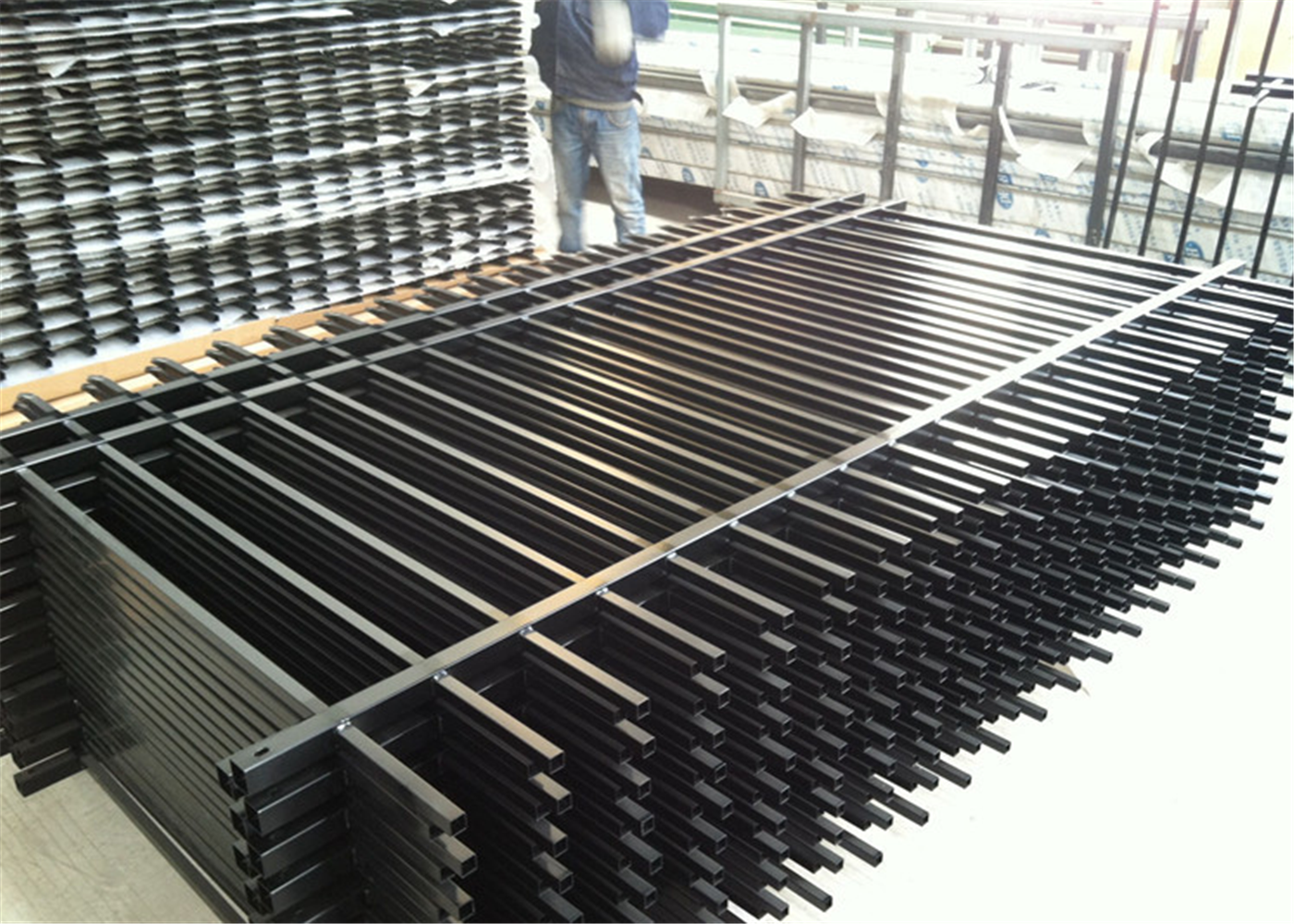

🔍 📦 Packaging of Garrison Security Fencing
- Panels packed with plastic film, metal corners, and bubble wrap base
- Posts individually wrapped in bubble plastic
- Brackets packed in cartons with 4 screws
- Protective wood top board and metal straps for safe transport
- Optional steel cages for export
💬 ✅ Customer Feedback – Australia
“BMP’s fencing exceeded our expectations. It was easy to install, rock-solid, and looked premium.”
— Emily, Construction Manager, Sydney
“Delivered on time, met every compliance checklist. Zero rust even after 8 months in coastal WA.”
— James, Warehouse Operator, Perth
🧠 🌦️ Conditions to Consider When Using Garrison Security Fencing
- Environment: Use heavy-duty or galvanized finish in coastal or industrial zones
- Height & Spacing: Choose based on your local council regulations and intrusion risk
- Aesthetic Needs: Use flat tops for public/residential zones, spear tops for industrial/security
- Maintenance: Clean powder-coated areas regularly to prevent buildup
❓📚 Frequently Asked Questions (FAQs)

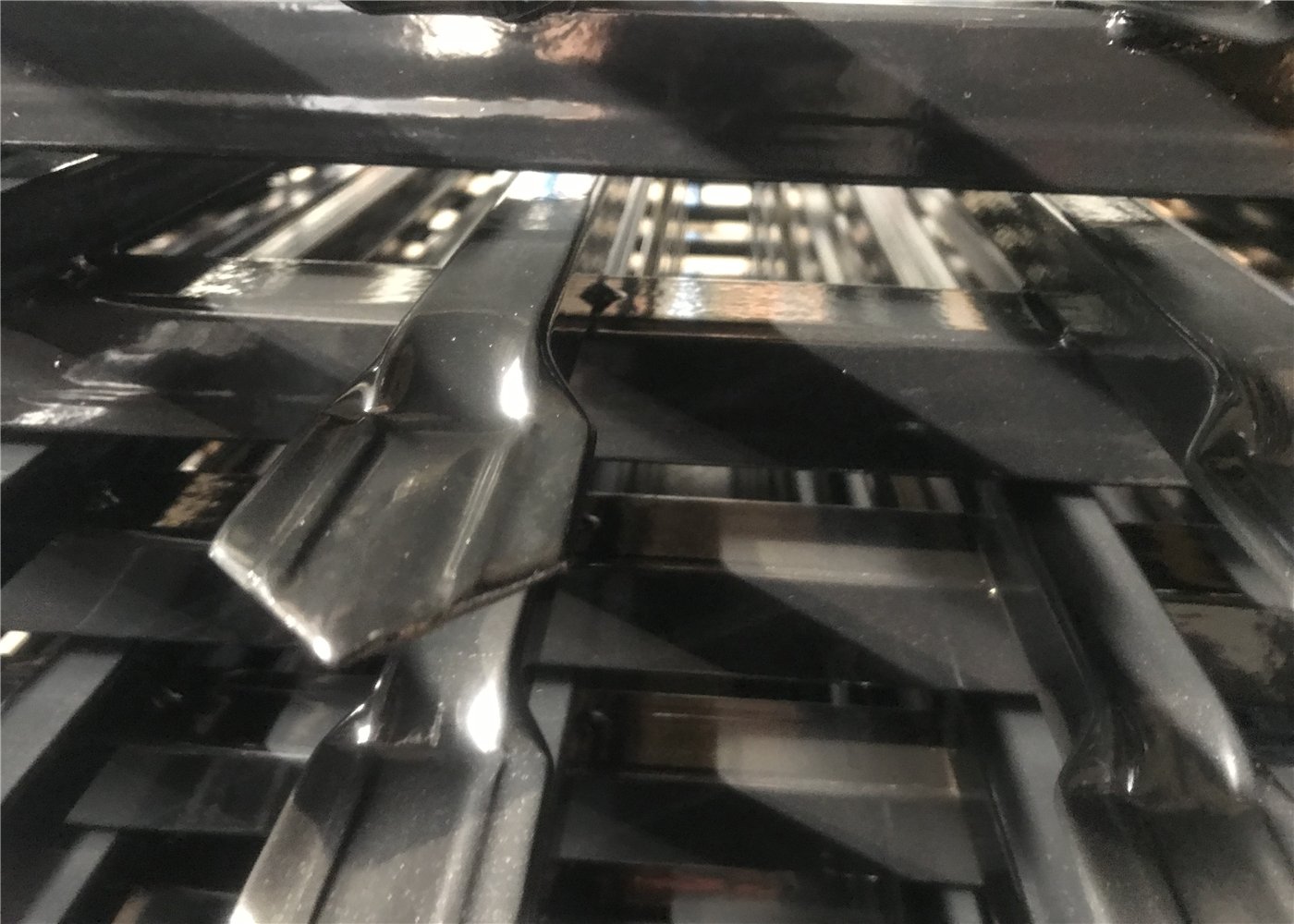

🔹 Can I choose between spear tops and flat tops?
Yes. We offer both crimped spear tops for high security and flat tops for residential or decorative use.
🔹 Do you provide powder coating options?
Absolutely. All panels are powder-coated black by default, but other RAL colors are available.
🔹 Can I request custom panel height or rail thickness?
Yes. BMP accepts fully customized dimensions with MOQ and lead time conditions.
🔹 What’s the lifespan of BMP Garrison Security Fencing?
Over 20 years with proper installation and minimal maintenance in standard environments.
🔹 Is installation included?
We currently supply only, but installation guidance is provided.
🧰 🧪 Why BMP Uses Stainless Steel and Silicon Bronze Welding
- Stainless steel welding: High strength and corrosion resistance
- Silicon bronze welding: Lower heat, protects galvanization, great appearance
- Both comply with weld-quality standards for structural steel and long service life

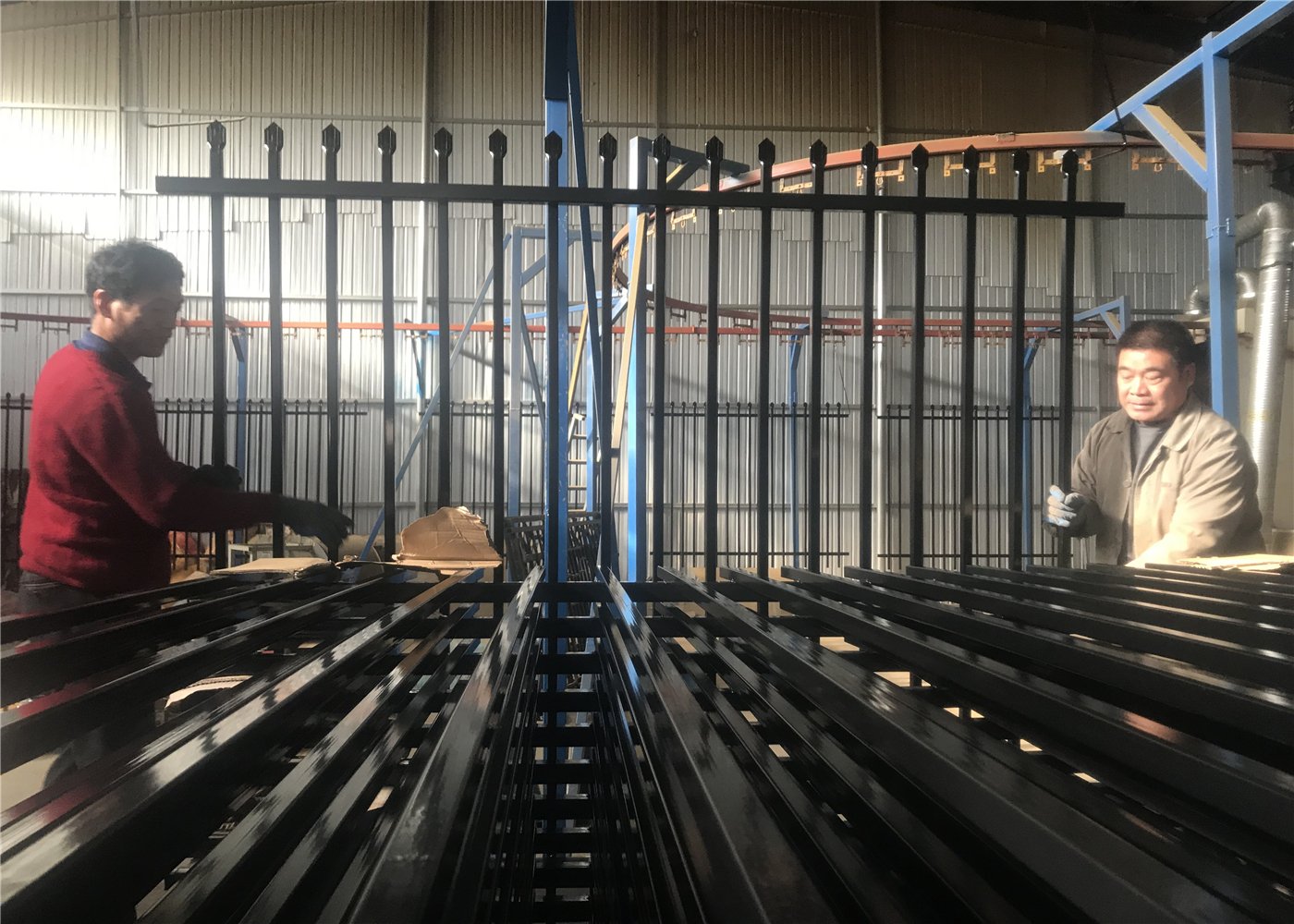

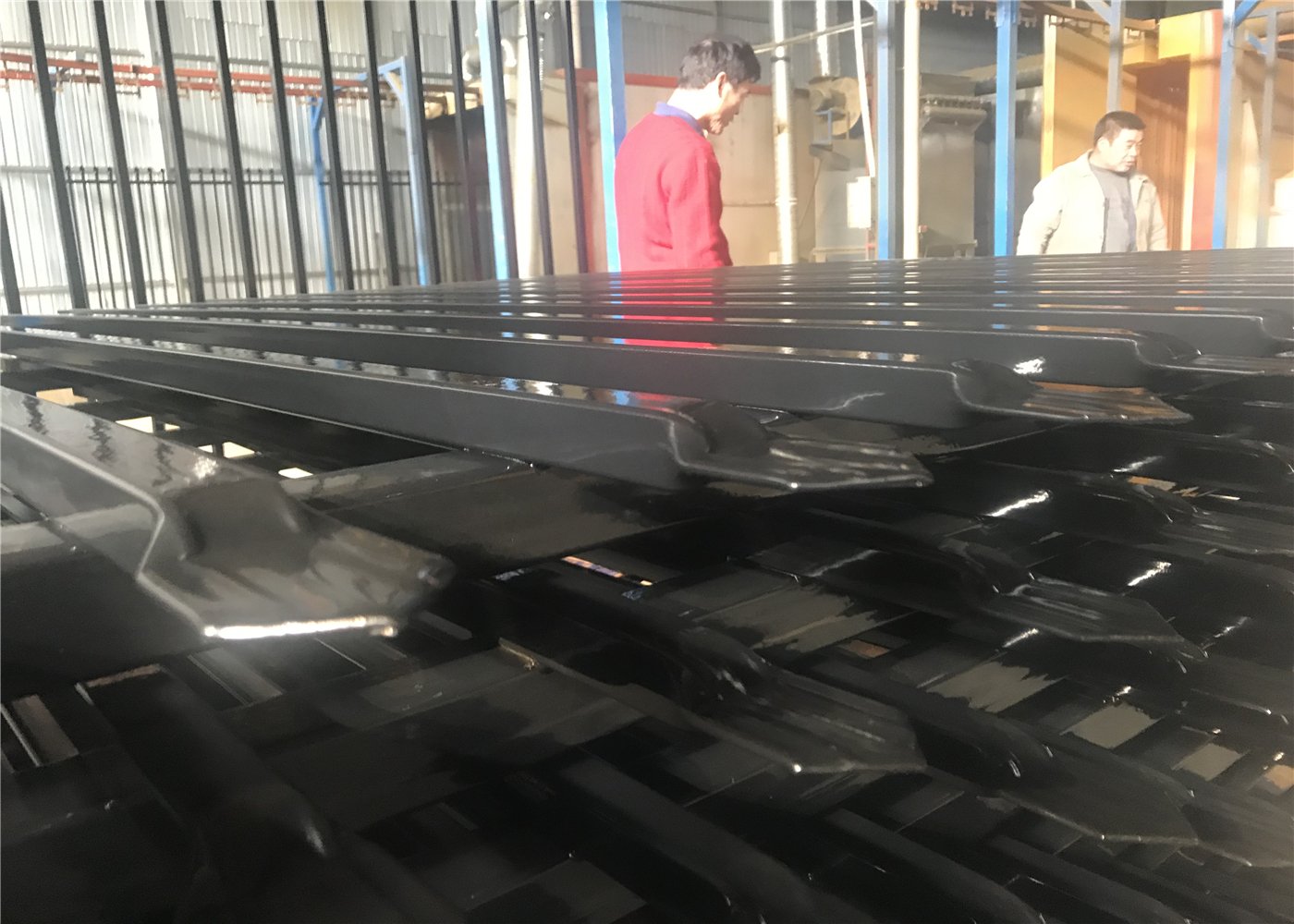

⚙️ 🔧 Production Process (8 Steps)

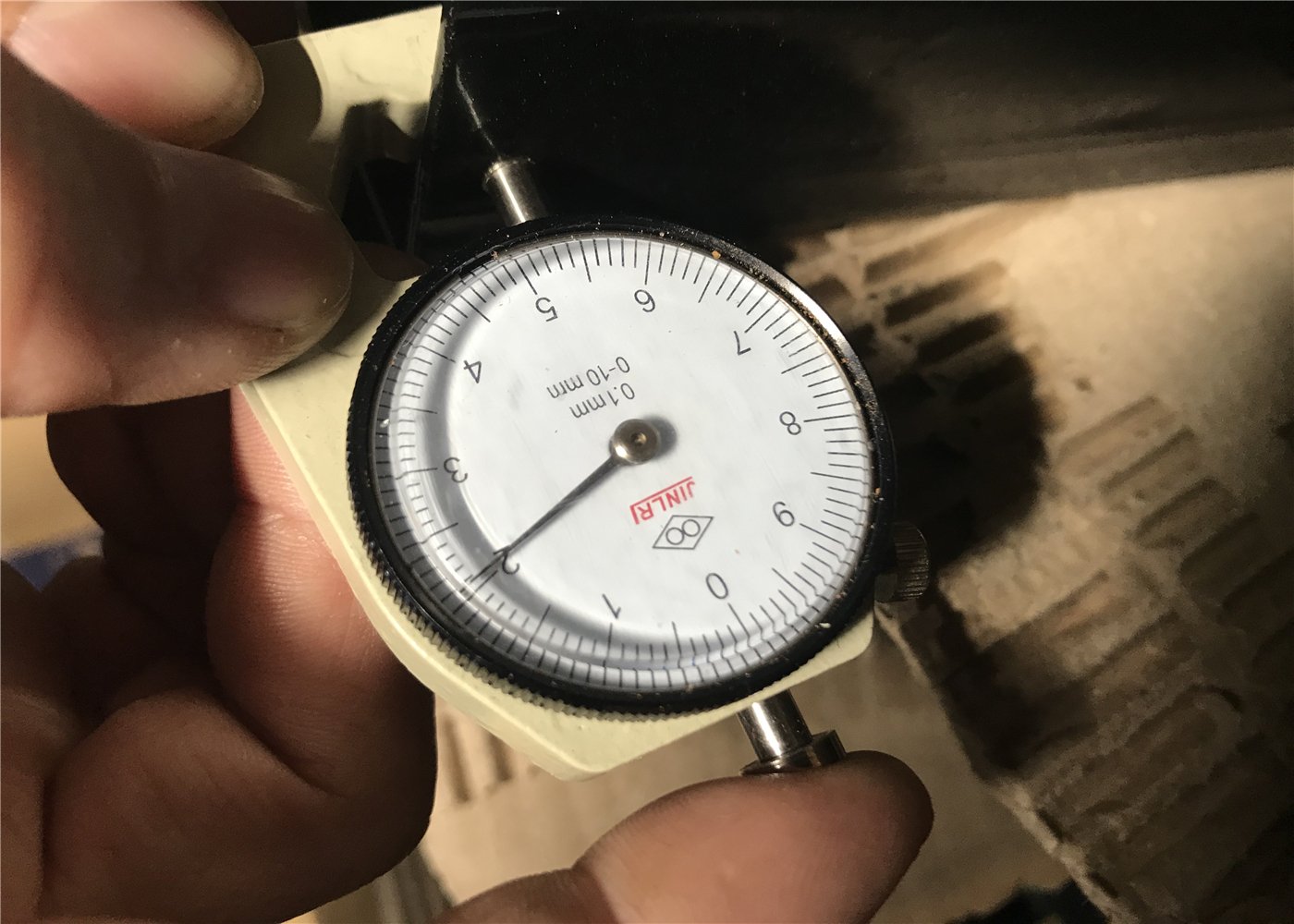

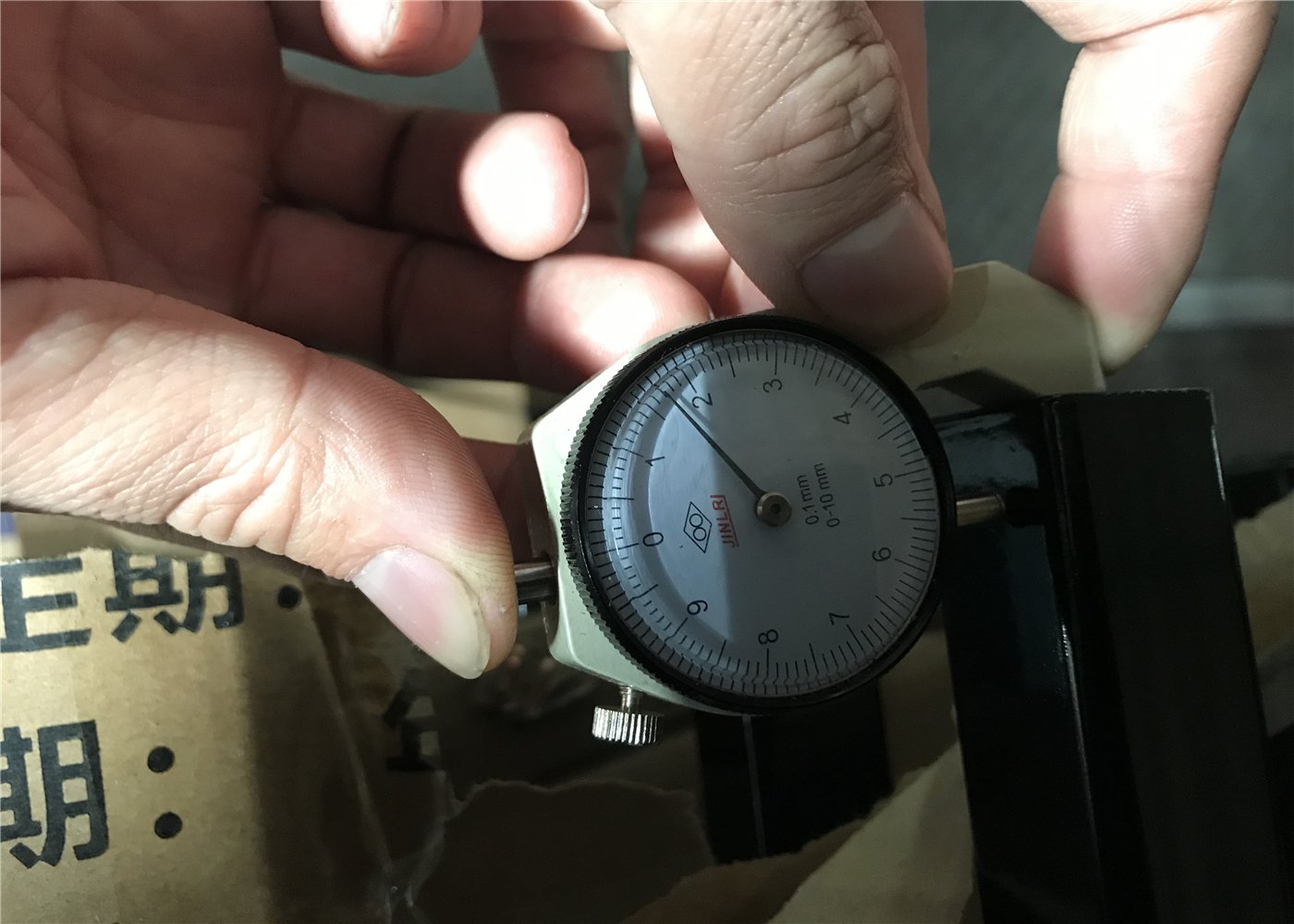

- Raw material inspection
- Steel tube cutting
- Tube flattening
- Welding (face or punched)
- Sandblasting
- Phosphating
- Powder coating
- Secure packaging

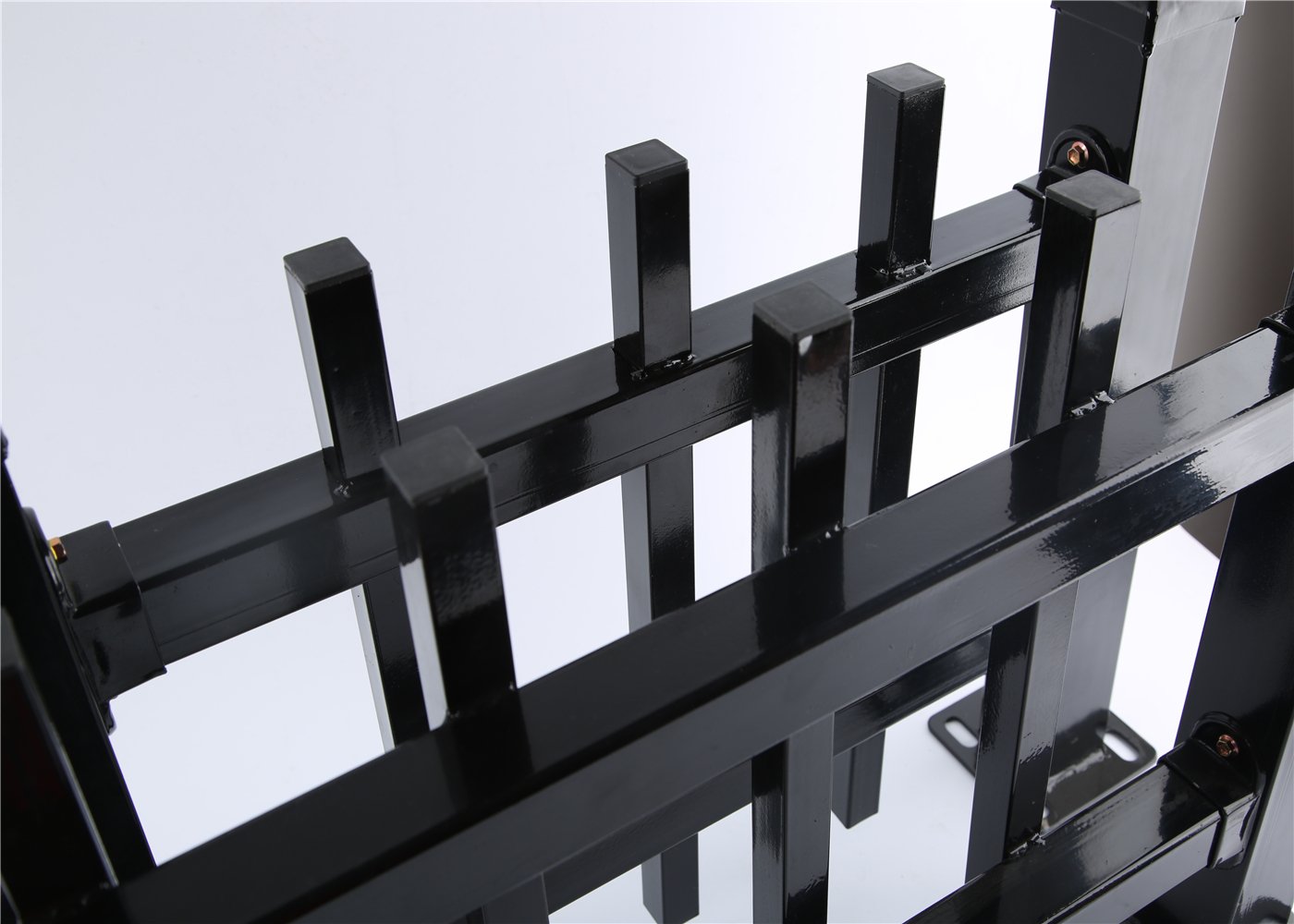

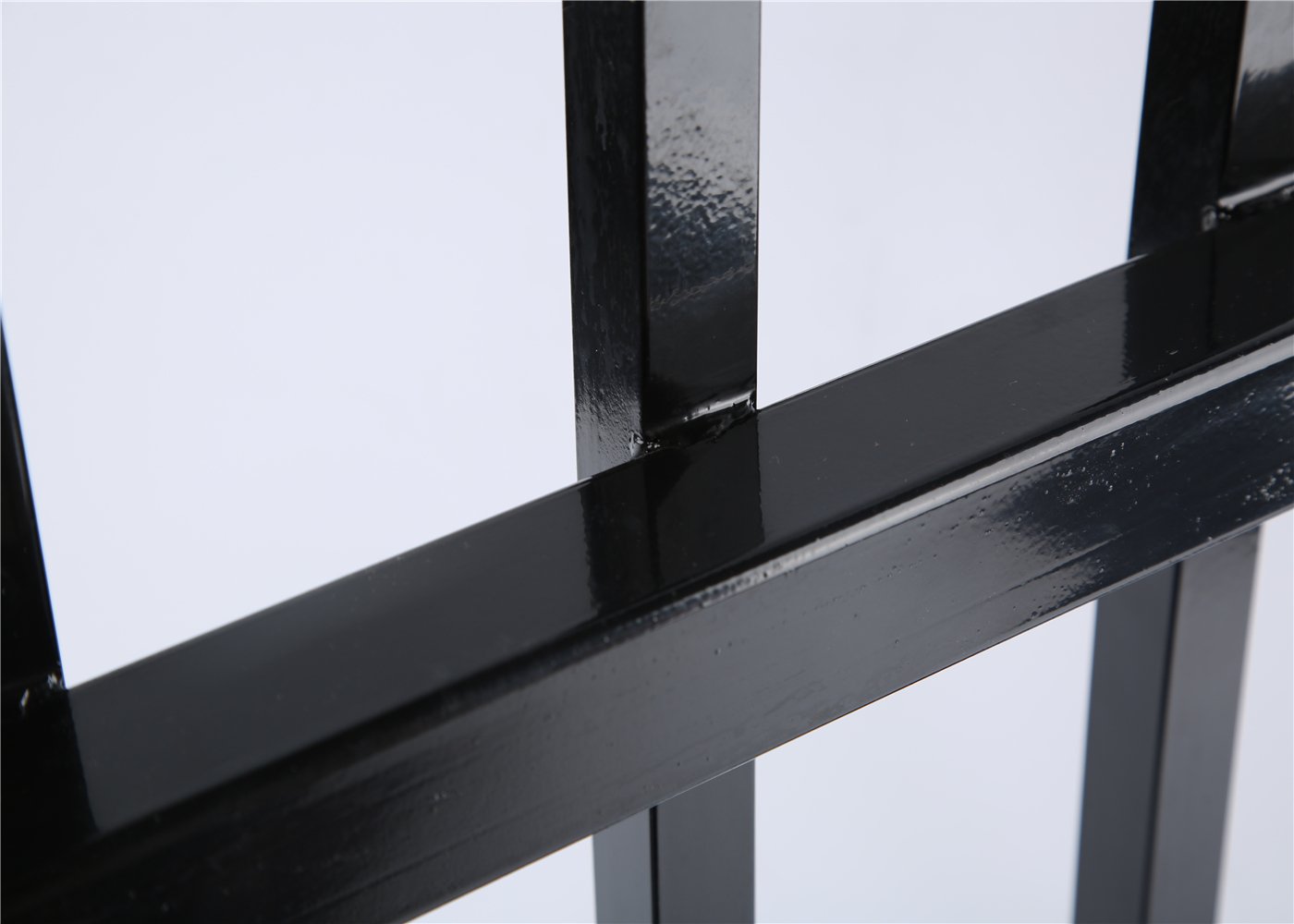

🔩 🔩 Face Welded vs Punched Rail Construction
| Feature | Face Welded | Punched Rails |
|---|---|---|
| Strength | High | Very High |
| Look | Sleek front weld | Clean inserted welds |
| Ideal For | Residential/Commercial | High Security/Industrial |
| Customization | Good | Very Good |
| Cost | Moderate | Moderate |
🏁 ✅ Conclusion: The BMP Standard in Garrison Security Fencing
BMP’s Garrison Security Fencing delivers not just physical protection but peace of mind. Whether you need anti-climb spear tops, safe flat tops, or special coatings for extreme environments, we’ve got you covered. With fully compliant standards, precise specifications, professional packaging, and proven durability, BMP stands as your go-to manufacturer for high-quality steel fencing.
📞 Contact us today to discuss your Garrison Security Fencing needs and request a formal quote!
