Home Crowd Control Barriers Crowd Control Barriers Manufacture: A Complete Range

    • Crowd Control Barriers Manufacture: A Complete Range

    • Frame Finishing: PVC Coated
    • Surface Treatment: Hot-Dipped Galvanized, or Painted, or Powder Coat
    • Weave Technique: Welded
    • Material: Aluminum
    • Infill Picket Thickness: 1.5mm, 1.2mm, 1.0mm, 0.8mm
    • Panel Height: 1.2m, 1.1m, 1.0m

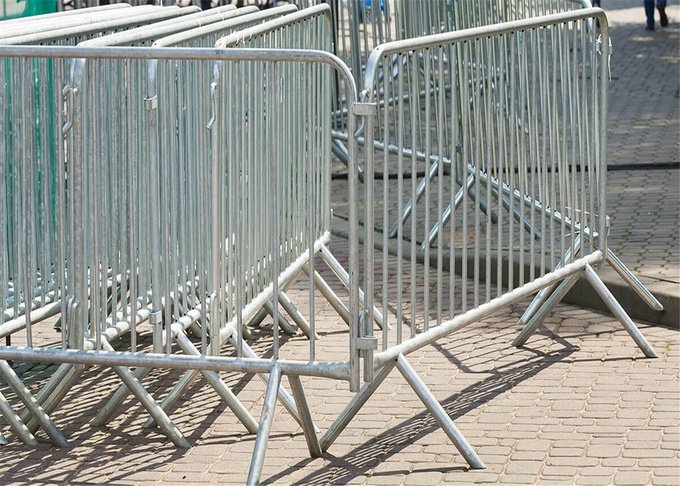

    • Feet: Detached Bridge Feet, Flat Base, Settled Type
    • Panel Length: 2.5m, 2.2m, 2.0m
    • Infill Pickets: 25mm, 20mm, 16mm, 12mm
    • Frame Tube Thickness: 2.0mm, 1.5mm, 1.2mm
    • Frame OD: 38mm, 32mm, 25mm, etc.
    • Transport Package: Pallet+Plastic Film Bag
    • Specification: Customized
    • Trademark: BMP
    • Origin: Hebie, China
    • HS Code: 7326209000
    • Production Capacity: 5000 Pieces/Month
    • Price Range: $16.72 - $39.12 per kit
    enquiry
    • Description

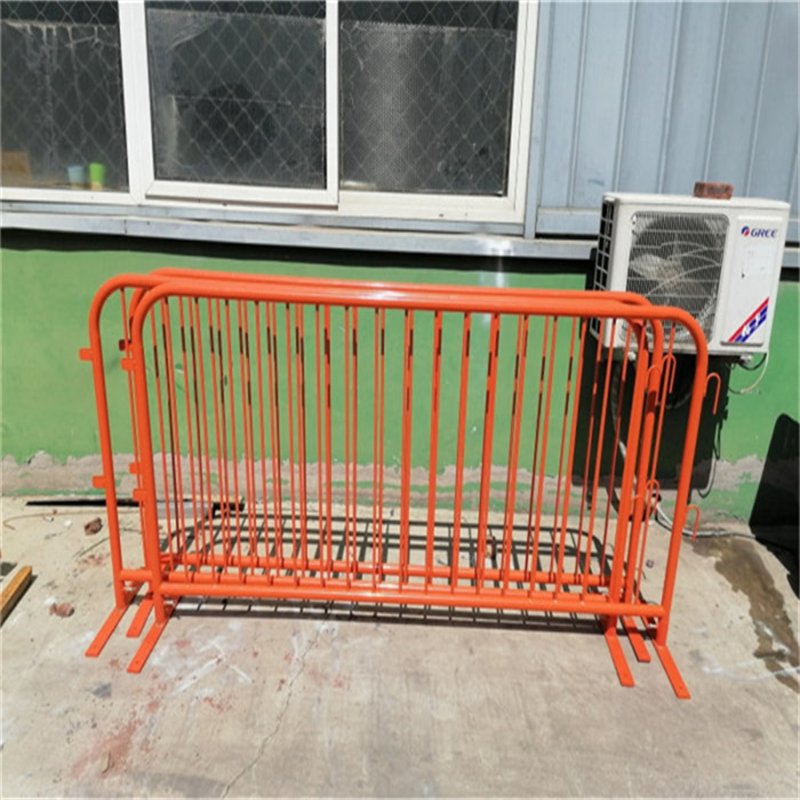

    crowd control barriers manufacture and supply a complete range of Steel Crowd Control Barriers / Pedestrian Barricades including Steel Flat Feet Crowd Control Barriers, Steel Claw Feet Crowd Control Barriers, Bridge Feet Crowd Control Barriers etc. Our crowd control barriers are hand-welded for strength have an easy interlocking system for installation. Our crowd control barriers are for sale as a galvanized finish and powder coated in a high-vis safety yellow. We can also manufacture custom colour powder-coated crowd control barriers – minimum order quantities may apply. Alongside this, we can offer printed shade cloth to increase branding at your event or on your mine site.

    Specification

    Material: Carbon steel pipes Q235

    Surface treatment: You can choose either hot dipped galvanized after welding or Powder coating.

    Specifications:

    • Panel sizes: Commonly used sizes are 1100x2100mm, 1100x2200mm, 1100x2500mm.
    • Frame pipes: Available in diameters of 20mm, 25mm (popular), 32mm, 40mm, 42mm, 48mm.
    • Infill pipes: Diameters include 14mm, 16mm, 20mm (popular), 25mm.
    • Thickness of pipe: Options are 1.0mm, 1.2mm, 1.5mm, 2.0mm.
    • Spacing: Choices are 60mm, 100mm, 190mm (popular), 200mm.
    • Feet: Comes with flat metal feet measuring 600x60x6mm.

    Features:

    1. Workers hot-dip galvanize the barriers after welding, applying more than 70 microns of zinc coating.
    2. These barriers withstand weather well, lasting more than ten years.
    3. They are lightweight and easy to manage but also strong.
    4. You can remove the feet, which simplifies transport and storage.

    Applications: Crowd control barriers work perfectly for managing pedestrians. They help ensure public safety and maintain order.

    Characteristic

    • Hand welded and 360 degrees welded for strength.
    • Hot dipped galvanized for longevity – more than 70 microns, can last for more than ten years.
    • Sturdy, lightweight frames are stacking or moving.
    • Easy interlocking system for fast installation
    • Removable/locking feet for stacking and storing ease
    • Flat foot design for avoiding trip hazards

    Hooks and Foot Of Crowd Control Barriers

    As an ODM and OEM crowd control barriers manufacturer, we are available to bridge foot and fixed foot as well flat steel foot among all of them, the flat steel foot is most popular

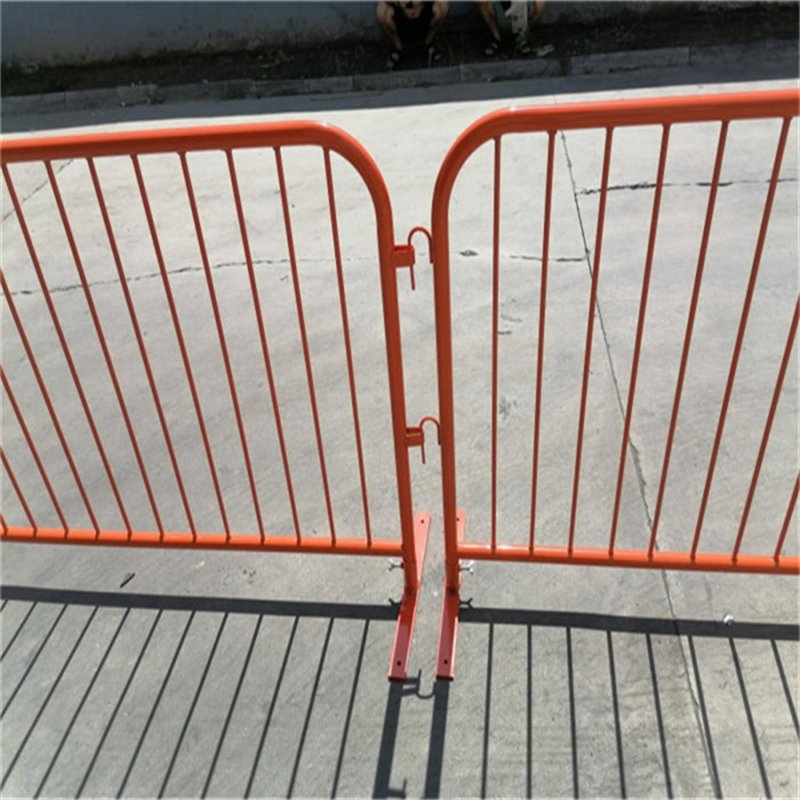

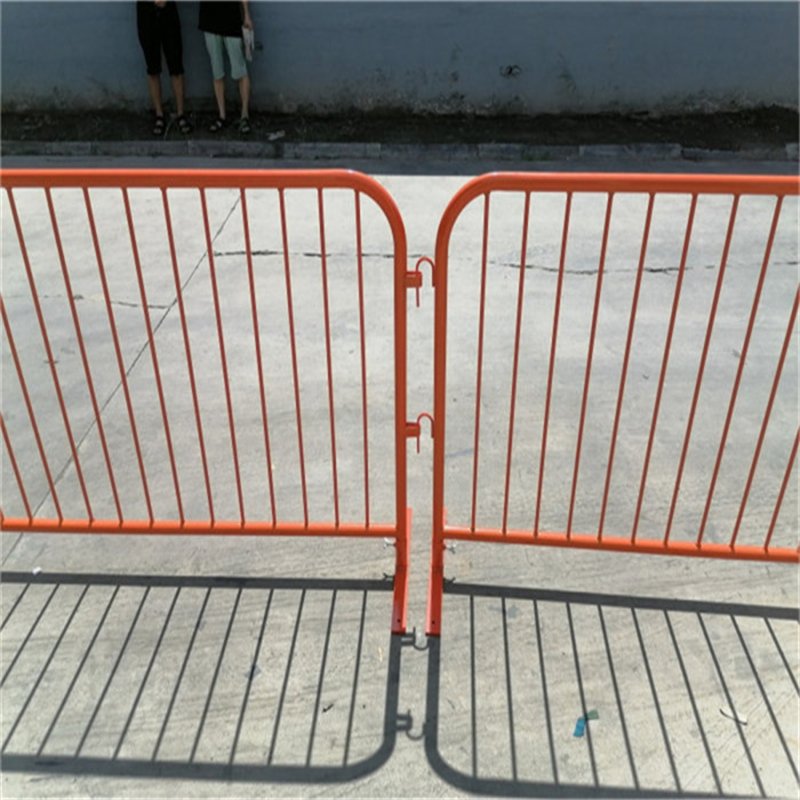

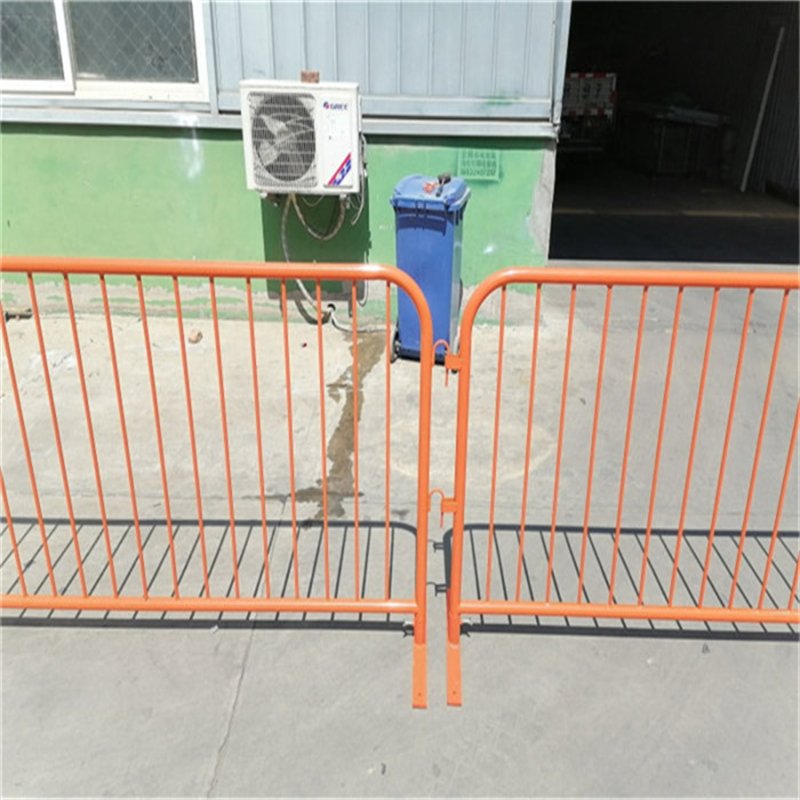

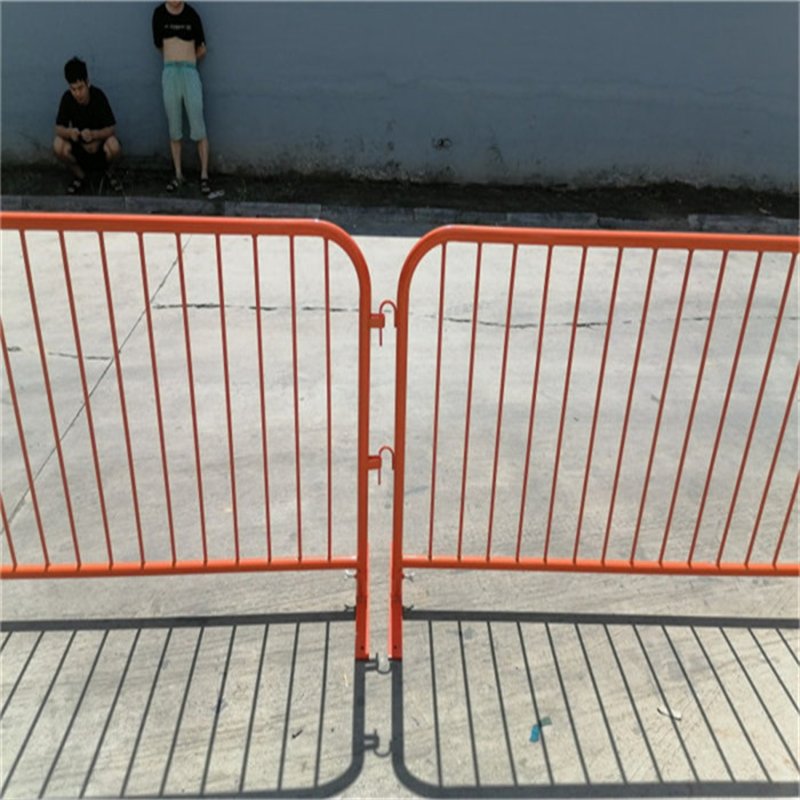

    Hooks: Crowd control barriers are designed to be linked by a strong hook. A hook bend creates a positive interlock that links the panels well.

    A male hook is usually made of a 5/8″ steel rod. The receptor is usually made of a 3/16″ by 1.5″ steel plate. They link the panels together.

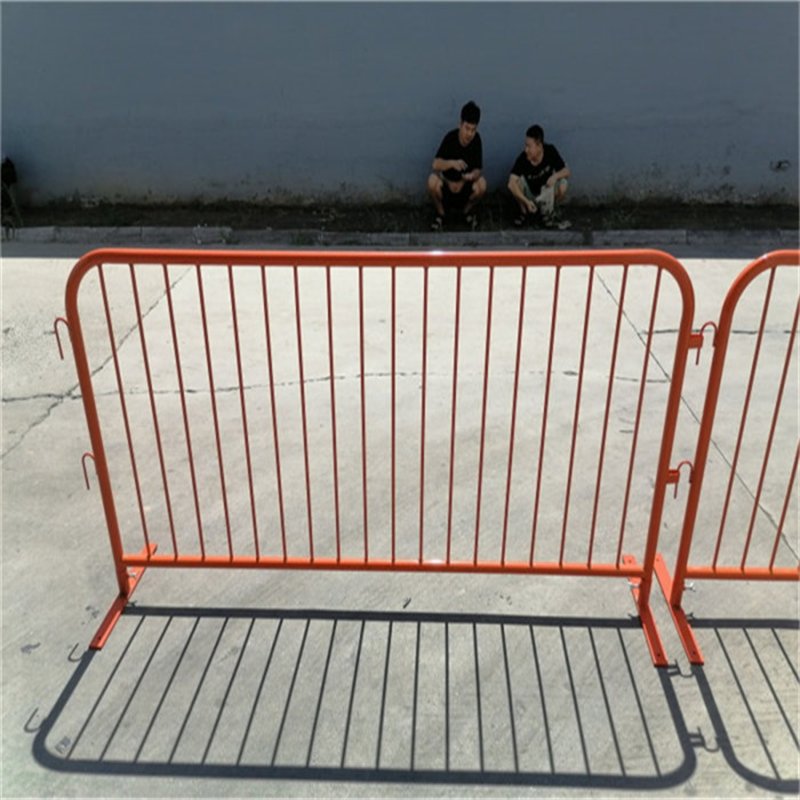

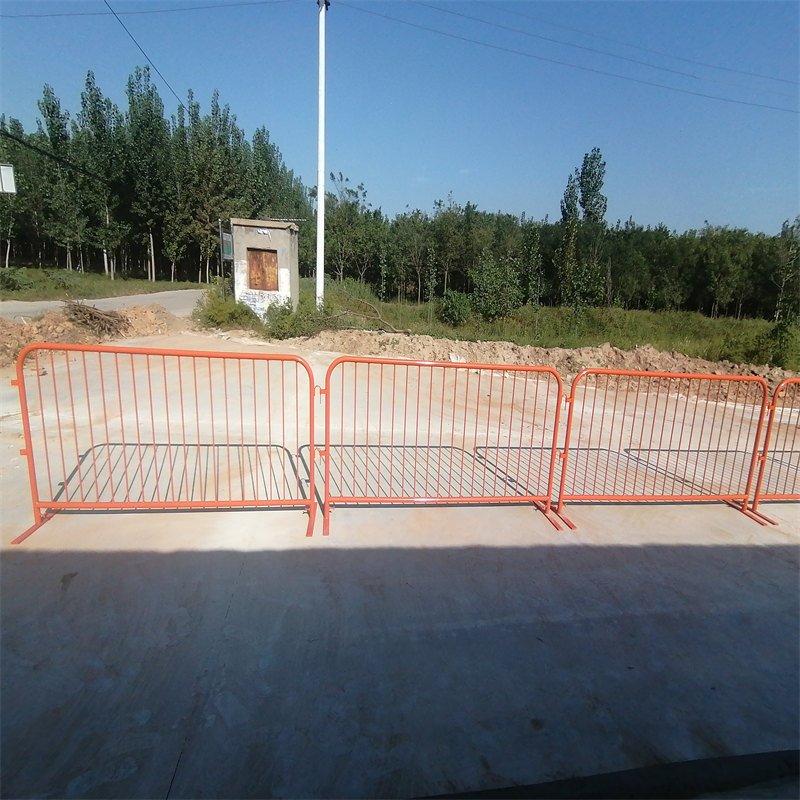

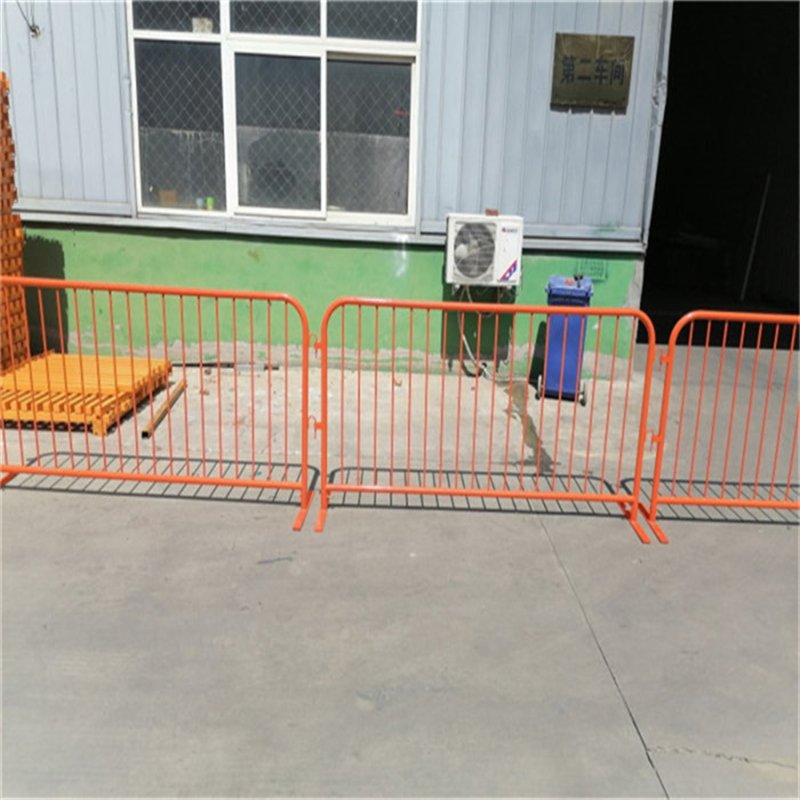

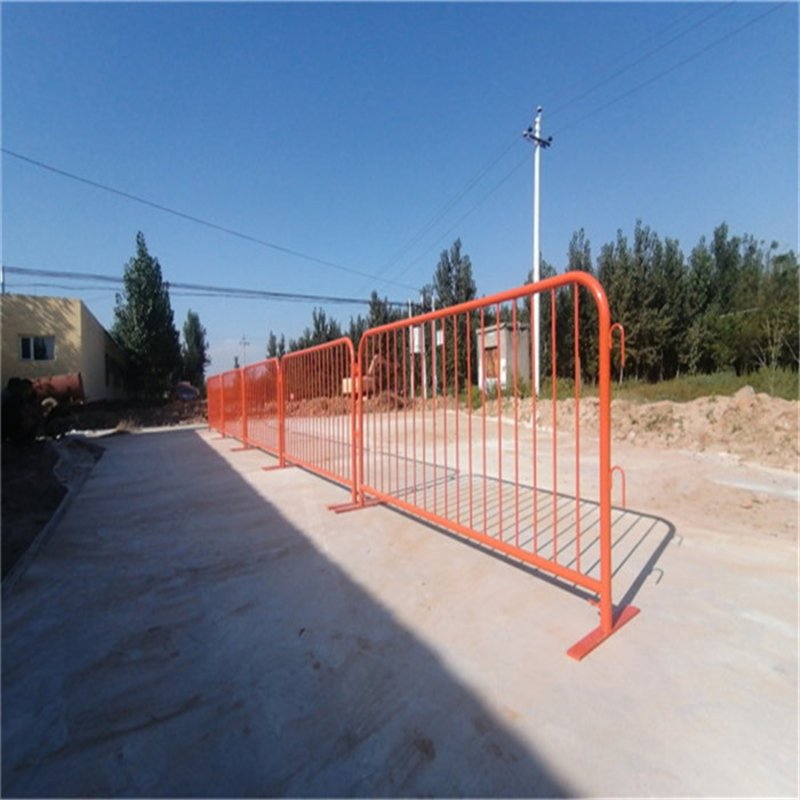

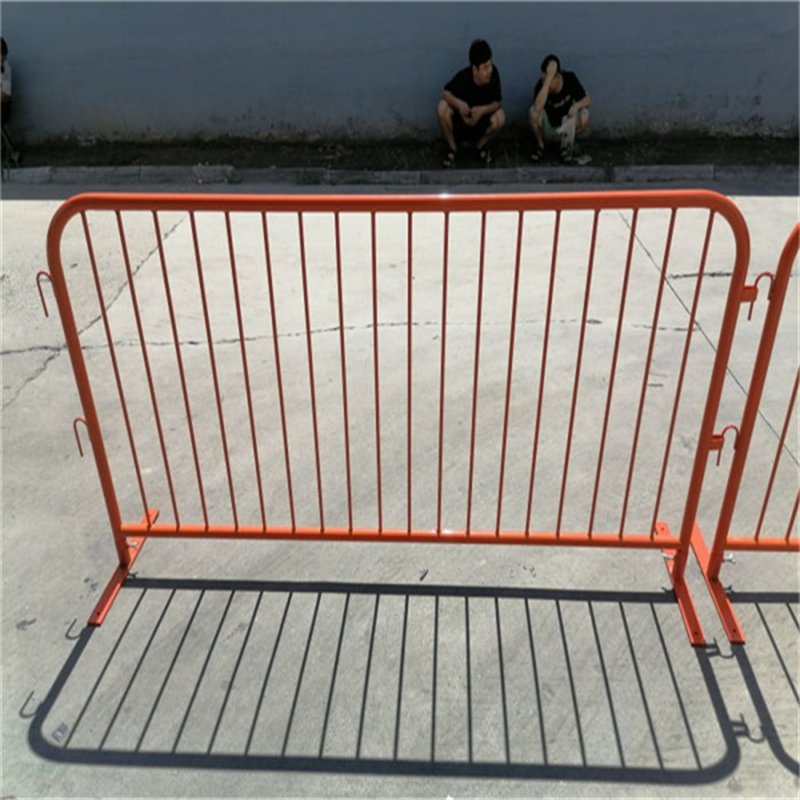

    Flat feet: 1–Barriers with a flat-style foot is the ideal choice at special events or venues that require funnelling crowds or traffic in parallel lines.

    2–The flat-foot design minimizes the tripping hazard, and vehicle tires roll easily over the foot without damage to the barricade.

    3–The flat foot distributes weight evenly, and rubber grommets provide added protection for sensitive floors. Two holes in each foot allow it to be anchored to the ground. Measures 8’6″ x 43″ and weighs 57 lbs.

    crowd control barriers manufacture Process:

    • A) iron tube + cut + bend + punch + polish + weld + polish + hot galvanized
    • B) hot galvanized tube + cut + bend + punch + polish + weld + polish + paint (weld point)

    Package Crowd Control Barriers

    • Bubble wrap at the bottom of the pallet can protect the last barrier
    • The small piece of carton paper between every two barriers to prevent rubbing against each other
    • Carton paper under the pacing belt

    Our Services

    • 1.No matter what FOB or CIF the price term is, as a crowd control barriers manufacturer, we would try our best to find the lowest freight cost for customers’ reference.
    • 2. The third-party inspection always gets accurate and authentic data from us, and we will send production photos to customers if there is no inspection.
    • 3. Do our best to help customers arrange the shipment and customs clearance.
    • 4. Installation, maintenance and repair instructions with complete information.
    • 5.3-8 years warranty depends on different products.
    • 6. As a crowd control barriers manufacturer, we Accept Changing or Refunding if the products can not be installed rightly.
