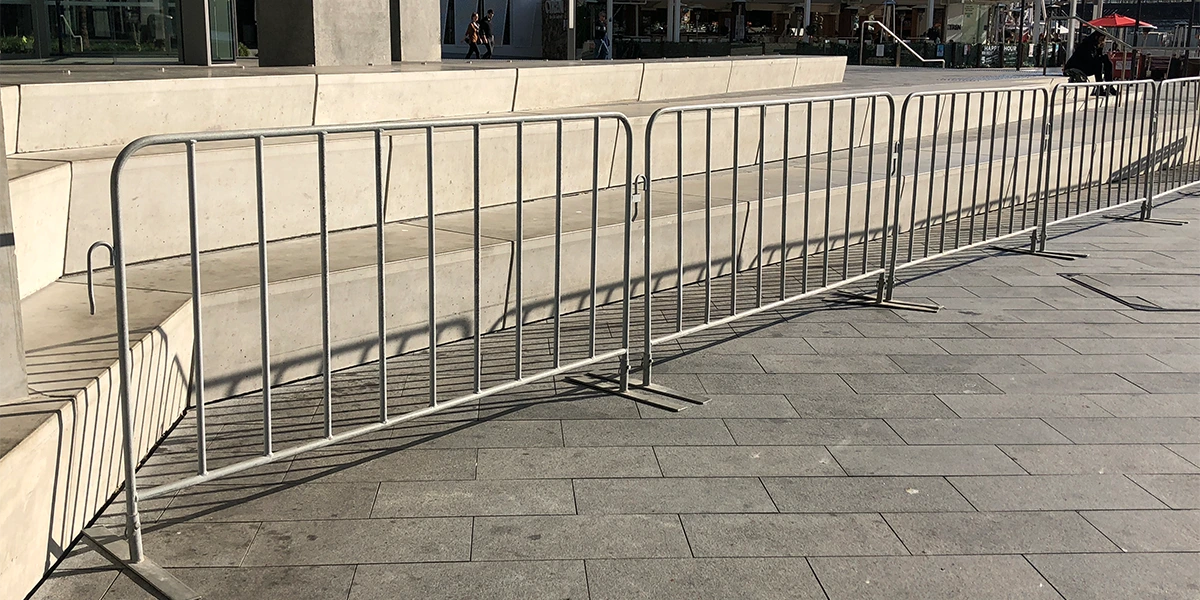

BMP’s outdoor temporary crowd control barriers are engineered for commercial and industrial use where reliable separation, access control, and pedestrian safety are critical. The lightweight, easy-to-move design allows fast reconfiguration as site conditions change. Barriers interlock to form secure runs, then disconnect just as easily for compact transport and storage.
This model performs the same function as our Fixed-Leg Crowd Control Barrier; the difference is the removable foot style detailed below.

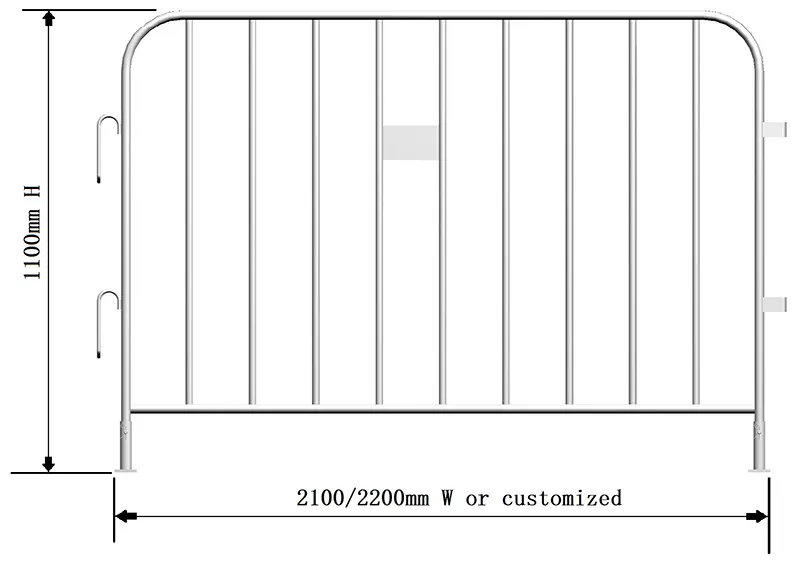

Specification | Option A | Option B |
---|---|---|
Panel Size (mm) | 2100 W × 1100 H | 2200 W × 1100 H |
Frame Tube (mm) | Ø25 × 1.5 | Ø25 × 1.5 |
Vertical Pickets (mm) | Ø20 × 1.0 | Ø20 × 1.0 |
No. of Vertical Pickets | 9 | 10 |
Finish Options | Galvanized tube • Hot-dip galvanized (post-weld) • Powder-coated |
Component | Detail |
---|---|
Foot Plate (mm) | 500 × 60 × 6 |
Post (mm) | Ø12 × 146 |
Overall (mm) | 500 × 60 × 146 |
Finish | Hot-dip galvanized; optional powder-coat |
Note: Flat feet are standard for this model. Bridge feet available on request.

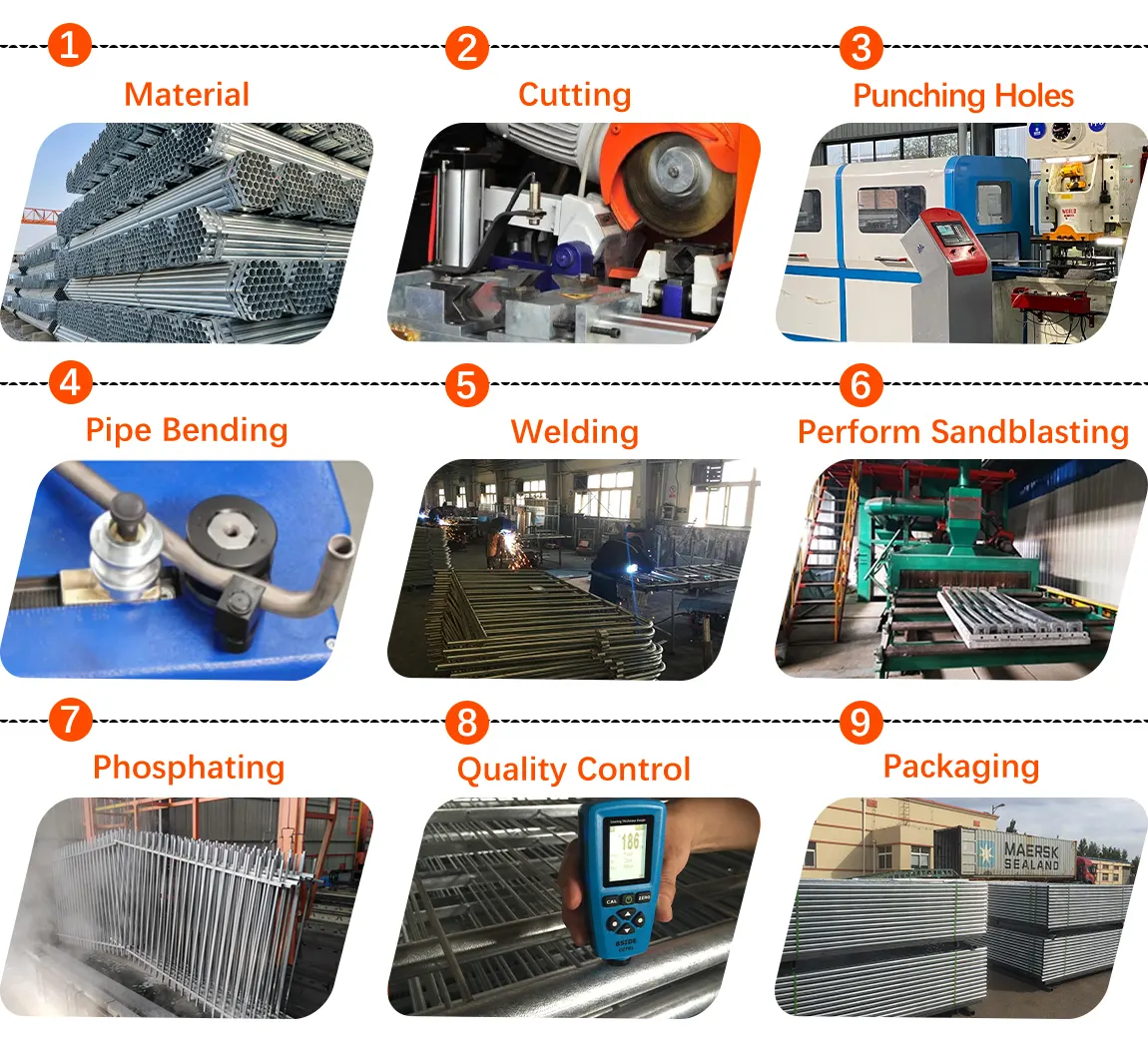

Material selection → Cutting → Punching → Bending → Precision welding → Sandblasting → Phosphating → Hot-dip galvanizing / Powder coating → QC → Packaging
Every unit is inspected for weld integrity, wall thickness, and coating thickness to ensure consistent quality.
How do the barriers connect?

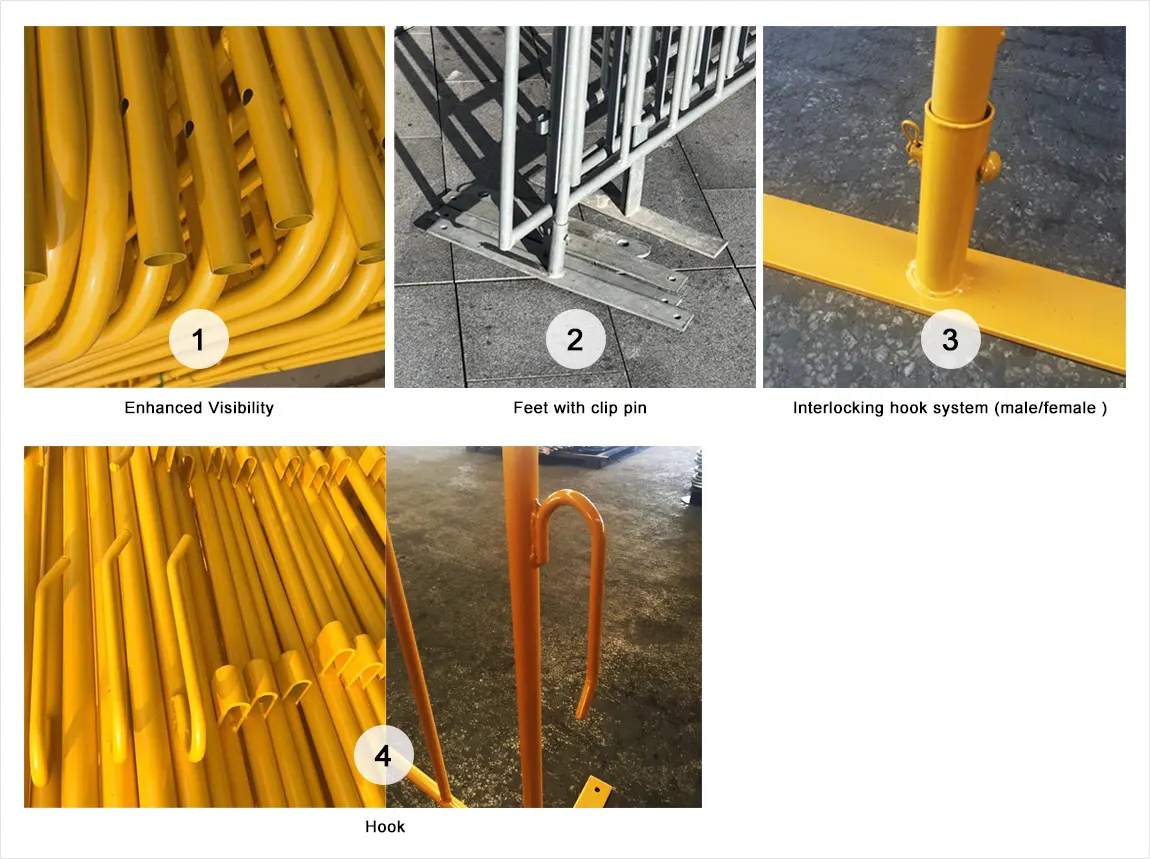

Each panel uses a male/female interlocking hook system. Drop the hooks on the right into the loops on the left of the previous panel. To separate, uncouple from the end of the run.
Are they suitable for outdoor use?
Yes. Post-weld hot-dip galvanizing—and optional powder coating—provides long-term resistance to rain, wind, and general exposure.
Can BMP add my logo or brand colour?
Absolutely. We offer colour powder coating and custom logo/ID branding.
What are typical lead times?
Lead times depend on quantity and custom finishes. Share your specs and delivery window and we’ll quote firm production and shipping dates.
How do I order?
Tell us the quantity, panel size, foot type (flat or bridge), finish (HDG and/or powder coat colour), and any branding. BMP will provide a formal quotation and logistics plan.
