Crowd Control Barriers

Home Crowd Control Barriers Steel Crowd Control Barriers

    • Steel Crowd Control Barriers

    • Post Fixation: Removable Feet
    • Degree of Distortion: Rigid Barrier
    • Panel Size: 1X2.2m / 1.1X2.1m / 1.1X2.2m / 1.1X2.5m, etc.
    • Frame Pipe: 20mm / 25mm / 32mm / 38mm / 42mm
    • Infill Tube: 12mm, 16mm, 20mm, 25mm O.D.
    • Pipe Wall Thickness: 1.0mm, 1.2mm, 1.5mm, 2.0mm
    • Powder Color: Yellow, Red, White, Black, Green, Orange
    • Quality Guarantee: 15 Years
    • Application: Secure Construction Sites, Private Major Public Events
    • Place of Origin: Hebei, China
    • OEM: Accept
    • Brand: Yishuo
    • Surface Treatment: Hot Dipped Galvanized or Powder Coated
    • Market: American, Europe, Australia
    • Production Capacity: 5000 Sets/Month
    • Price: $23.99 - $49.13 per kit
    enquiry
    • Description

    BMP Steel crowd control barriers – The Perfect Choice for Premium and Durable Crowd Control

    BMP’s steel crowd control barriers offer the ideal solution for high-quality, attractive, and durable crowd control. We design these barriers to meet proven standards, using premium carbon steel that resists weather with hot-dipped galvanization inside and out.

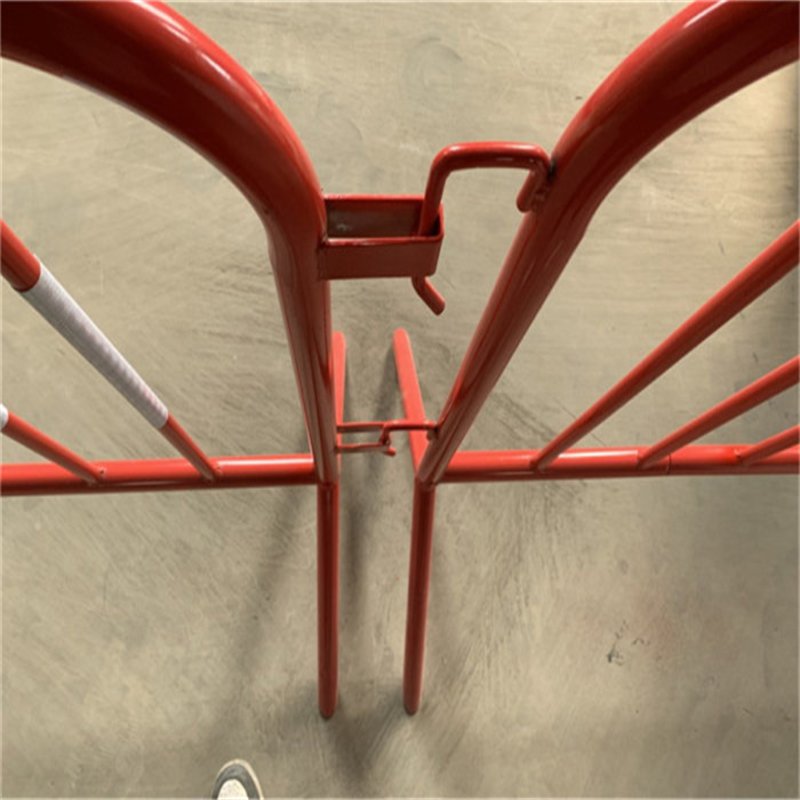

    Our team builds each barrier frame from strong 1-1/2″ OD 16-gauge steel, with uprights made from 1/2″ OD 16-gauge steel tubing. We insert the uprights fully into the frame before welding, giving the barriers exceptional strength. You can choose between two foot options: a detachable bridge foot or a detachable flat foot. The barriers interlock securely using the industry-standard hook and half-loop system, ensuring that once connected, no single barrier can be easily removed from the line.

    The BMP Steel Barricade stands out as our best-selling steel crowd control barrier, offering both durability and reliability for any event or situation.

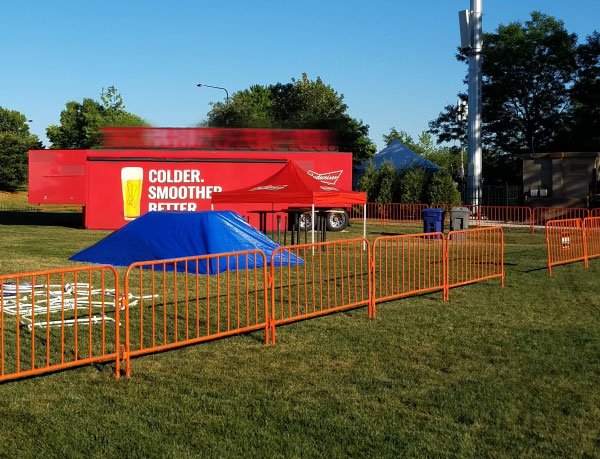

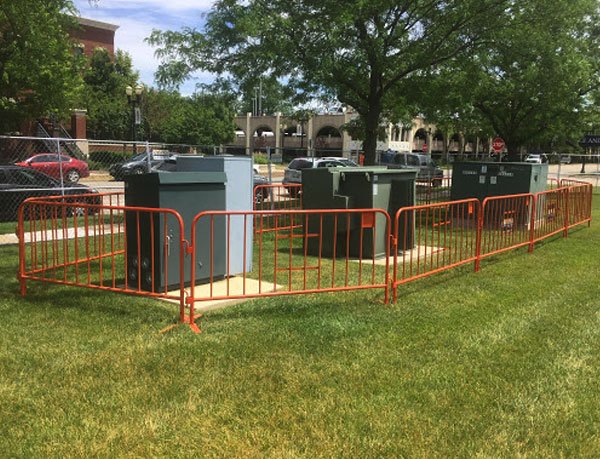

    5e79845f21cea 5e79848fbe77e

    Feet Optional of Crowd Control Barriers

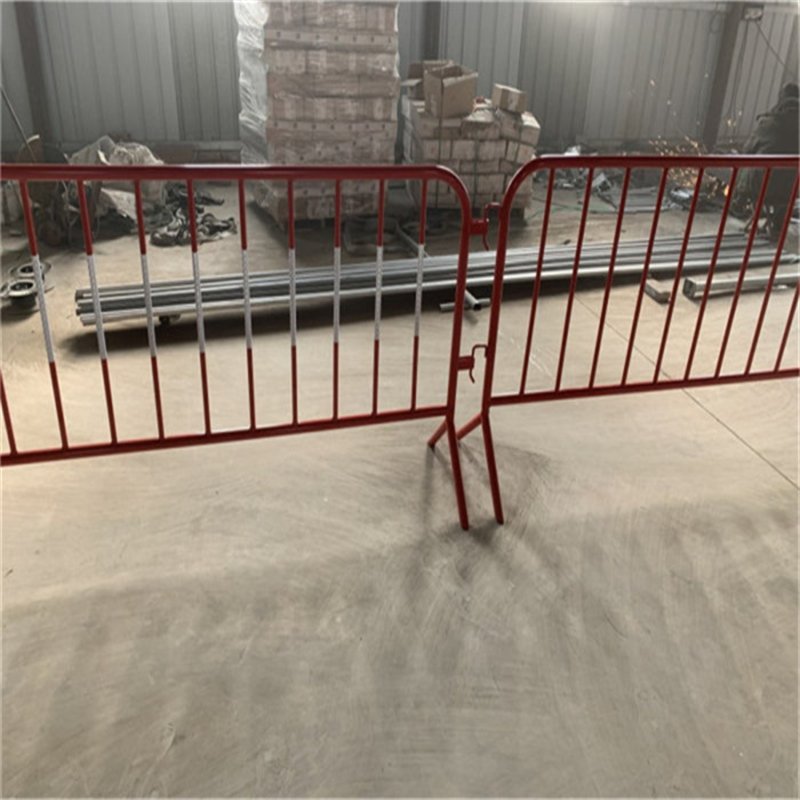

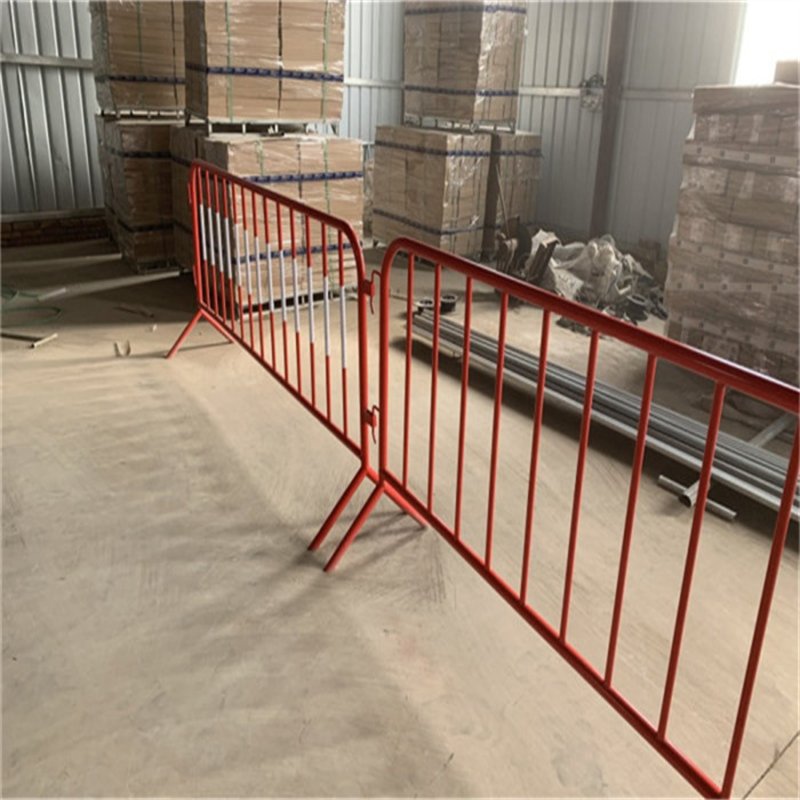

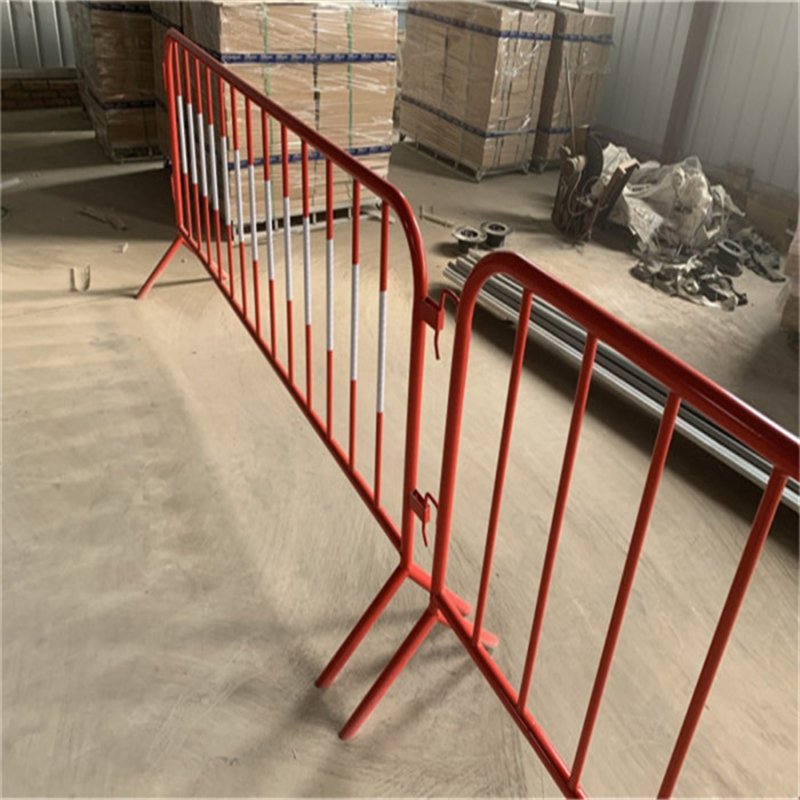

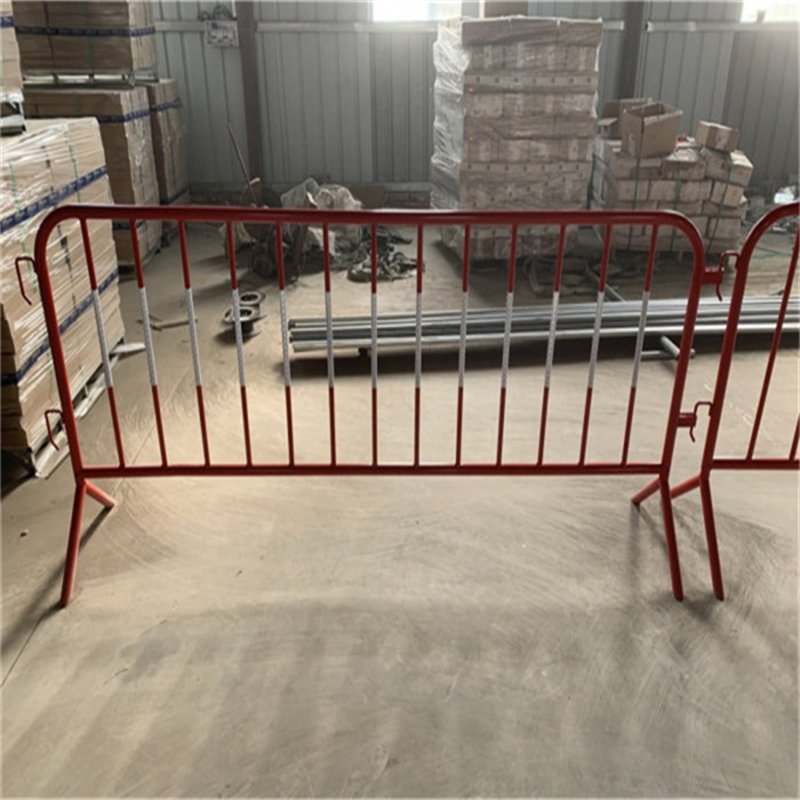

    steel crowd control barriers are a kind of temporary fencing for designated events, which can provide security concerning patrons and the general public. Crowd control barricade panels interlock one another along with hook and loop. The barricade fencing panel can certainly stand on the floor with three types of feet: flat feet, crossed feet, and removable bridge feet. These feet are hassle-free and eco-friendly because they can be installed well without drilling or excavating holes.

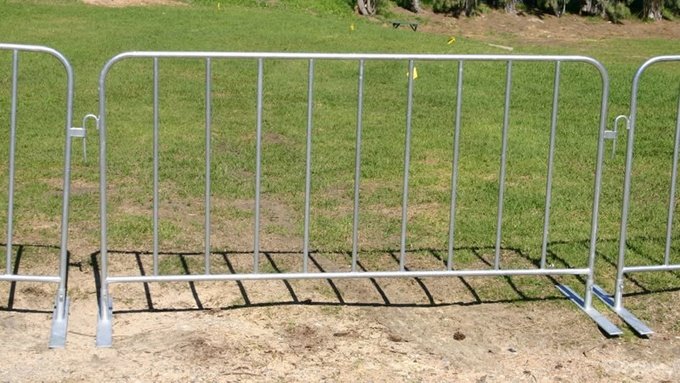

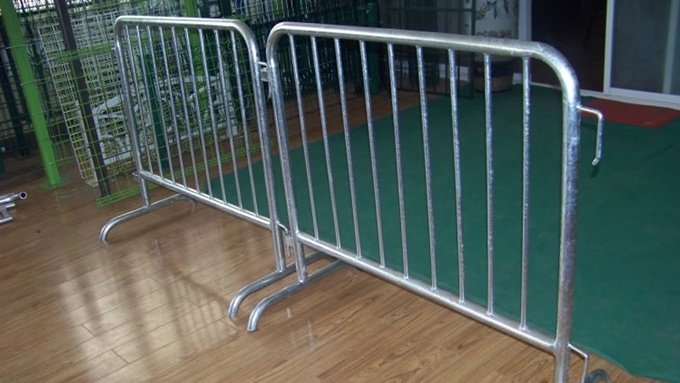

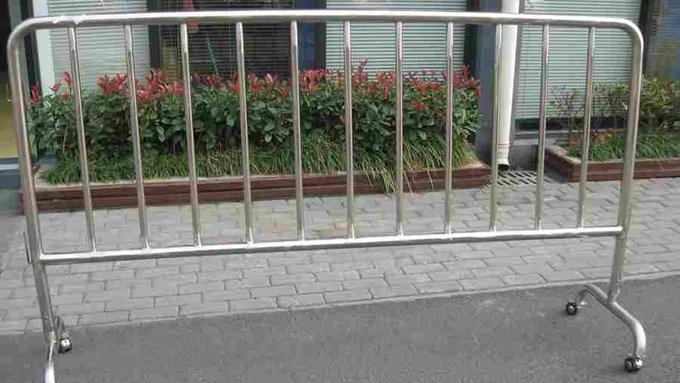

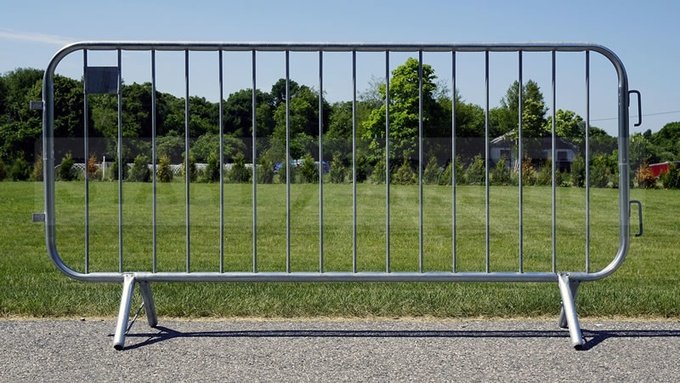

    Crowd control barrier with flat metal feet. Cross Foot Bridge Foot bridge feet and wheels.
    20230328115536734 20230328115537580 20230328115544621 20230328115552360

    Features steel crowd control barriers :

    • Good strength and stability.
    • Easy to install and dismantle. Require no drilling or digging.
    • Reusable and long service time.
    • More practical and efficient.
    • Rent and purchase are all available.
    • Have different types, sizes and colours.
    • The barrier fence length is flexible for different sites.

    Applications

    With so many benefits, the steel crowd control barriers provide security for people in various situations.

    • Create a specific space for public events for safety and security, this type of as outdoor celebrations, concerts, sporting activities events, and many more.
    • Assist folks to escape smoothly in many emergencies.
    • Serving as a bike barrier at the curbside.
    • Safety signage for some dangerous places.
    • Security barrier here at the building sites.
    • Considering the aisle barrier of the exit in parks, stations and other public places.
    • Temporary isolation or separation in some places, like a parking lot, exhibitions, etc.

    Specifications of Steel Crowd Control Barriers

    Panel Length Panel Height Frame Tube Inner Tube Inner Tube Distance Feet Options
    6.5′ 36″, 40″, 47″, 60″ Φ38×1.5mm, Φ38×1.8mm, Φ38×2mm Φ12×1.2mm, Φ12×1.5mm, Φ16×1.5mm 110mm, 120mm, 150mm Flat Feet: 50x580x6 mm
    7.0′ 36″, 40″, 47″, 60″ Φ38×1.5mm, Φ38×1.8mm, Φ38×2mm Φ12×1.2mm, Φ12×1.5mm, Φ16×1.5mm 110mm, 120mm, 150mm Bridge Feet: Length x Width: 67.5x50cm
    7.5′ 36″, 40″, 47″, 60″ Φ38×1.5mm, Φ38×1.8mm, Φ38×2mm Φ12×1.2mm, Φ12×1.5mm, Φ16×1.5mm 110mm, 120mm, 150mm V-Shape Feet: Height: 270mm
    8.0′ 36″, 40″, 47″, 60″ Φ38×1.5mm, Φ38×1.8mm, Φ38×2mm Φ12×1.2mm, Φ12×1.5mm, Φ16×1.5mm 110mm, 120mm, 150mm
    8.5′ 36″, 40″, 47″, 60″ Φ38×1.5mm, Φ38×1.8mm, Φ38×2mm Φ12×1.2mm, Φ12×1.5mm, Φ16×1.5mm 110mm, 120mm, 150mm

    Surface Treatment Options

    1. Hot-Dipped Galvanized Wire and Tube Welded:
      • In this treatment, both the wire and tube are first welded together and then hot-dipped in molten zinc. This process creates a robust protective coating that prevents rust and corrosion, ensuring the barriers can withstand harsh outdoor conditions and have a long lifespan.
    2. PVC Coated After Galvanized Wire and Tube Welded:
      • This method involves welding galvanized wire and tube together before applying a PVC coating. The galvanized layer provides initial protection against rust, while the PVC coating adds an extra layer of durability and enhances the appearance of the barriers. This option is ideal for environments where both aesthetic appeal and corrosion resistance are important.
    3. Hot-Dipped Galvanized After Black Wire and Tube Welded:
      • Here, the wire and tube are welded in their black (non-galvanized) state, and then the entire assembly is hot-dipped galvanized. This process ensures that even the welded areas are thoroughly coated with zinc, providing comprehensive corrosion protection and significantly extending the barriers’ service life.

    Specifications of Australia

    Specification Details
    Item Name Steel Crowd Control Barriers
    Panel Size 1.1m x 2.1m, 1.1m x 2.2m, 1.1m x 2.5m, customized sizes supported
    Frame Tube Diameter 25mm, 32mm, 38mm, 42mm, 48mm
    Frame Thickness 1.5mm, 1.8mm, 2.0mm
    Vertical Bar Diameter 16mm, 20mm, 8mm, 6mm
    Vertical Bar Thickness 1.0mm, 1.2mm, 1.5mm
    Vertical Bar Spacing 60mm, 100mm, 120mm, 190mm, 200mm
    Base Styles Flat, Bridge, Triangle
    Welding Technology Picket inserted into frame before welding, saddle cut welded frame for greater strength
    Surface Treatment Multi-layer protection powder coated
    Color Various colors available

    Features

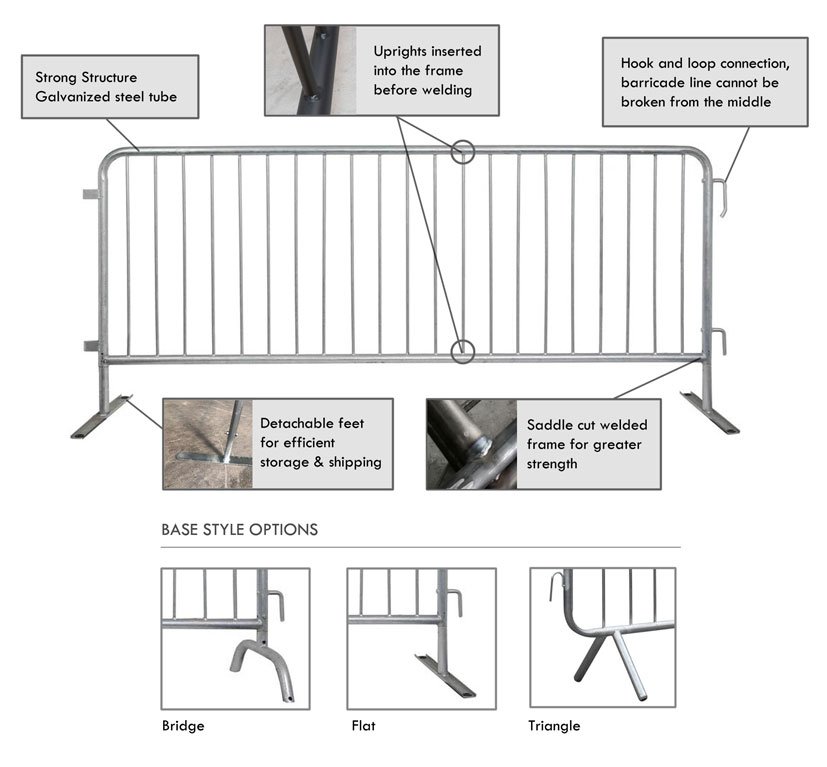

    5e7b263e0c096

    Robust Structure and Material

    The crowd control barriers feature a strong structure made from galvanized steel tubing, ensuring durability and resistance to rust and corrosion. The vertical uprights are securely inserted into the frame before welding, enhancing the overall strength and stability of the barriers.

    Secure Interlocking System

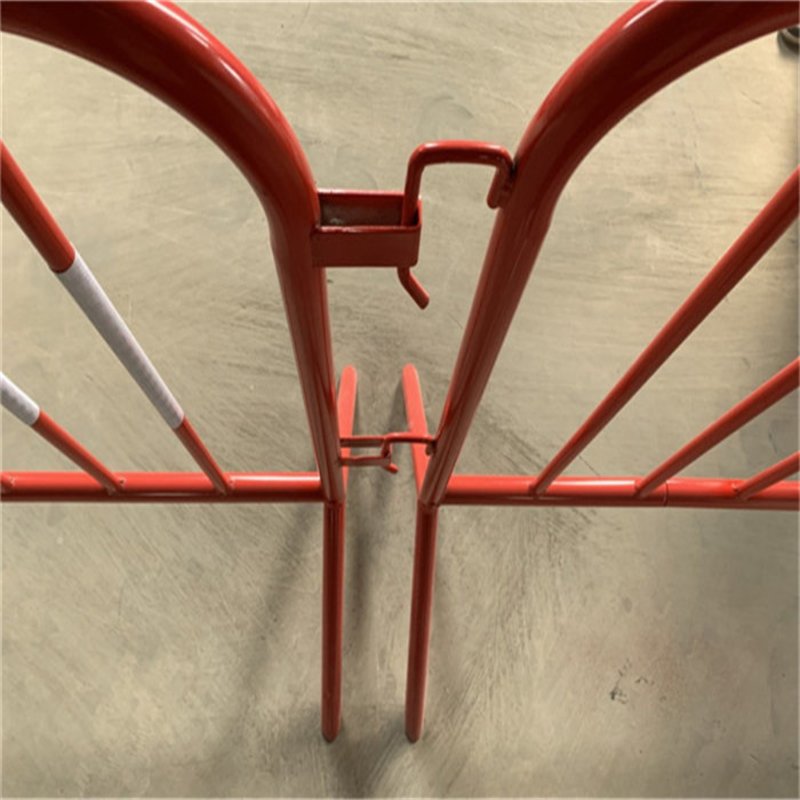

    With a hook and loop connection system, these barriers interlock securely, maintaining a continuous, unbroken line of defense. This connection system is designed to prevent the barriers from being separated, even under pressure.

    Easy Storage and Transportation

    For ease of storage and transportation, the barriers come with detachable feet. This allows for compact stacking, reducing space requirements and making them easier to handle during shipping.

    Enhanced Frame Strength

    The frame is welded using a saddle cut technique, adding to its strength and durability. This ensures the barriers can withstand significant force without compromising their integrity.

    Versatile Base Options

    The barriers offer versatile base style options, including bridge, flat, and triangle bases. The bridge base provides stability on uneven surfaces, the flat base minimizes tripping hazards, and the triangle base offers a balance of stability and low profile, making these barriers suitable for various environments and applications.

    PRODUCTION PROCESS

    5e79b5bf63368 5e577aa7a25e8

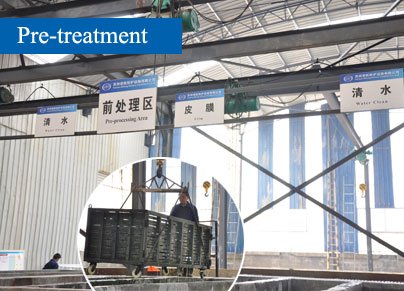

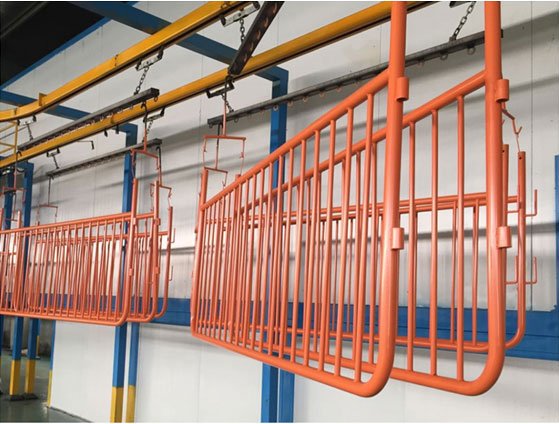

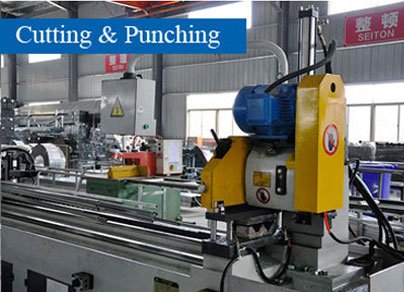

    1.High Precision Cutting, Punching & Drilling: We use automated machines to cut, punch, and drill the steel with high precision, ensuring consistent quality in every barrier. 2.Zinc-Rich Phosphating Pre-Treatment: We apply a zinc-rich phosphating treatment to the steel before coating. This step helps the Powder coating stick better and last longer.
    5e7dcd7a7faba 5e7dcc2175ace

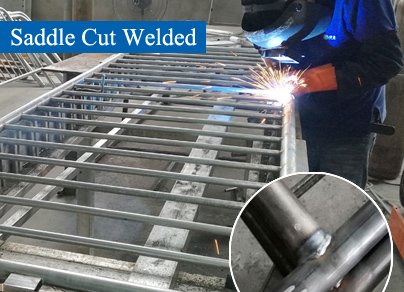

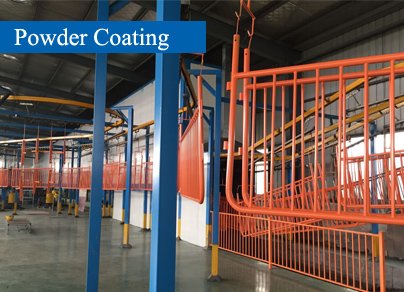

    3.Strong Saddle Cut Welded Frame: The frames are saddle cut and welded to increase strength, providing reliable stability for crowd control. 4.Durable AkzoNobel Powder Coating: We coat the steel with multiple layers of AkzoNobel powder, offering strong protection against rust, weather, and wear.
    5e7dcc127ed0a 5e7970318dac6

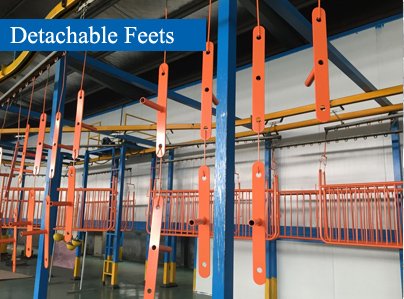

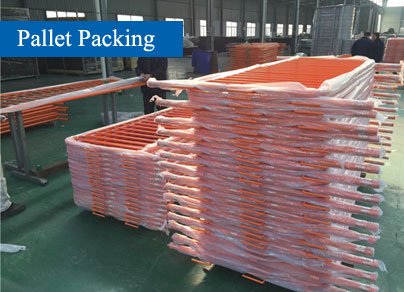

    5.Detachable Feet for Easy Transport and Storage: The feet of the barriers detach easily, making them convenient to transport and store, saving you space and effort. 6.Protective Pallet Packing: We pack the barriers on pallets with plastic or bubble cushioning to protect them during transport, ensuring they arrive in great condition.

    BMP Steel Crowd Control Barriers – Quality You Can Trust

    The detachable feet design of BMP’s steel crowd control barriers maximizes space usage during transportation and storage, making them highly efficient and easy to manage.

    BMP has earned an excellent reputation in both the American and Australian markets. The quality of our delivered fencing is so reliable that it could encircle the globe. We value every opportunity to work with our existing and new clients, consistently ensuring top-quality products and outstanding service.

    BMP committed to providing consistent quality, and we invite professional partners to join us in developing and expanding the global market, tailoring our products to meet local styles and specifications. We welcome your inquiries and look forward to successful collaborations.

    5e79d2ae54295 5e79d2b665f1f
    5e79d2c3157e0
