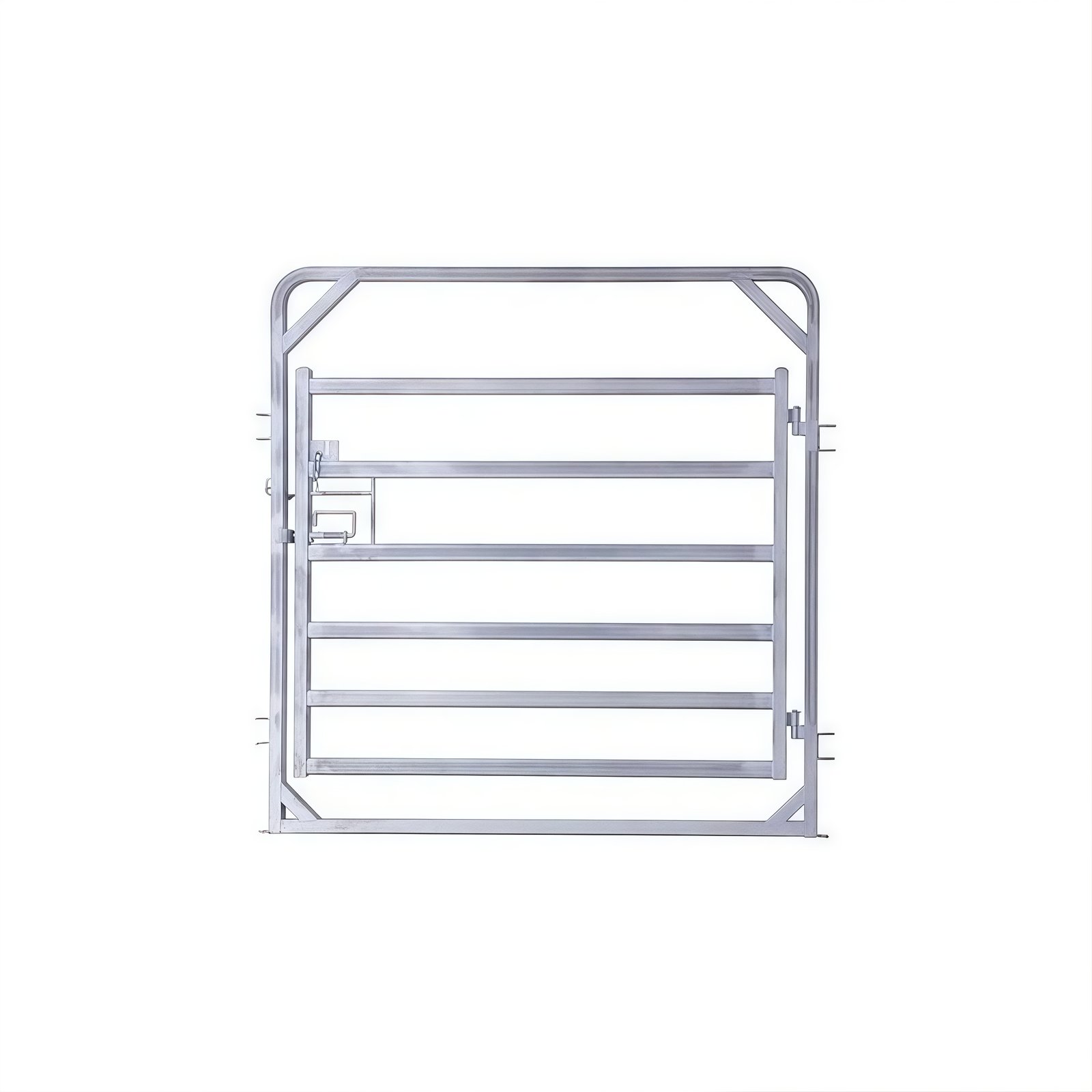

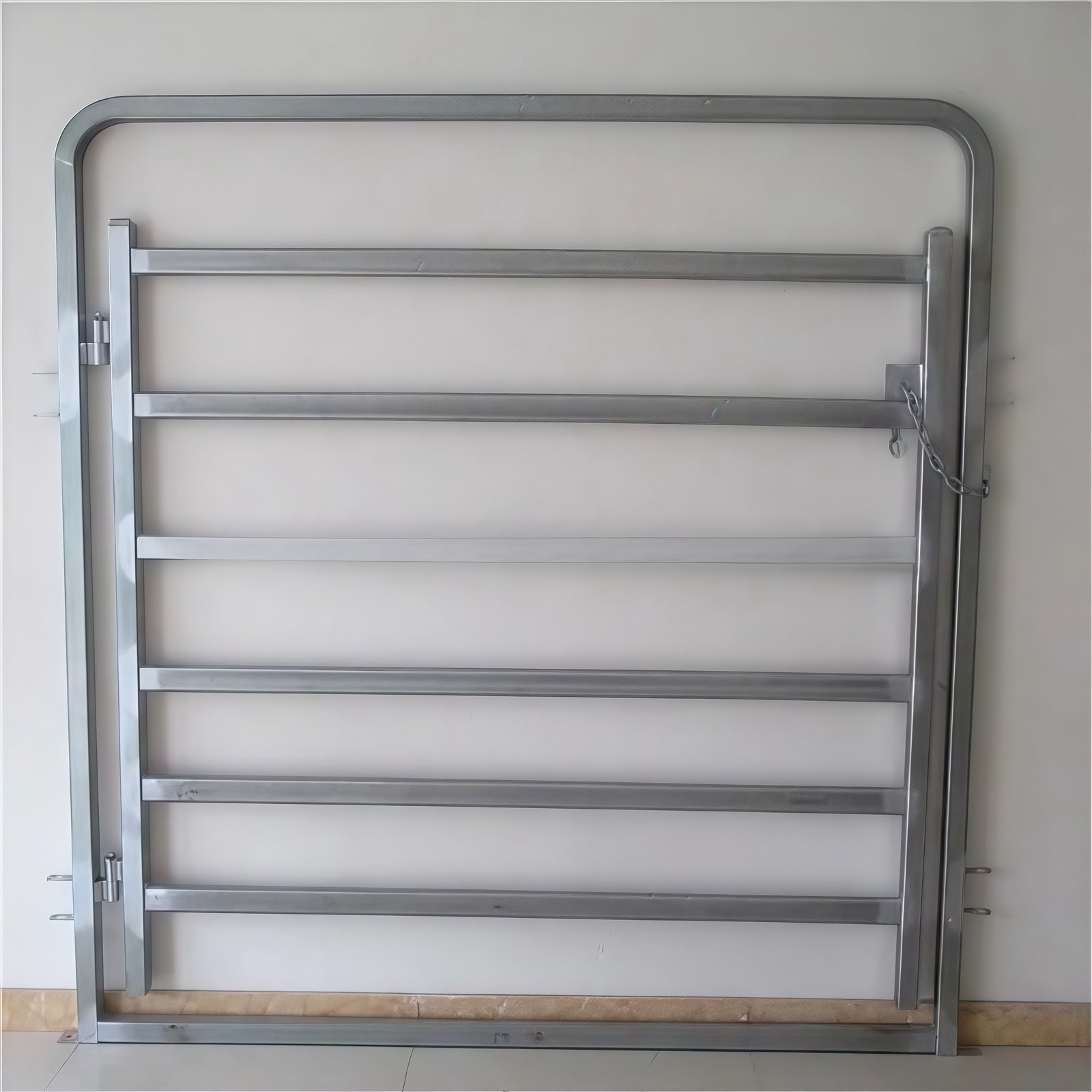

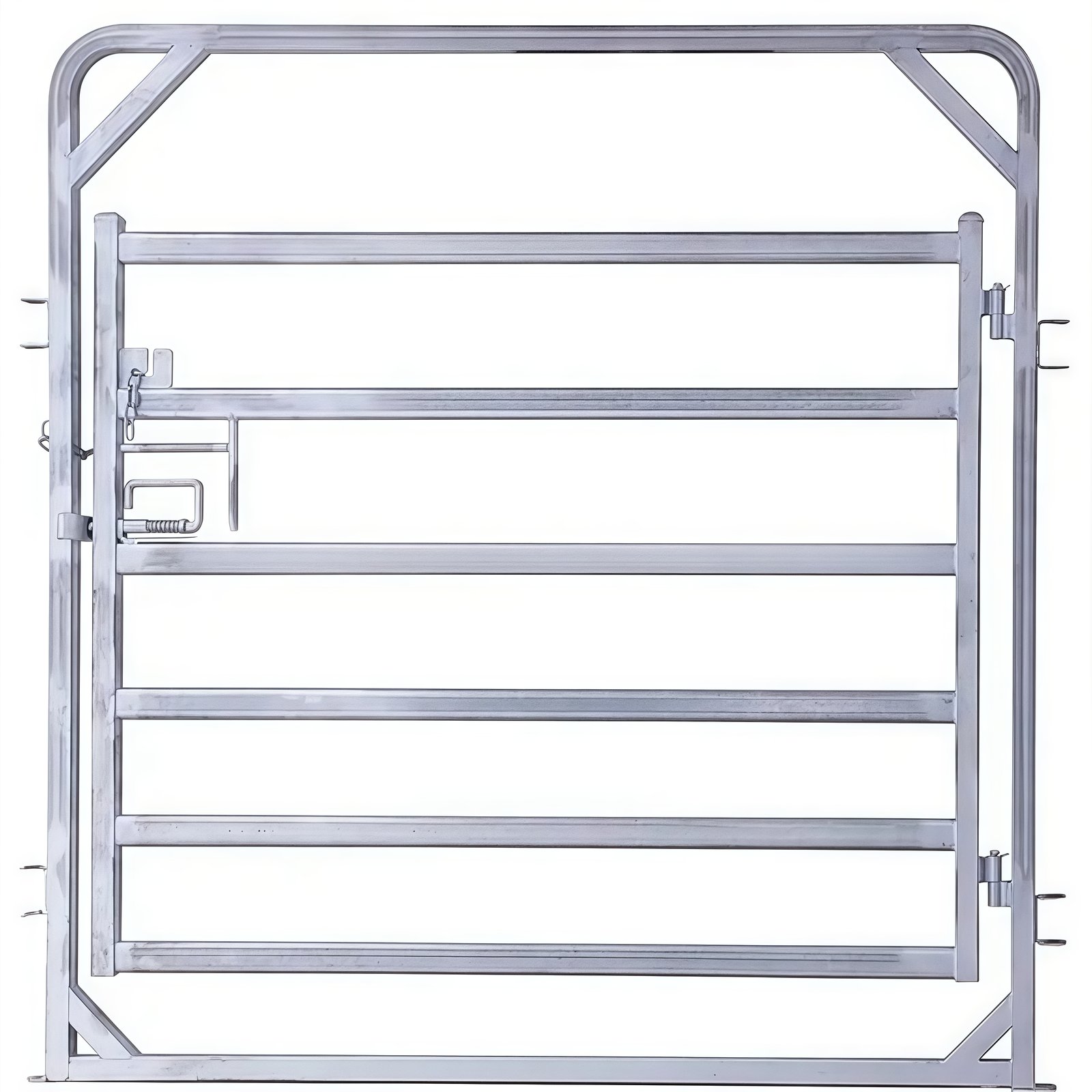

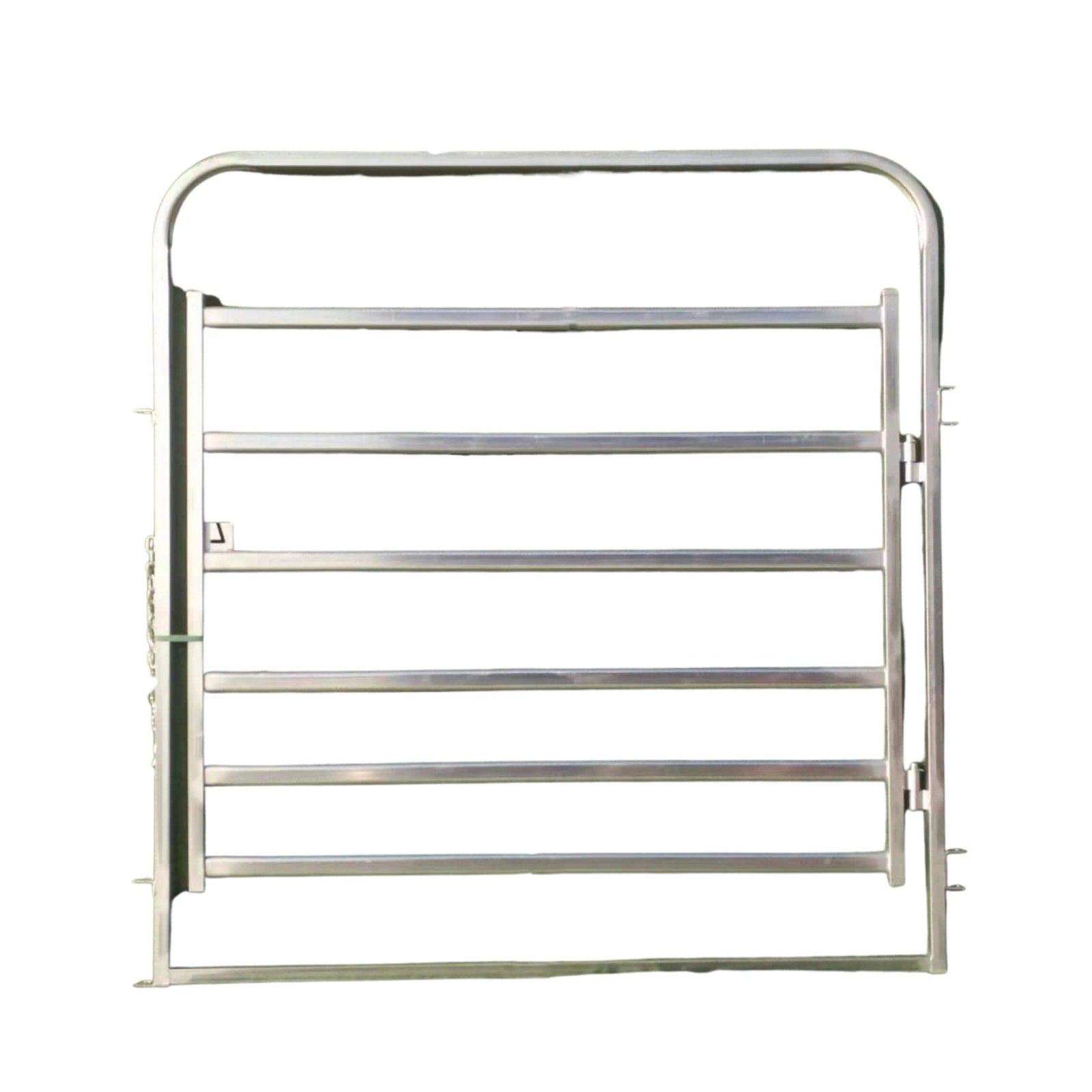

Round Top Cattle Panels Gate 2300mm x 2100mm

In the agricultural sector, ensuring the safety and containment of livestock is paramount. The Round Top Cattle Panels Gate 2300mm x 2100mm is meticulously designed to meet these needs, offering a blend of durability, functionality, and aesthetic appeal. Whether you’re managing a small farm or a large ranch, this gate provides a reliable solution for controlling cattle movement and maintaining secure enclosures.

Key Features and Benefits

1. Robust Construction
   • Frame Material: Constructed from high-quality steel tubing (40mm x 40mm x 1.6mm), the gate promises exceptional strength and longevity.
   • Round Top Design: The curved top not only enhances the gate’s visual appeal but also eliminates sharp edges, ensuring the safety of both livestock and handlers.
2. Optimal Dimensions
   • Height: At 2300mm, the gate effectively contains cattle, preventing them from escaping or jumping over.
   • Width: A spacious 2100mm width accommodates easy passage for cattle, equipment, and human access.
3. Reinforced Structure
   • Internal Vertical Frames: Additional 40mm x 40mm x 1.6mm vertical frames provide extra stability, reducing wobble and enhancing the gate’s structural integrity.
   • Horizontal Bars: Six sturdy horizontal bars (30mm x 60mm x 1.6mm oval frames) ensure the gate remains rigid and resistant to bending or warping.
4. Durable Finish
   • Galvanization: A hot-dipped galvanized finish with a zinc coating of 15 µm / 60–80 g/m² protects the gate from rust and corrosion.
   • Weather Resistance: This coating ensures the gate withstands harsh weather conditions, extending its lifespan and reducing maintenance needs.
5. Comprehensive Accessories
   • Installation Ease: Comes with all necessary accessories, including caps, lugs, pins, foot plates, hinges, and a gate lock, facilitating straightforward installation.
   • Security: The included gate lock enhances security, preventing unauthorized access and ensuring the gate remains closed when needed.
6. Versatile Applications
   • Ideal for various agricultural settings such as cattle pens, pastures, farm entrances, and livestock enclosures.
   • Suitable for both small-scale farms and large ranches, providing flexibility in usage.

Specifications Round Top Cattle Panels Gate 2300mm x 2100mm

Installation Guide

Installing the Round Top Cattle Panels Gate is straightforward, especially with the included accessories. Below is a step-by-step guide:

1. Preparation
   • Tools Needed: Wrench set, screwdriver, measuring tape, level, and appropriate safety gear.
   • Site Assessment: Ensure the installation site is level and free from obstructions. Mark the gate’s desired position.
2. Frame Assembly
   • Vertical Frames: Position the two vertical frames at the marked locations, ensuring they are parallel and spaced 2100mm apart.
   • Horizontal Bars: Attach the six horizontal oval frames evenly between the vertical frames using the provided pins and lugs.
3. Securing the Gate
   • Foot Plates: Install the foot plates at the base of each vertical frame to anchor the gate securely to the ground.
   • Hinges: Attach the gate hinges to one side of the gate and the corresponding side of the enclosure or wall.
4. Final Touches
   • Caps and Lugs: Secure all caps and lugs to protect the steel ends and enhance the gate’s appearance.
   • Lock Installation: Fit the gate lock in the designated position to ensure the gate remains closed when needed.
5. Testing
   • Open and close the gate several times to ensure smooth operation.
   • Check all connections and fastenings for stability and security.

Maintenance Tips Round Top Cattle Panels Gate 2300mm x 2100mm

To ensure the longevity and optimal performance of your Round Top Cattle Panels Gate, regular maintenance is essential:

1. Inspection
   • Regular Checks: Inspect the gate periodically for signs of wear, rust, or damage.
   • Hardware: Ensure all screws, pins, and hinges are tight and secure.
2. Cleaning
   • Debris Removal: Clear any dirt, grass, or debris that may accumulate on the gate.
   • Washing: Clean the galvanized surface with mild soap and water to remove grime without damaging the zinc coating.
3. Protection
   • Rust Prevention: Address any minor rust spots immediately to prevent spreading. Use a rust-inhibiting paint if necessary.
   • Lubrication: Apply lubricant to moving parts such as hinges and locks to ensure smooth operation.
4. Repairs
   • Minor Repairs: Replace any damaged or missing accessories promptly.
   • Structural Repairs: For significant structural issues, consult a professional or replace the affected sections to maintain gate integrity.

Conclusion

The Round Top Cattle Panels Gate 2300mm x 2100mm is a superior choice for farmers and ranchers seeking a reliable, durable, and aesthetically pleasing gate solution. Its robust construction, combined with a protective galvanized finish and comprehensive accessories, makes it well-suited for various agricultural applications. By following proper installation and maintenance practices, this gate will serve as a steadfast barrier, ensuring the safety and containment of your livestock for years to come.

Why Choose Our Round Top Cattle Panels Gate?

• Quality Assurance: Manufactured using premium steel materials and advanced galvanization techniques.
• Customizable: Available in different sizes and finishes upon request to meet specific needs.
• Customer Support: Dedicated support team to assist with installation, maintenance, and any inquiries.
• Competitive Pricing: Offering top-quality gates at affordable prices to provide excellent value for your investment.

Invest in the Round Top Cattle Panels Gate 2300mm x 2100mm today and experience unmatched quality and reliability for your agricultural operations.
