Home Garrison Fencing Garrison Security Fencing for High-Density Areas BMP Factory

    • Garrison Security Fencing for High-Density Areas BMP Factory

    • Main Material: Steel, Aluminum
    • Fence Height Options: 1200 mm, 1500 mm, 1800 mm, 2100 mm
    • Fence Width Options: 1800 mm, 2000 mm, 2400 mm
    • Vertical Picket Sizes: 15mm x 15mm, 19mm x 19mm, 25mm x 25mm; Thickness range: 0.8-2 mm
    • Horizontal Rail Sizes: 30mm x 30mm, 40mm x 40mm, 45mm x 4 mm; available with 2 or 3 rails
    • Vertical Pipe Spacing Options: 100 mm, 110 mm, 120 mm
    • Post Sizes: 50mm x 50mm, 60mm x 60mm, 80mm x 80mm, 100mm x 100mm
    • Fixing Options: Steel Brackets or Aluminum Brackets
    • Post Cap Types: Metal Cap or Anti-UV Plastic Cap
    • Transport Package: Air Bubble Film + Wood/Metal Pallet
    • Specification: Customizable specifications
    • Trademark: BMP
    • Origin: China
    • HS Code: 73089000
    • Production Capacity: 300 sets per 7 days
    enquiry
    • Description

    Garrison security fencing is highly favored in industrial, commercial, and high-density settings. Unlike traditional chain wire fencing, our powder-coated security diplomat fence and robust security gates offer both aesthetic appeal and practical security solutions. Available in various colors, these fences provide a welcoming appearance while maintaining all necessary features to deter unauthorized access. Multiple styles are available, with options for electronic gate controls if needed.

    Features:

    1. Heavy-Duty Crimp Top Security Fence: Available exclusively in black.
    2. Dimensions: Measures 2400mm in width and 2100mm in height, featuring a crimp top diamond shape.
    3. Construction: Includes a 40x40x1.6mm top rail and 25x25x1.2mm verticals.
    4. Vertical Pickets: Consists of 17 vertical pickets, each 25x25mm, with a diamond crimp on top.
    5. Picket Spacing: Maintains a 110mm gap between pickets.

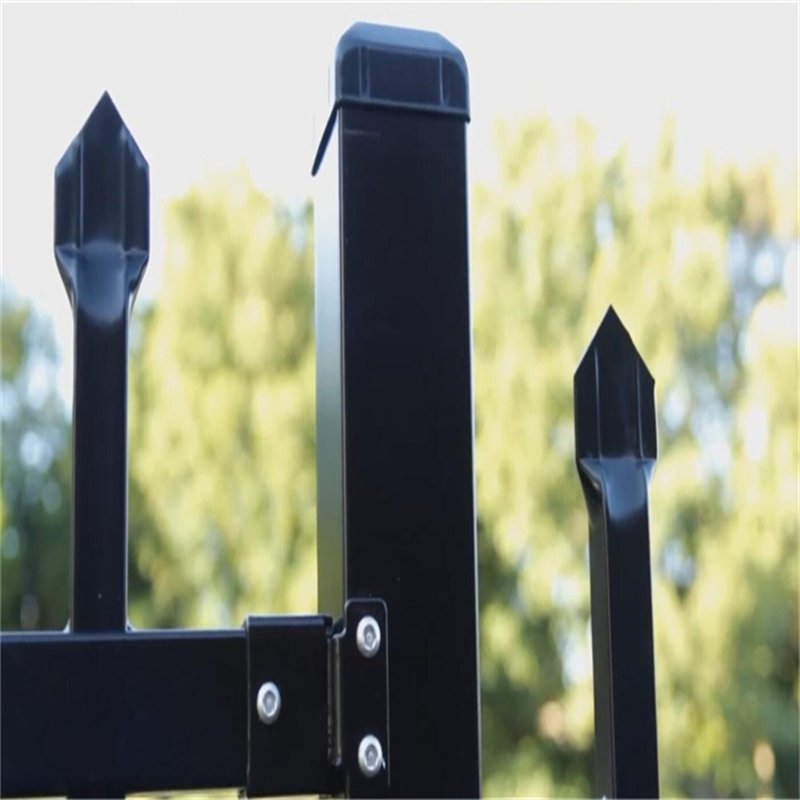

    6. Garrison security fencing Posts: Uses 60x60x2mm thick posts that are 3 meters in length, surpassing the standard 2.6 meters offered by other suppliers.
    7. Brackets: Equipped with standard powder-coated fence brackets.
    8. Security Fence Brackets: Additional security with powder-coated brackets.
    9. Post Caps: Includes powder-coated caps for 60×60 posts.
    10. Surface Treatment: Phosphate treated prior to powder coating, a critical process not commonly implemented by many competitors.
    11. Protection: All panels are fully protected to ensure longevity and durability.

    These features emphasize the superior quality and enhanced security measures of our garrison security fencing, making it an ideal choice for those requiring reliable perimeter protection.

    Garrison Security Fencing Specifications

    Fence Height (mm)Fence Width (mm)Pale Thickness (mm)Qty: Pale (pcs)Cross Rails (mm)Post Height (mm)Square Post Section (mm)Pale Size (mm)
    180024001.61840×40×1.6/2.5270065×65×3.019×19, 25×25
    210024001.61840×40×1.6/2.5300065×65×3.019×19, 25×25
    240024001.61840×40×1.6/2.5330065×65×3.019×19, 25×25
    270021001.61540×40×1.6/2.5360075×75×3.019×19, 25×25
    300027501.61740×40×1.6/2.5390075×75×3.019×19, 25×25

     Punched Rails

    Fence Height (mm)Fence Width (mm)Pale Thickness (mm)Qty: Pale (pcs)Cross Rails (mm)Post Height (mm)Square Post Section (mm)Pale Size (mm)
    180024001.21840×40×1.6270065×65×2.025×25
    210024001.21840×40×1.6300065×65×2.025×25
    240024001.21840×40×1.6330065×65×2.025×25
    270021001.21540×40×1.6360065×65×2.025×25

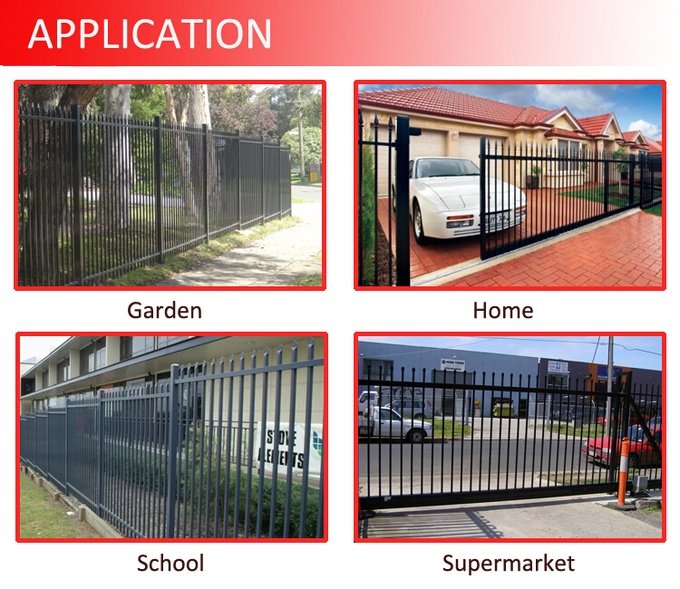

    Applications of Garrison Security Fencing

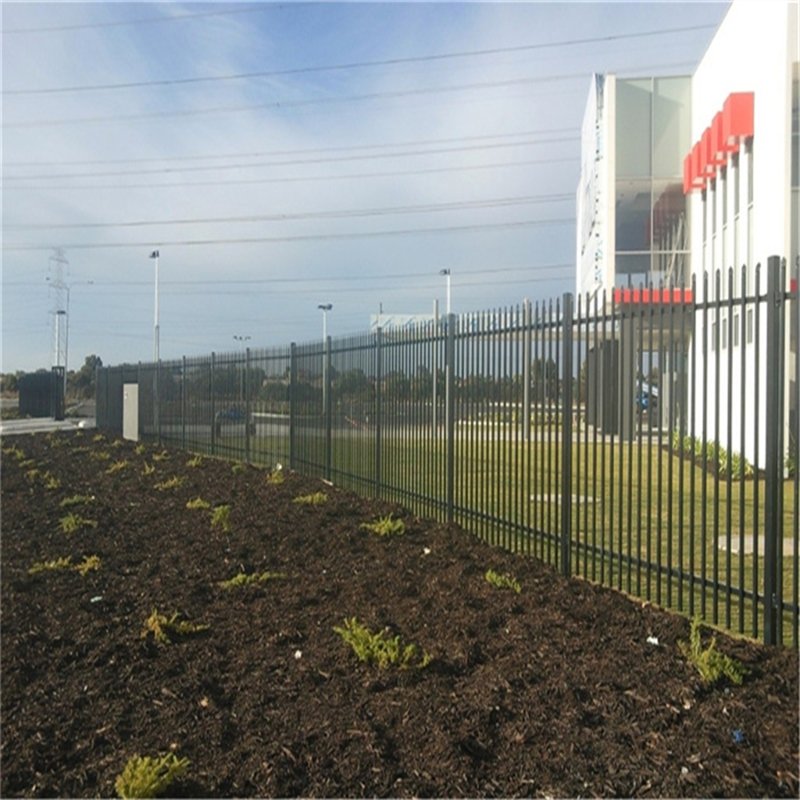

    • Industrial Sites: Secures manufacturing plants, warehouses, and utility facilities against unauthorized entry and theft.
    • Commercial Properties: Protects shopping centers, office buildings, and business parks, adding both security and aesthetic appeal.
    • Educational Institutions: Ensures the safety of students and staff by enclosing school grounds, university campuses, and playgrounds.
    • Government and Military Facilities: Provides high-level security for sensitive areas, including military bases, government buildings, and other restricted zones.
    • Residential Areas: Enhances security for private properties, gated communities, and condominium complexes without compromising on looks.
    • Public Parks and Recreational Areas: Offers a secure perimeter for public spaces, ensuring safety while maintaining an open and inviting atmosphere.
    • Transportation and Infrastructure: Used around airports, railway stations, and metro sites to secure perimeters and control access.
    • Sports Facilities: Encloses sports arenas, stadiums, and outdoor gyms, providing security for spectators and equipment.
    • Utility and Power Plants: Protects critical infrastructure from trespassing and potential sabotage.
    • Construction Sites: Prevents unauthorized access and reduces the risk of theft of construction materials and machinery.

    2023033010044273420230330100445580

    Enhanced Benefits of Garrison Security Fencing

    1. Visually Appealing Design: Enhances the property’s appearance with sleek, modern lines that blend with any architectural style.
    2. Durable Finish: Features a rust-resistant and corrosion-proof powder coat finish, ensuring longevity and sustained good looks.
    3. Customizable Colors: Available in a wide range of colors to match or complement your property’s exterior, fostering a cohesive aesthetic.
    4. Robust Security: Effectively blocks unauthorized entry of both people and vehicles, providing a reliable barrier against intruders.
    5. Long-Term Durability: Constructed for extended use, the high-quality materials and finishes ensure that the fence remains effective and attractive for years.
    6. Low Maintenance: Requires minimal upkeep due to its high-quality construction and finish, saving time and maintenance costs.
    7. Versatile Applications: Suitable for a variety of settings including industrial, commercial, and residential properties.
    8. Enhanced Privacy: Offers a solid barrier that not only secures but also increases privacy for the enclosed space.
    9. Increased Property Value: Improves the overall value of your property by adding a high-quality security feature that is attractive and functional.
    10. Eco-Friendly Options: Available with environmentally friendly materials and coatings, aligning with green building practices.

    20230330100447621

    20230330100448360

    20230330100450371

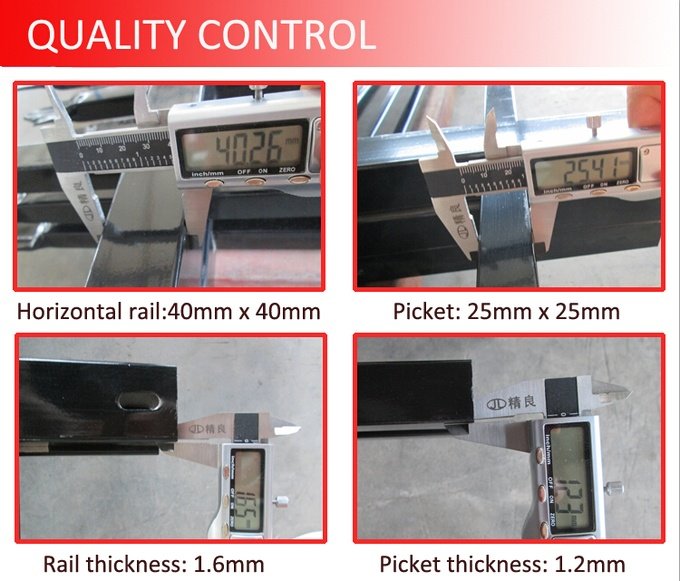

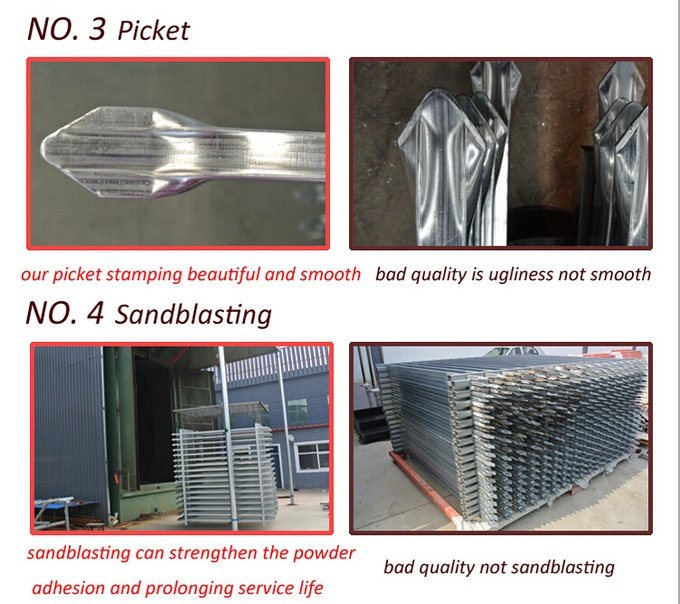

    quality control garrison security fencing

    20230330100452797



    Garrison security fencing:

    1. Material Inspection: Our QC team checks all raw materials to make sure they meet our standards before we use them.
    2. Monitoring Production: They closely watch each step of the production process to ensure everything is done correctly.
    3. Checking Surface Treatment: The team examines the surface treatment to confirm it’s applied properly for durability and appearance.
    4. Packing Inspection: They check the packing to ensure it will protect the fencing during shipping.
    5. Loading Supervision: Our QC people supervise the loading into containers to prevent damage.
    6. Photo Updates: We take photos at each step and send them to our clients to keep them updated.

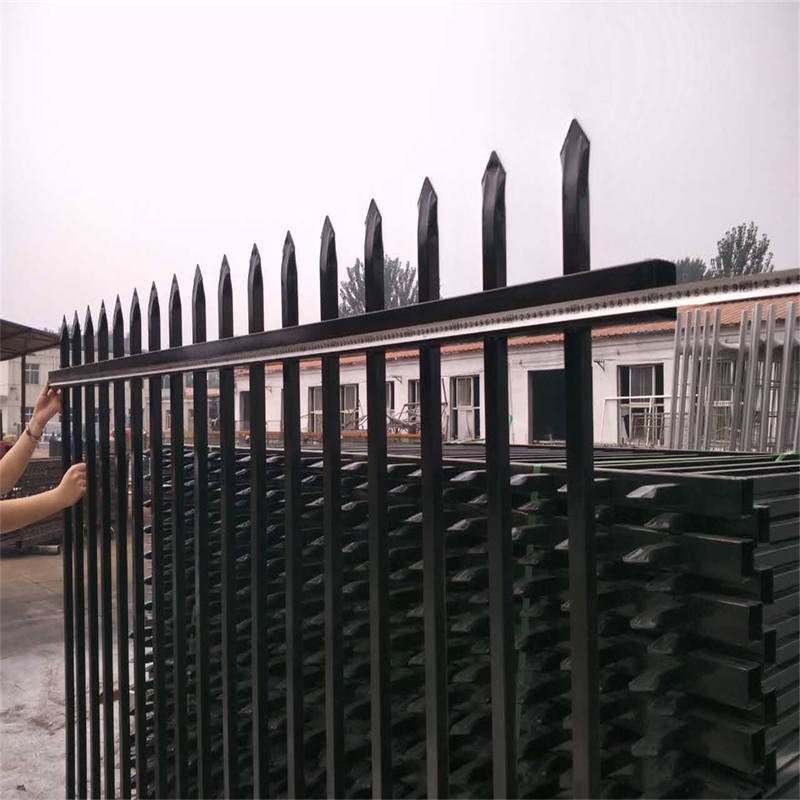

    Industrial garrison security fencing packing:

    20230330100455112
