Garrison fencing

BMP is a leading Garrison fencing manufacturer specializing in high-quality fence products for the Australian and American markets. We offer free samples and customized product designs to meet your specific needs.

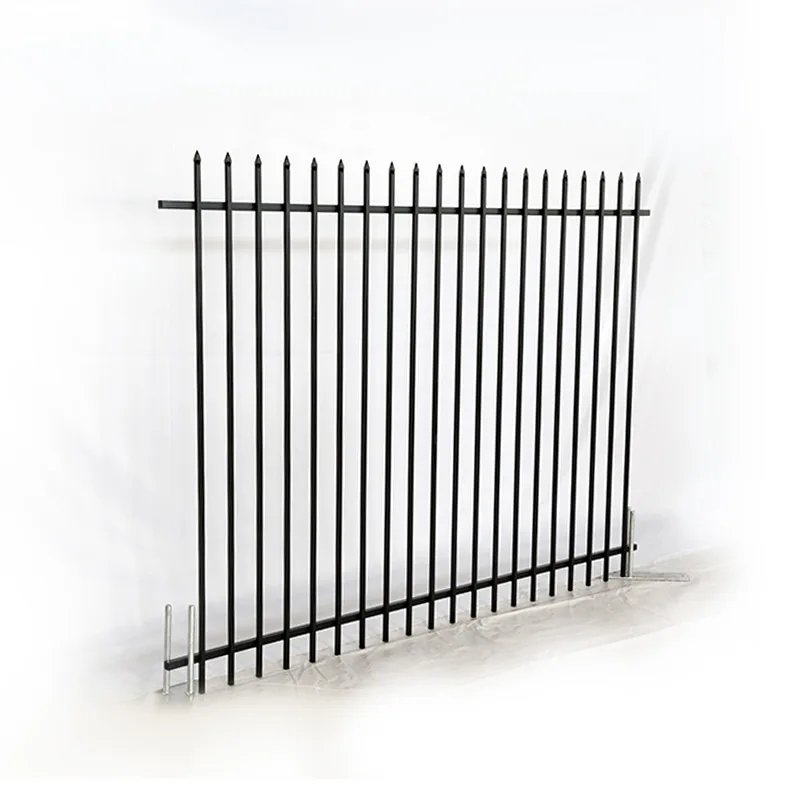

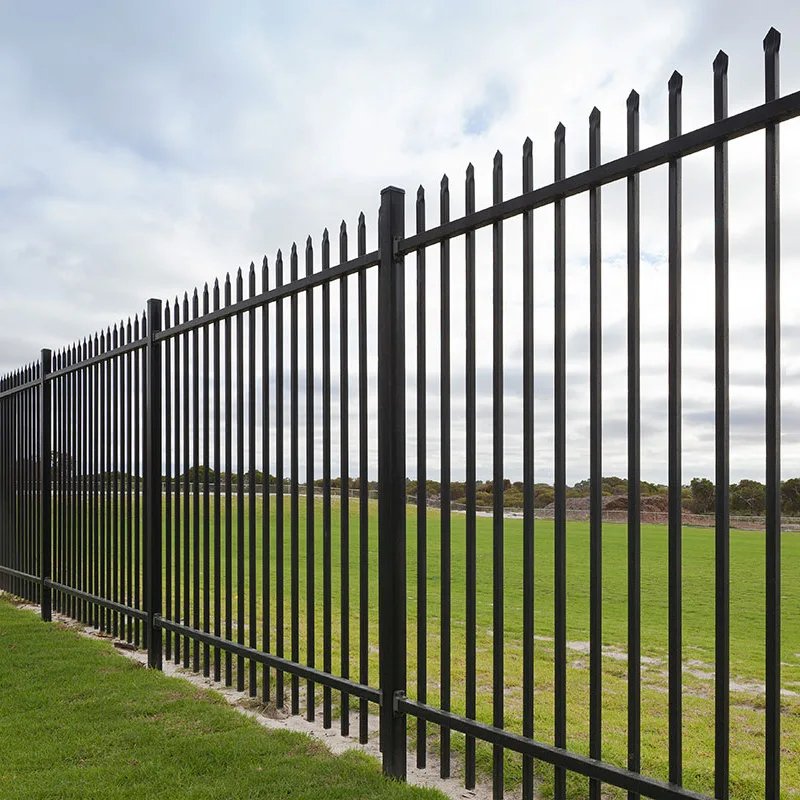

What is Garrison Fencing?

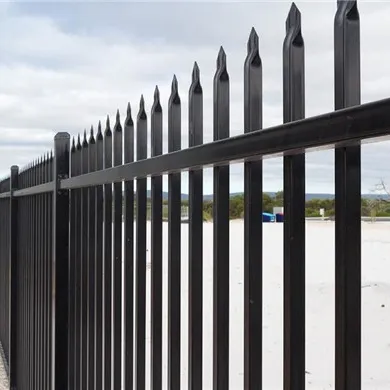

Garrison Fence is a premium medium-security solution designed for industrial and commercial properties. Made from pre-galvanized steel, our Garrison Fence utilizes high-frequency welding technology to join hot-dip galvanized steel strips, ensuring durability.

After manufacturing, the panels undergo treatment before being powder-coated for added protection. We use silicon bronze for the welds, enhancing rust resistance. The fence features sturdy pressed spears at the top for additional security.

This advanced manufacturing process not only addresses the corrosion issues common with wrought iron fences but also offers a more cost-effective alternative to stainless steel options.

Through a complex physical and chemical reaction, the alloy layer seamlessly integrates with the pure zinc layer and the steel tube matrix. As a result, this integration ensures that the surface of a hot-dip galvanized steel tubular fence can withstand harsh environmental conditions for up to 30 years without requiring additional treatment. Additionally, we actively apply an anti-oxidizing powder coating to further enhance the durability and weather resistance of our finished products. This coating is applied through Electrostatic Coating techniques.

Garrison security fencing adapts exquisite all-around welding technology, which makes its frame more solid and stable, which is a significant feature. This specific feature, along with the previously mentioned advantages, has positioned it as the top choice for securing industrial, agricultural, commercial, residential, and public facilities.

To adapt to different usage scenarios, we have a variety of sizes to choose from. At the same time, as a professional garrison fencing manufacturer, BMP can customize it according to customer needs or other usage scenarios.

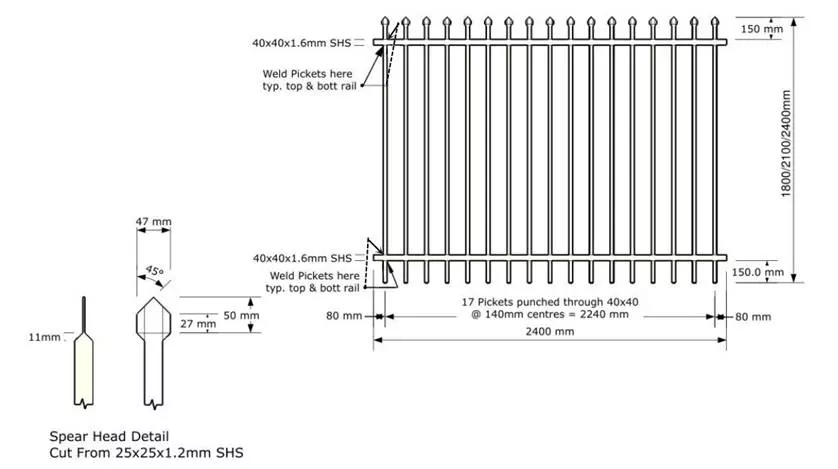

Product Specifications:

• Garrison steel panels are 2400 millimeters wide x 1800 mm, 2100 mm, or 2400 mm high.
• Spears are punched through the horizontal 40 x 40 mm tubing and then welded. This makes for a far stronger fence than a traditional face-welded garrison panel.
• To deter and obstruct criminals, we designed and strongly pressed the spear picket tops on the fences.
• All materials used by-products are powder-coated following AS/NZS 4506-1998.

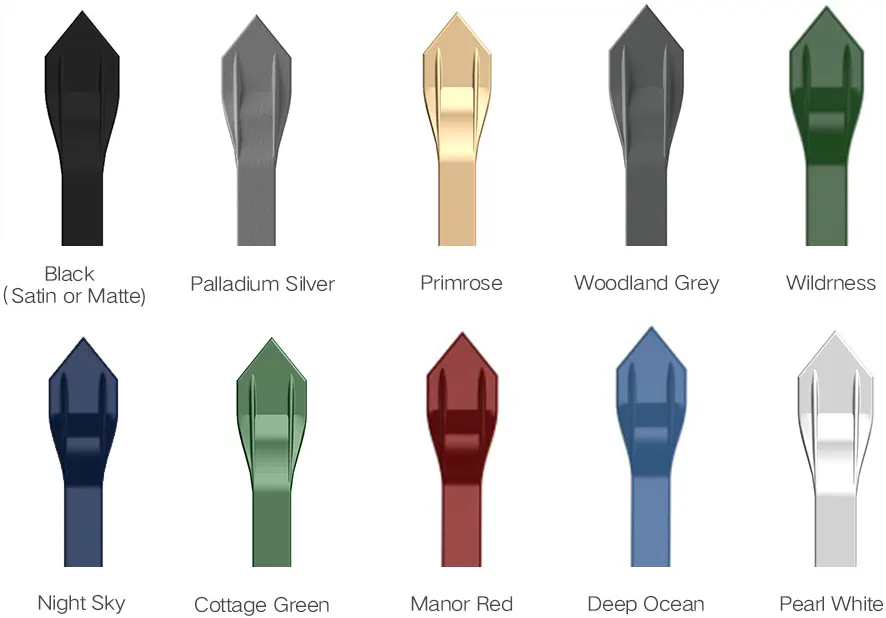

Garrison fencing Multiple Color Options:

Of course, as a professional garrison fencing company, BMP not only offers the above color options, but also customizes special colors according to other needs.

Different Welding Processes Of Garrison fencing :

Unlike a spear top aluminum fence, garrison fencing welds the posts to the face of the rails, and the rails are not perforated, making the fencing ornamental, more beautiful, more corrosion-resistant, and more suitable for use in high-humidity environments.

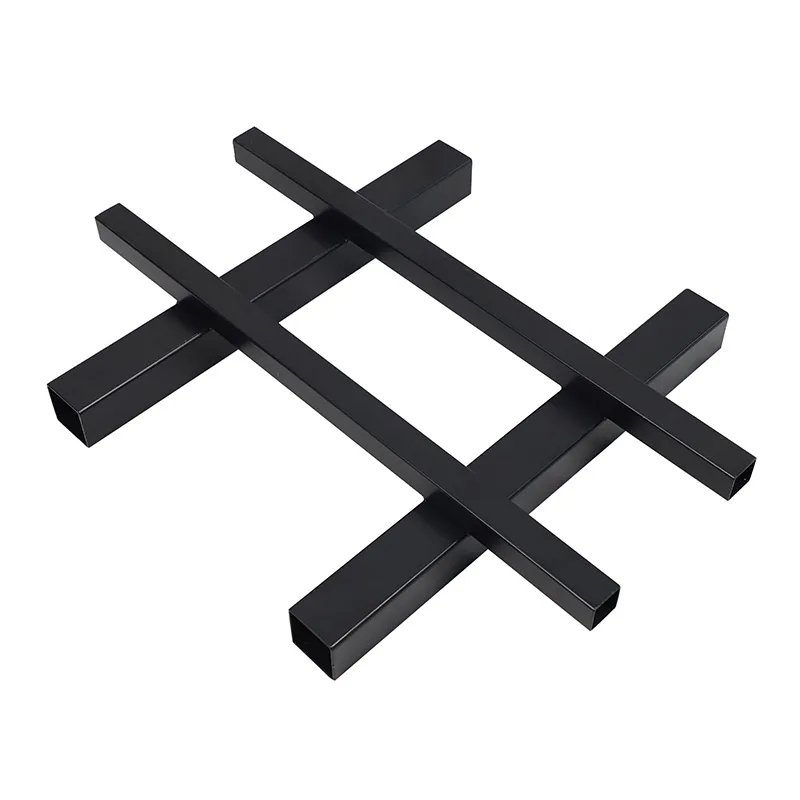

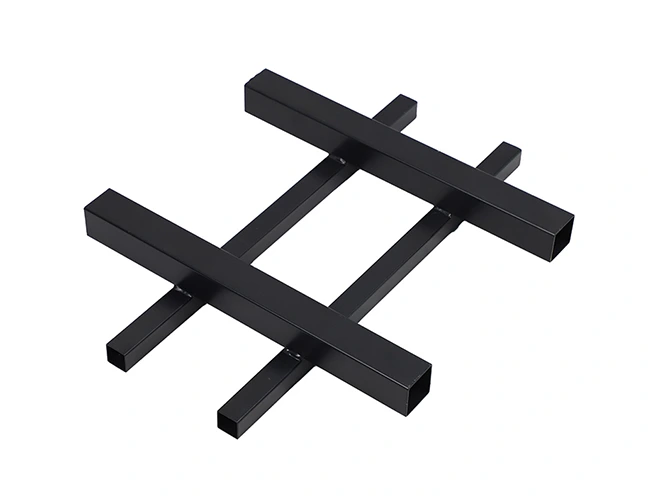

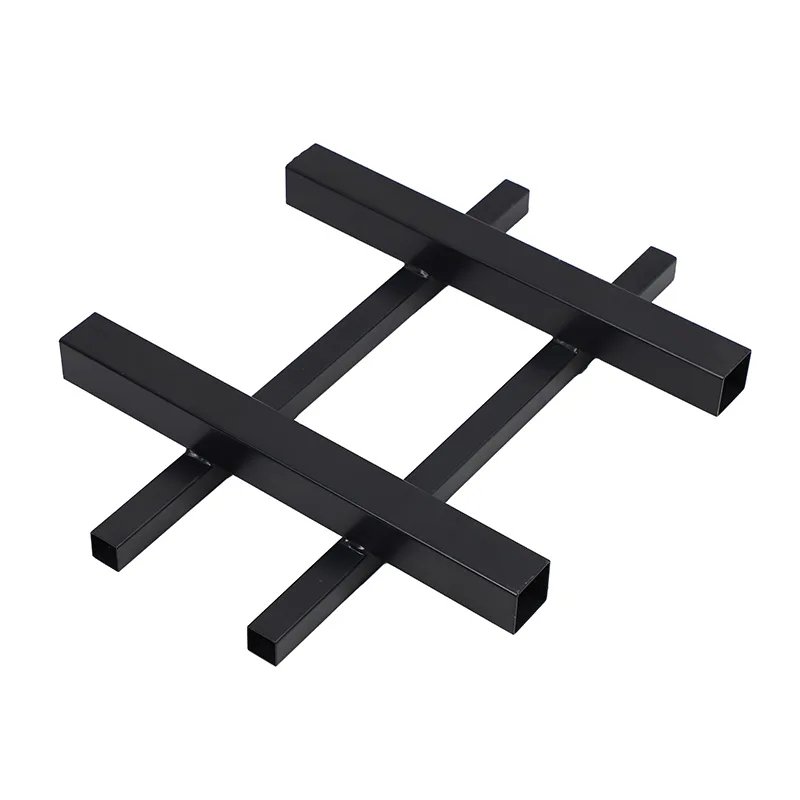

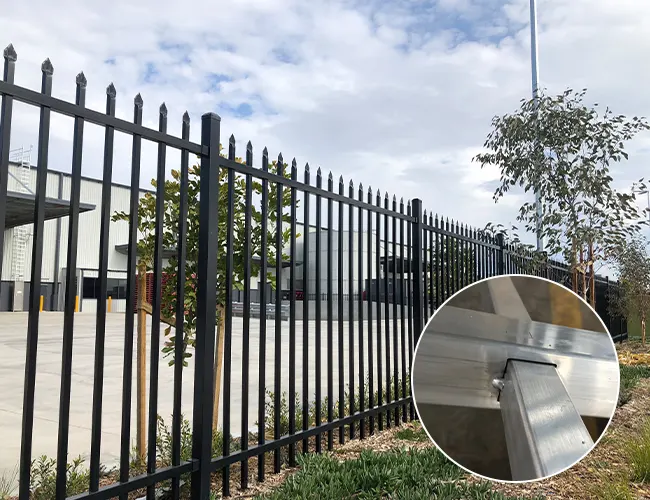

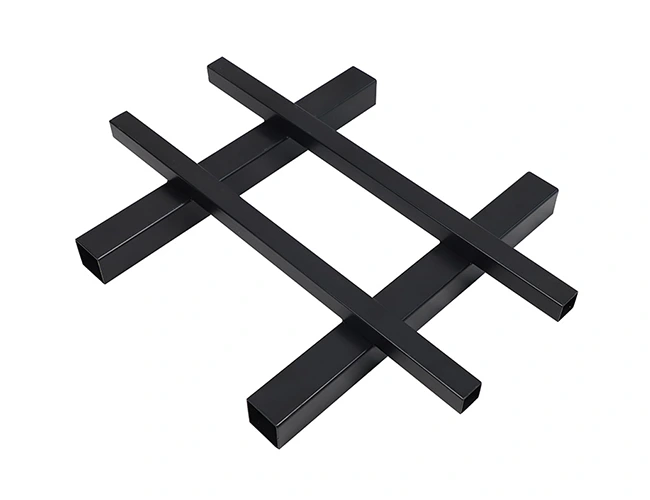

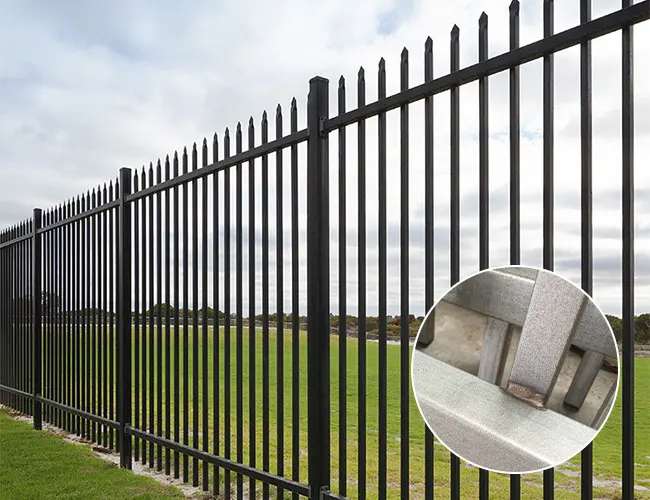

Face Welding	Punch Through Welding

Garrison fencing Features:

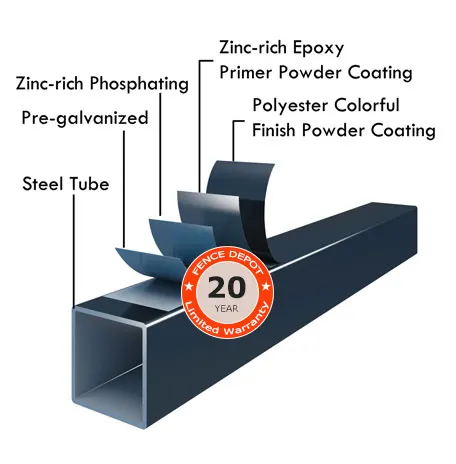

– The product is made from high-strength pre-galvanized mild steel.
– A zinc-rich phosphating pretreatment enhances its anti-corrosion properties and improves powder adhesion for a durable finish.
– An epoxy-polyester powder primer protects all welds and cut edges against rust and corrosion.
– AkzoNobel polyester powder coatings offer excellent weather and scratch resistance, are self-cleaning, and are easily refreshed with rain or water. Available in various colors, these coatings provide both functional and aesthetic versatility.

Your Trusted Garrison Fencing Company?

Durability

Constructed from heavy-duty, robust pre-galvanized steel tubes strongly pressed, while we punch or face-weld them to ensure strength and durability.

Low maintenance

We fully galvanize all steel components, both inside and outside, to guarantee long-lasting performance with minimal maintenance required.

Aesthetics

Powder-coated garrison fencing has a stylish and modern design, so it can bring aesthetics to factories, schools, etc.

Versatility

The security garrison fencing finds practical use in various settings, such as residential, commercial, and industrial environments. It comes in different heights and widths, allowing for suitability across diverse property types and terrains.

Cost-effectiveness

The security fence, crafted from galvanized steel, presents a cost-effective alternative when compared to other fencing options.

Easy installation

With its user-friendly design, the garrison security fence panels can be easily and efficiently installed on any property.

Standard Production Process:

Material Inspection

Check whether the outer diameter and wall thickness of the pipe meet the requirements of the product drawing. Check that the pipe has no obvious scratches, rust, and other defects, and whether the pipe has obvious bends.

Pipe Manufacturing

Cut the pipe to meet the length requirements on the drawing.

Spear Forming

To achieve the spear-shaped pressed spears of the garrison fence, we flatten and squeeze the top of the pipe.

Welding

The pre-galvanized steel pipes are spliced into frames and welded.

Surface Pretreatment

The purpose of sandblasting or phosphating the surface of the product is to form a dense layer of pits on the surface of the pipe, thus increasing the adhesion of the powder.

Cleaning

Treat surface residues or impurities to ensure the next step of the process.

Powder Coating

The surface of the product is sprayed with epoxy-polyester powder and cured at high temperatures. This process makes the product’s paint film thickness at least ≥80μm. This process can make the product more rust-proof and corrosion-resistant, so it can withstand the erosion of various harsh environments.

Quality Control

We will do cross-cut testing for the powder coating before delivery. Our QC checks the powder coating thickness at every position of the fence panel. The average thickness of the coating is more than 100 μm.

Packaging

We use wrapping film + square cardboard + strapping tape to ensure safe transportation.

Related Accessories for Installing the Garrison Fence Panel:

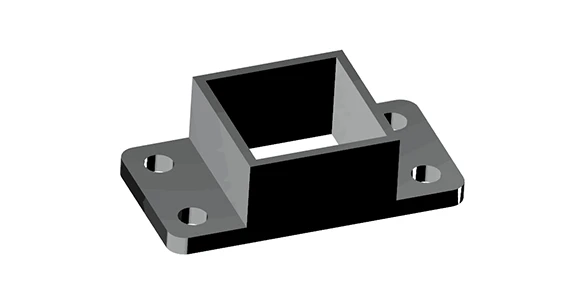

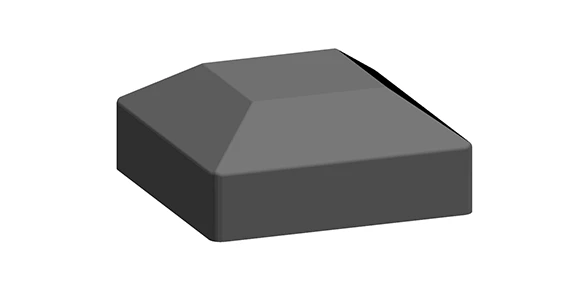

Fence Bracket	Post Cap

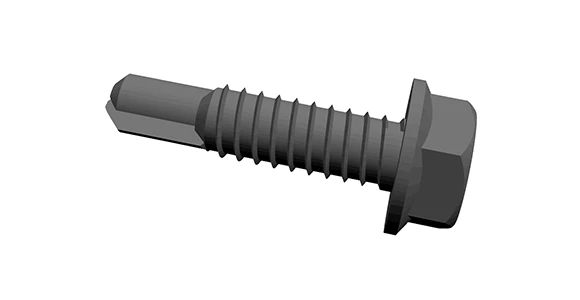

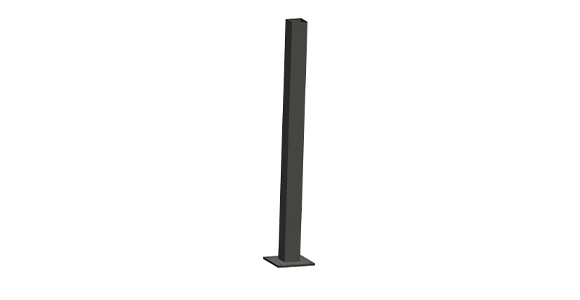

Flange Post	Screw

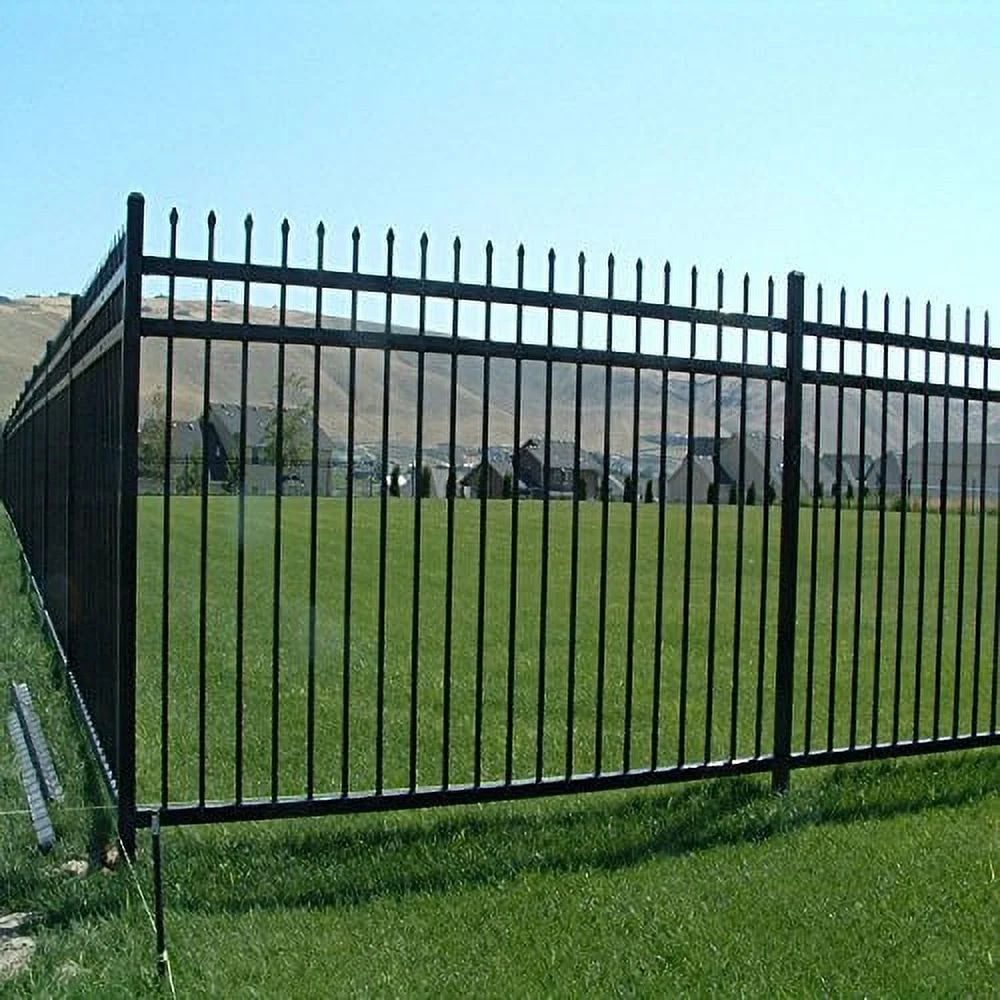

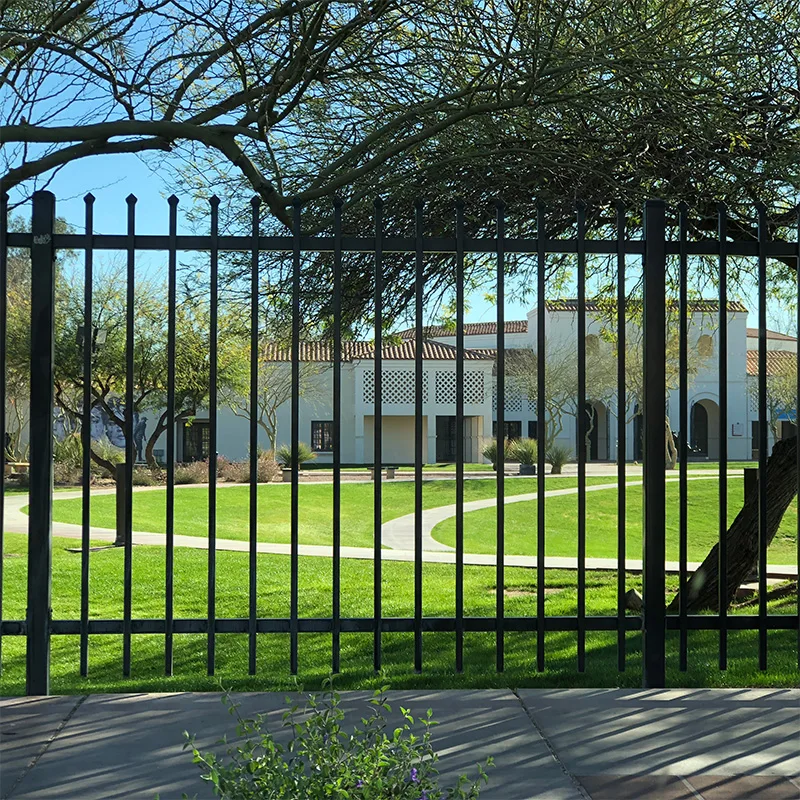

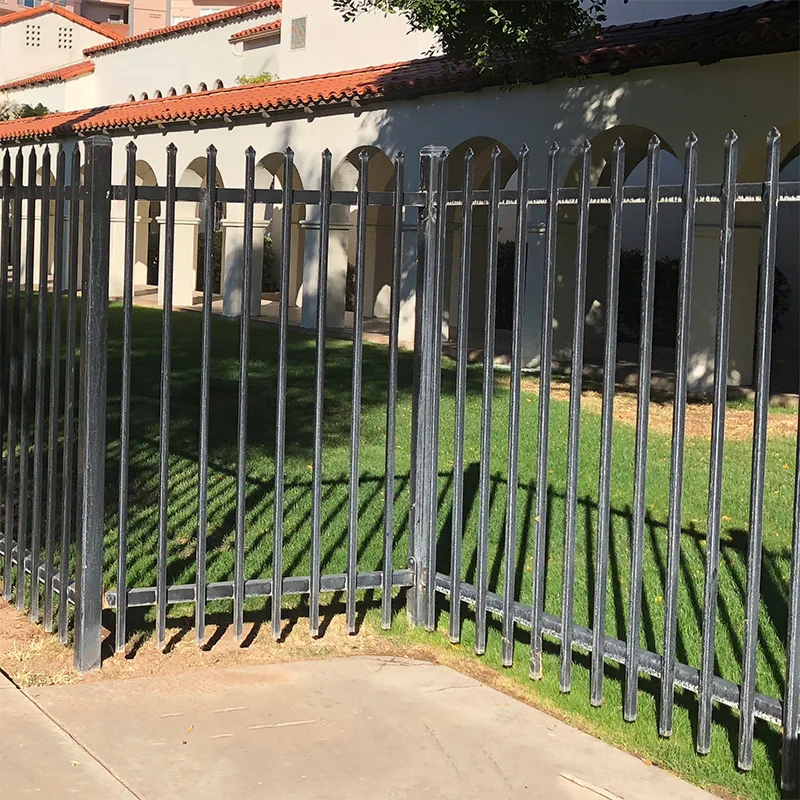

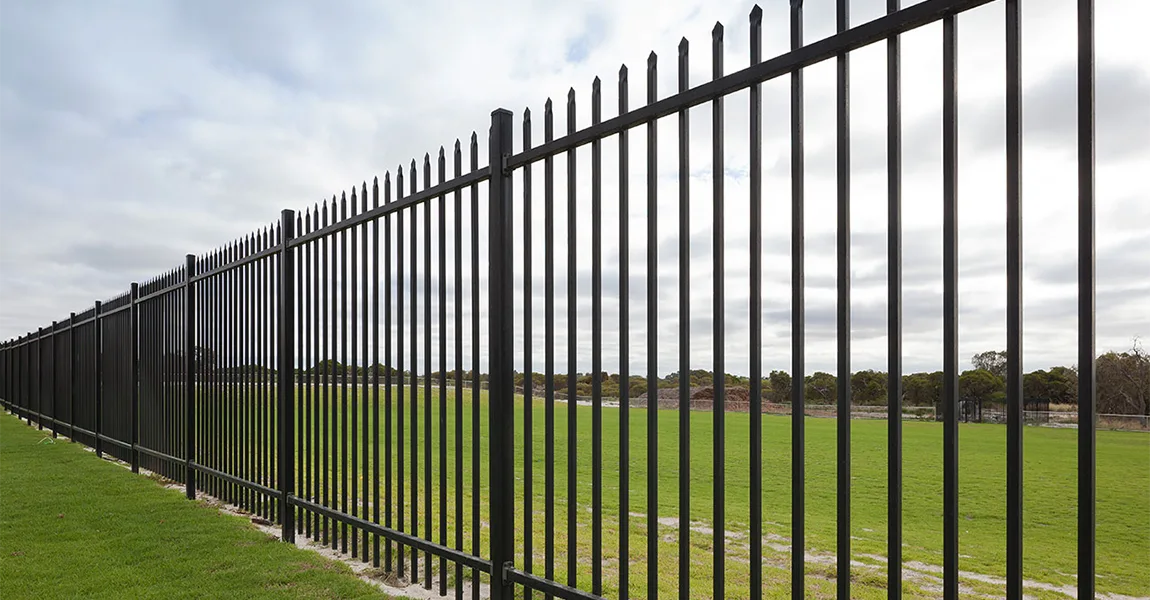

Garrison fencing Applications

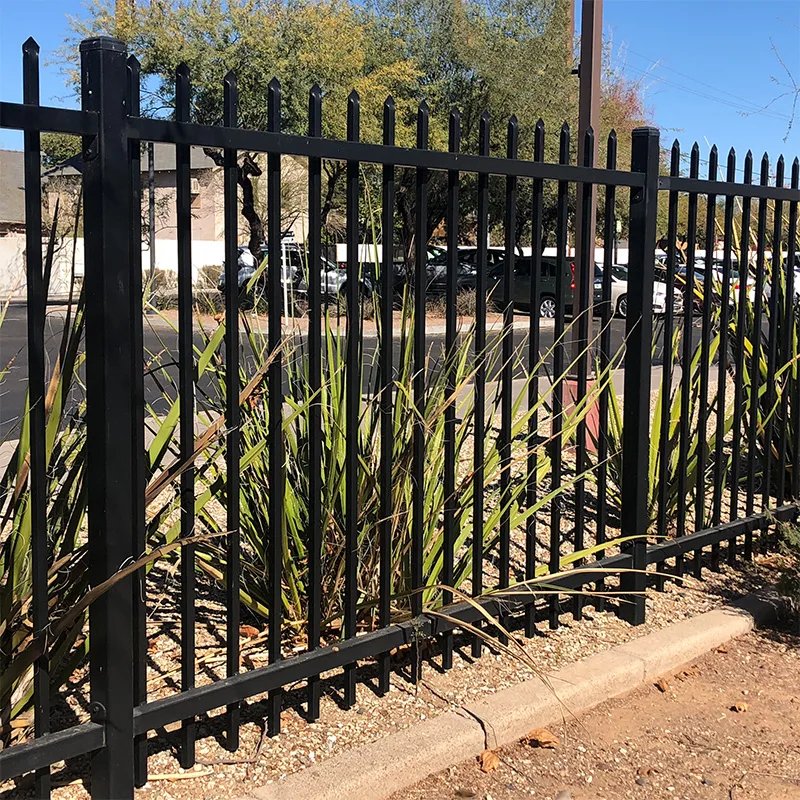

Suitable for high-security fences in schools, industries, commercial, and residential areas.

Problems Encountered When Ordering Garrison fencing

Q: Can you design the fence for us?

A: Yes, our professional technical department can design with our advanced software. Just send us your requirements in text or verbal form, and BMP will customize the product for you, including size, materials, and workmanship.

Q: We would like to get our fencing faster. What should we do?

A: We will develop the most effective production plan for you based on the quantity and category of your products. If you need expedited delivery, let us know before placing an order and we will arrange fast shipping after coordination.

Q: How about the sample time and cost?

A: If you want to customize your product without making a mold, it will take 7–10 days. It’s free, but you need to provide shipping costs.

Q: What is the delivery time of our garrison fencing ?

A: For standard specifications, we keep standard products in stock. If you need these, we will ship as soon as possible. As a professional manufacturer, we also produce quickly to reduce your waiting time.

Q: What is your MOQ for a trial order of garrison fencing ?

A: Normally, a full 1*20′ container is required for shipping to protect the product during transportation. But we are very flexible and can ship according to demand.

Q: Are you a professional manufacturer?

A: Of course. BMP has provided professional products in fences and related fields for nearly ten years.
