Home Edge Protection Fence Edge Protection Fencing: Secure Construction Platforms

    • Edge Protection Fencing: Secure Construction Platforms

    • Weave Technique: Welding
    • Material: Metal
    • Name: Edge Protection Fence
    • Wire Diameter: 5x4mm, 6x5mm, 8x6mm
    • Mesh Size: 75x75mm, 50x100mm, 50x200mm
    • Length: 1.5m, 2.0m, 2.5m, 3.0m
    • Height: 1.3m, 1.4m, 1.5m, 1.6m
    • Bending Degree: 60°, 90°, 12°
    • Round Post: 48x2mm, 60x2mm
    • Square Post: 50x50x2mm, 60x60x2mm
    • Color: Yellow, Blue, Red
    • Transport Package: Steel Pallet
    • Specification Example: Wire Dia. 5mm x 4mm, mesh size 75x75mm, length 1.5m
    • Trademark: BMP Fence
    • Origin: Anping, Hengshui, China
    enquiry
    • Description

    Edge protection fencing is structurally designed to secure construction working platforms for various applications, such as Railway-Infrastructure, Roof Edge Protection Barriers, Mesh Guard Edge Protection Panels, Pontoon Mesh Edge Protection System For Floating Platforms, etc.

    Standard

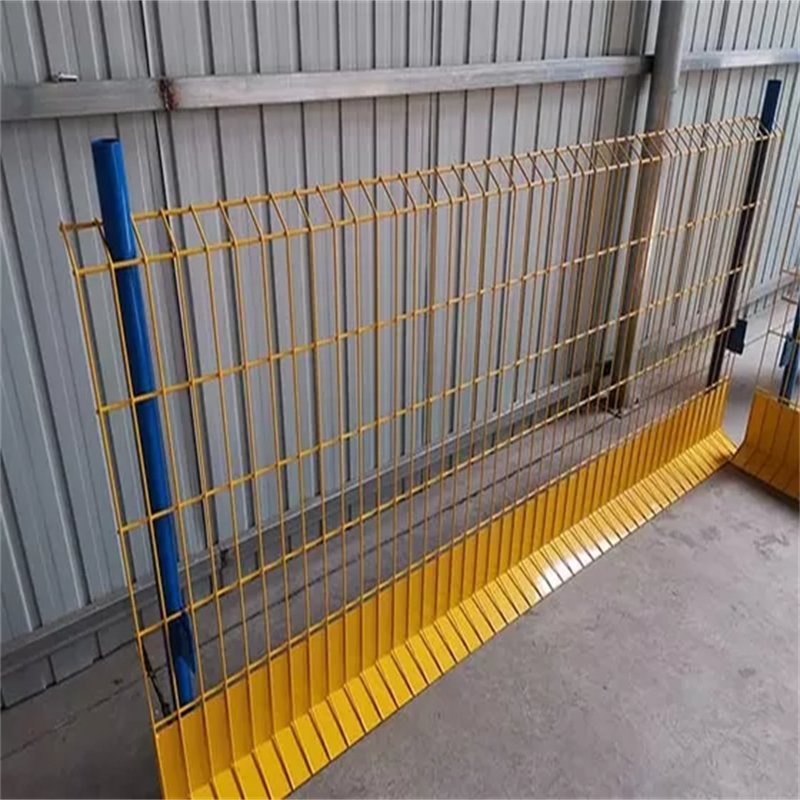

    Each edge protection fencing comprises a 4mm-6.00m steel wire construction. The wire grid has not exceeded 50mm x 50mm or 50mmx150mm, meaning it complies with AS/NZS 4994.1:2009. Panels also feature a rectangular rolled wire top. Additionally, the rolled wire bottom includes a galvanised kick plate. This solid kick plate helps prevent objects from falling through the panel bottom, reducing the risk of losing objects near the drop-off.

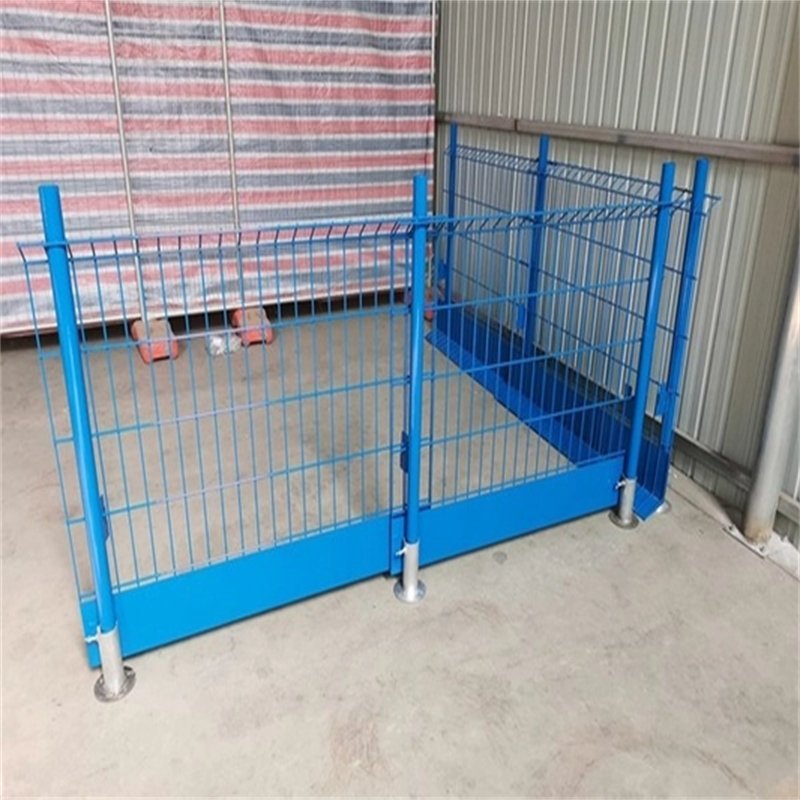

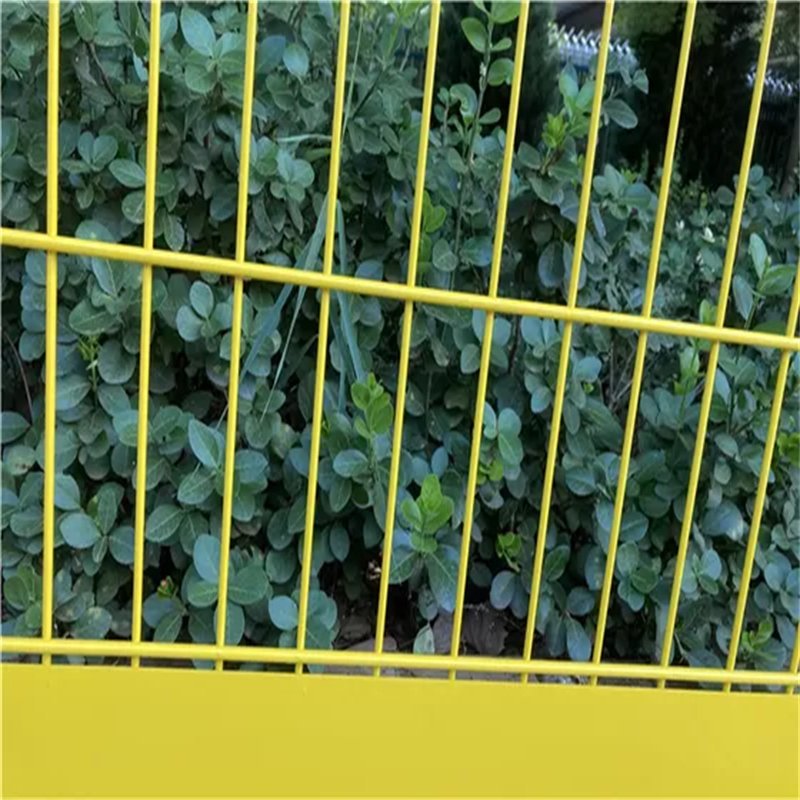

    pt107710709-1_3_1_6m_tall_edge_protection_barriers_for_prefabricated_material_system-2 pt32156393-1200_2400mm_edge_protection_barriers_for_rail_infrastructure-2
    20230802154033_27275-1-1 pl95479045-remark-1-1

    Purpose of Edge Protection Fencing

    Each edge protection fencing has two primary purposes; the first is to create a temporary fence around the perimeter of a working area to keep the workforce safe from accidentally falling. The second purpose of the edge protection fencing system is to stop materials and debris from leaving the worksite & falling.

    Advantages

    1. reinforced sidebar for durability
    2. returns no sharp edges on the top edge
    3. Close and return to the kickboard for better debris control
    4. Steel mesh protection with the impact absorption capacity

    edge protection fencing specifications

    Specification Details
    Wire Diameter 4.0mm, 5-8mm
    Hole Size 75x75mm, 50x100mm, 50x200mm
    Length 1.5-3.0m
    Height 1.3-1.6m
    Features BS EN 13374, Class A
    Post Type Lock post
    Panel Size 1100x1700mm, 1100x2400mm, 1300x1300mm, 1300x2200mm
    Post Diameter/Thickness 48×1.5mm, 48×2.0mm
    Surface Treatment Galvanized + Powder Coated / Galvanized + Painted / Black + Powder Coated
    Customization Specifications can be made according to your requirements

    Feature Edge Protection Fencing

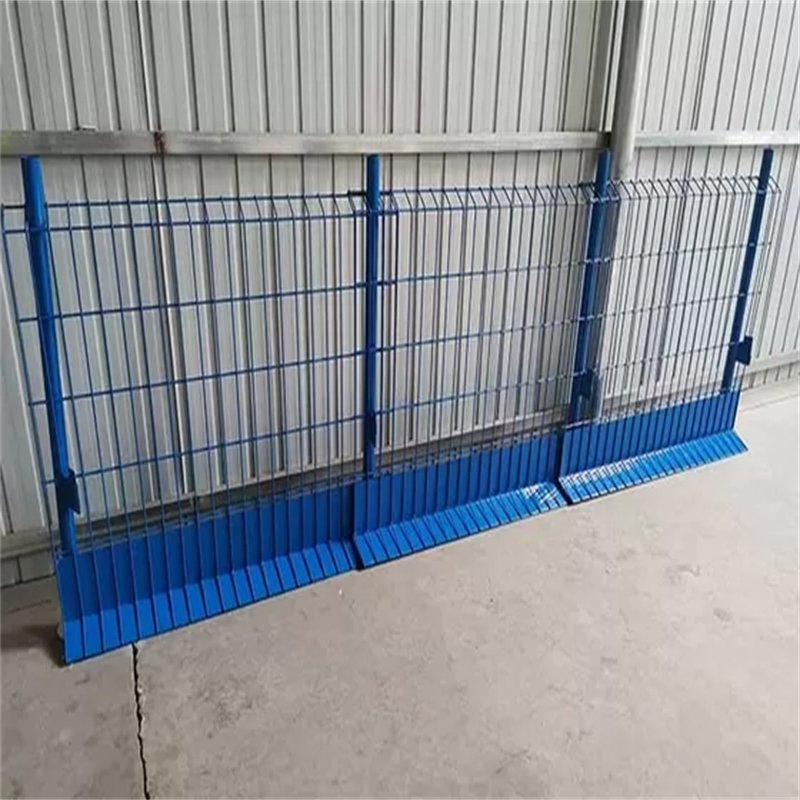

    • 1. The Raw Material is Low-Carbon Steel Wire. Welded By Heavy Wire, with 90 Degree on the top and bottom, the piece of toe board was welded on the bottom of the Edge protection Barriers to Protect Small Stone Falling, avoid hurting somebody. It also has continuous Wire, no cut wire, making the Temporary Protection Fence Smooth, Flat and Straight.

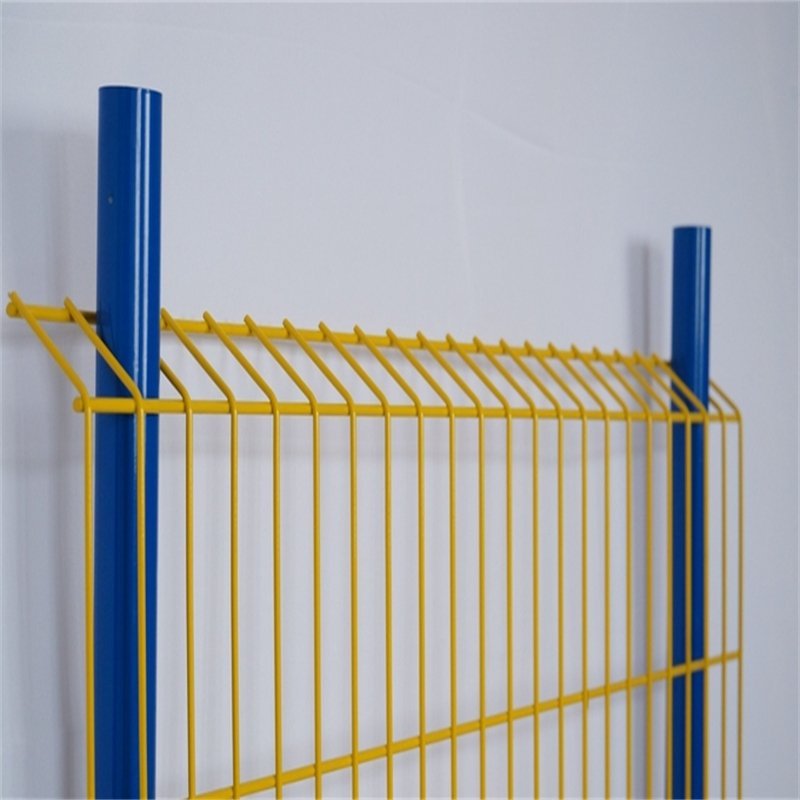

    • 2. Bending on the Top of Edge Protection Barriers. There is a 90 Degree Bending on the top of the Temporary Edge Protection Barriers; it is straight, make the fence flatling, have high shock strength to protect Peoples.
    • 3. make the Temporary Protection Fence Smooth, Flat and Straight. Powder Coated Surface Treatment is more beautiful and anti-rust; it makes its long using life to save costs.

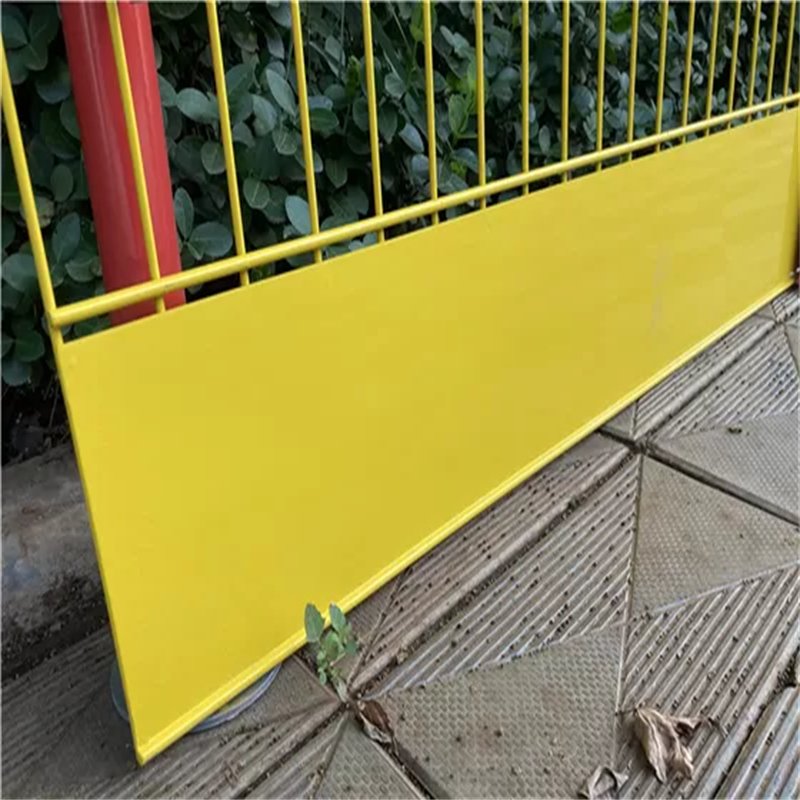

    • 4. The Edge Safety Protection Barriers can recycle many times. The Toe Board on the bottom of the Edge Protection Barriers is welded on the Bottom Wire to Prevent Small Stone falling, Avoid Hurting Somebody.

    20230327152851734-1



    20230327152852580-1

    Here are some applications for edge protection fencing:

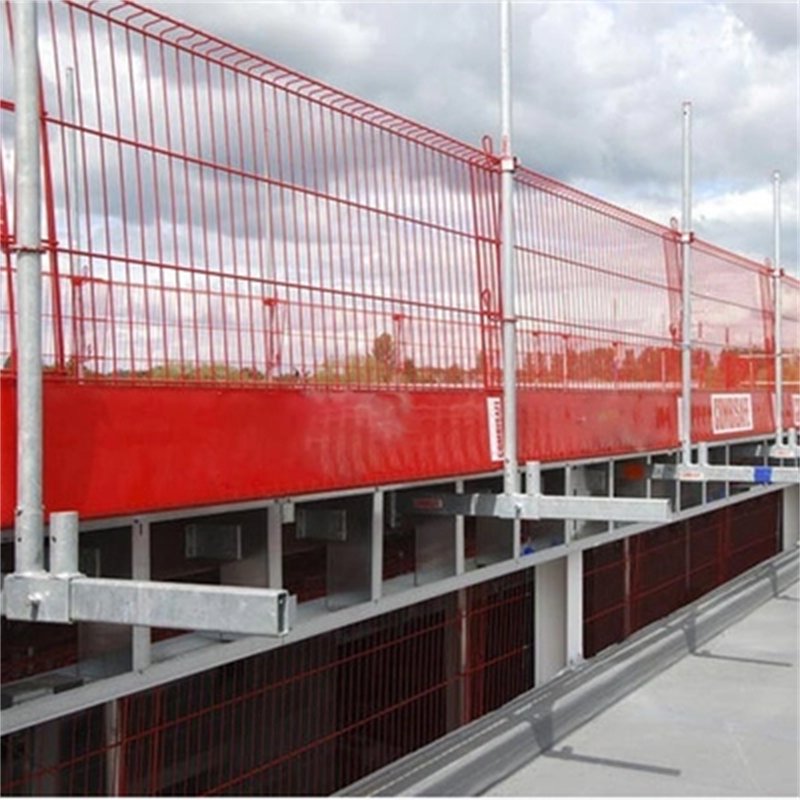

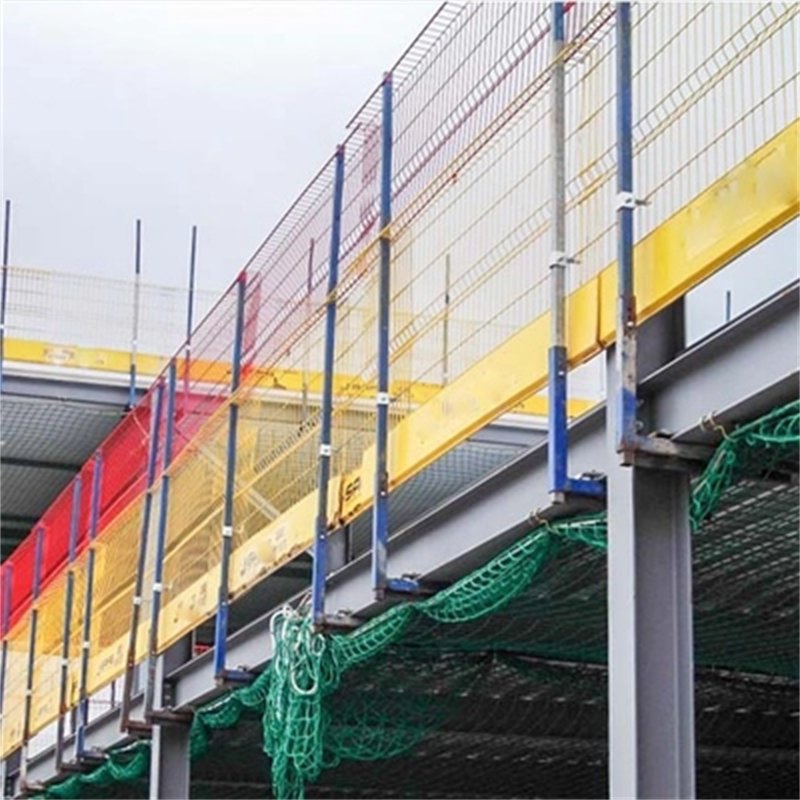

    • Construction Sites: It secures the perimeter of elevated work areas, scaffolding, and unfinished floors, preventing falls and ensuring worker safety.
    • Industrial Facilities: It provides safety barriers around mezzanines, platforms, and walkways, protecting personnel from potential falls.

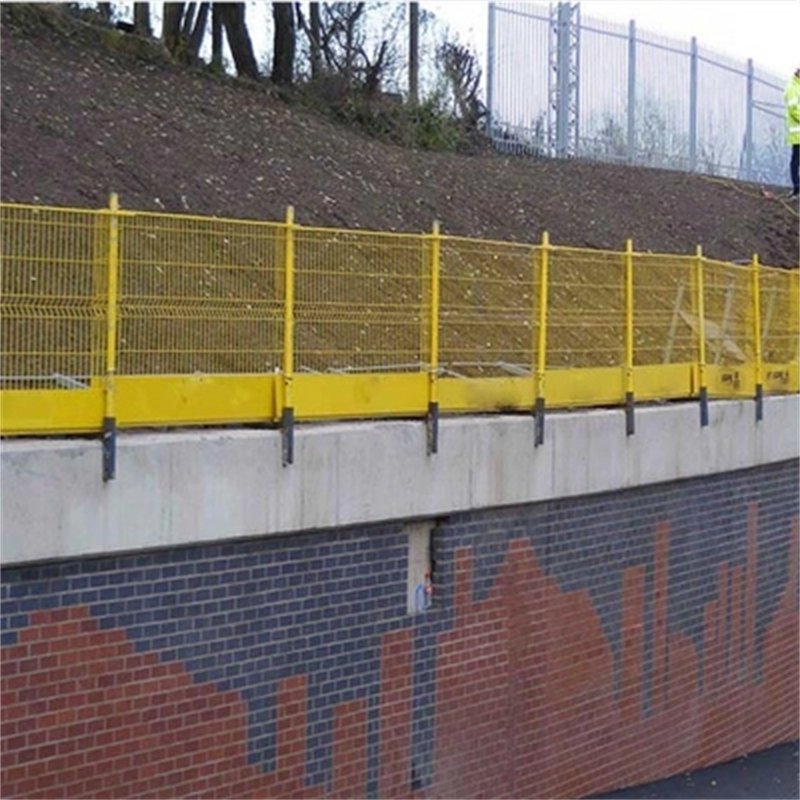

    • Infrastructure Projects: It safeguards workers and equipment during the construction of bridges, highways, and railways by preventing falls from elevated surfaces.
    • Maintenance and Renovation: It protects workers and pedestrians during maintenance or renovation activities by securing open edges on buildings and other structures.
    • Event Staging and Temporary Structures: It secures temporary structures like stages and grandstands, ensuring the safety of attendees and staff.
    • Public Spaces: It restricts access to hazardous areas around public infrastructure projects, maintaining public safety.
