Edge Protection Barriers: Lightweight and Versatile Safety Fencing
- Name: Edge Protection Fence
- Wire Diameter: 54mm, 65mm, 8*6mm

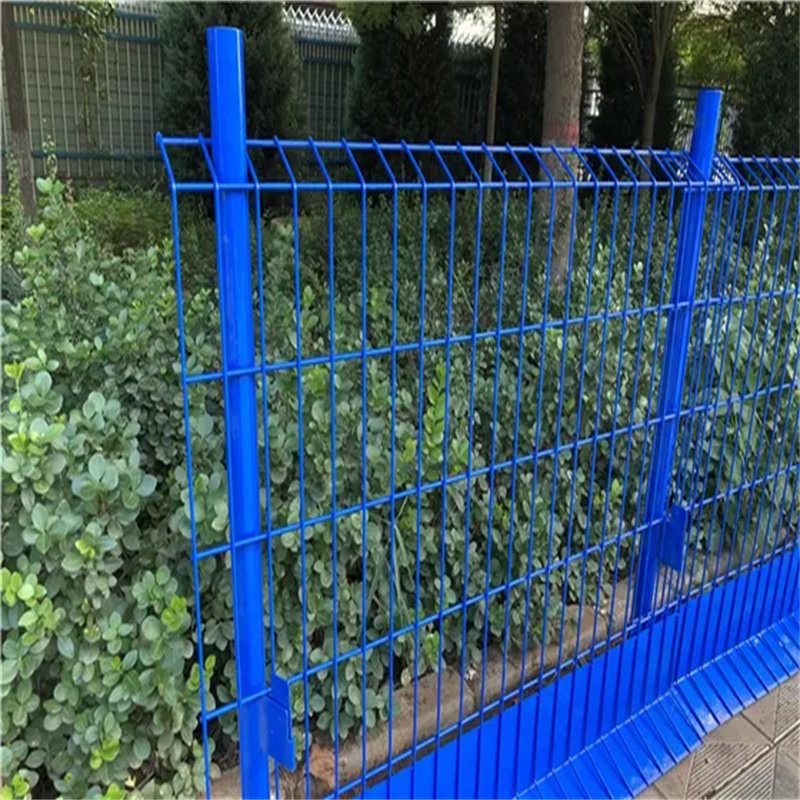

- Mesh Size: 75x75mm, 50x100mm, 50*200mm
- Length: 1.5m, 2.0m, 2.5m, 3.0m
- Height: 1.3m, 1.4m, 1.5m, 1.6m
- Bending Degree: 60°, 90°, 120°

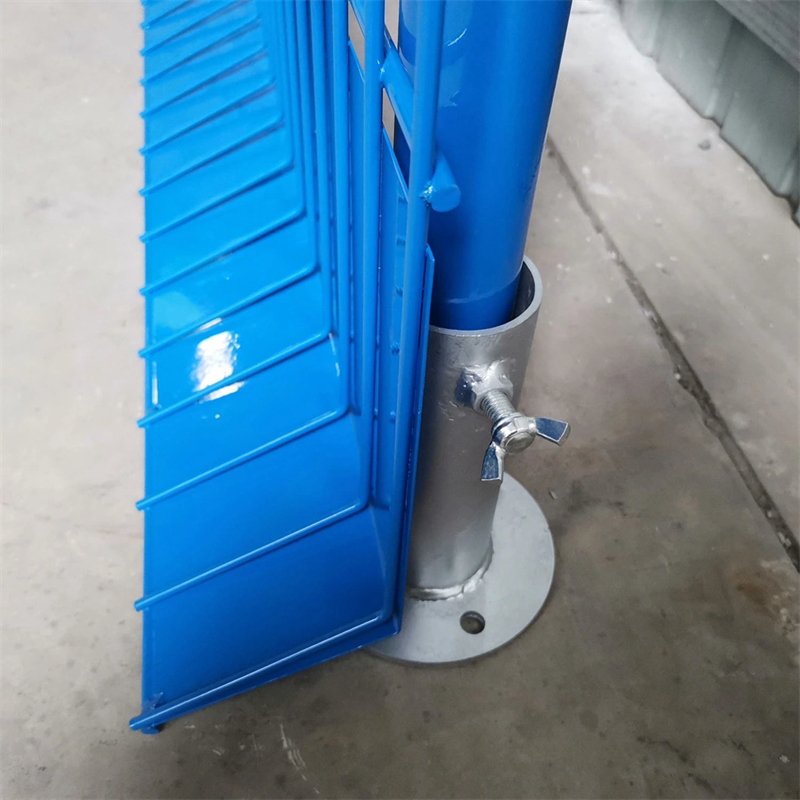

- Round Post: 48x2mm, 60x2mm
- Square Post: 50x50x2mm, 60x60x2mm
- Color: Yellow, Blue, Red
- Transport Package: Steel Pallet
- Specification: Wire Dia. 5mm4mm, Mesh size 7575mm, Length 1.5m
- Trademark: BMFence
- Origin: Anping, Hengshui, China
- HS Code: 7308900000
- Price: $18.22 - $49.33 per piece
- Description

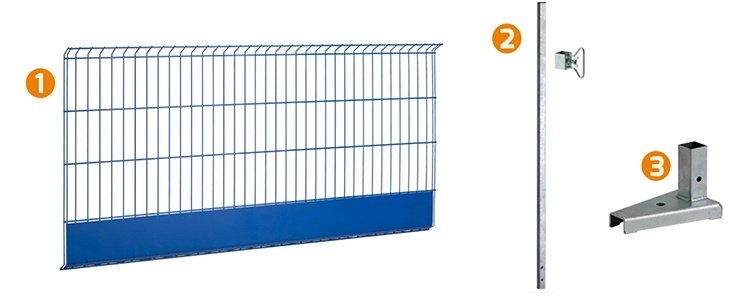

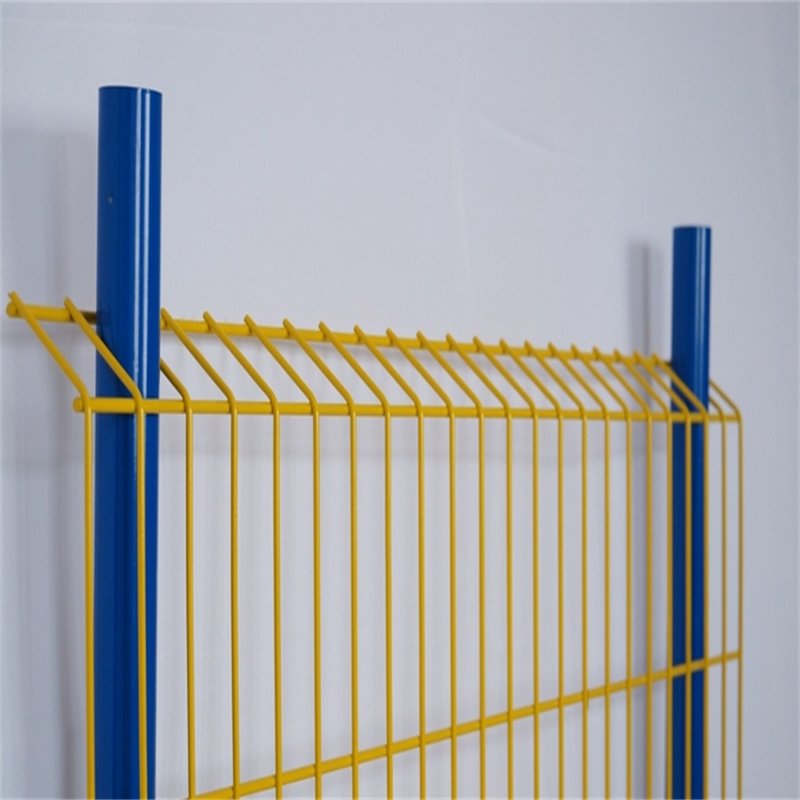

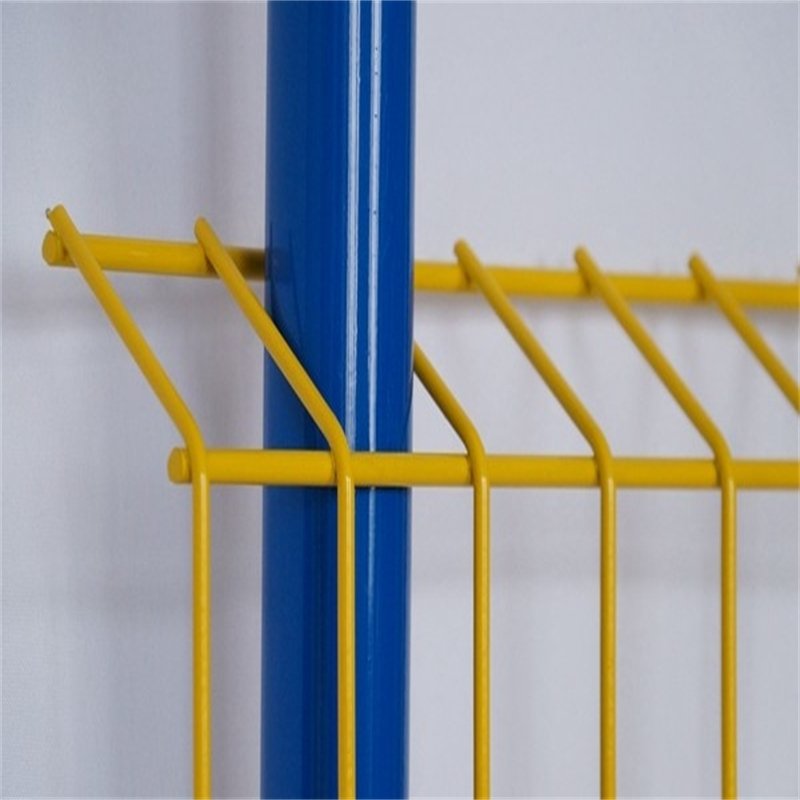

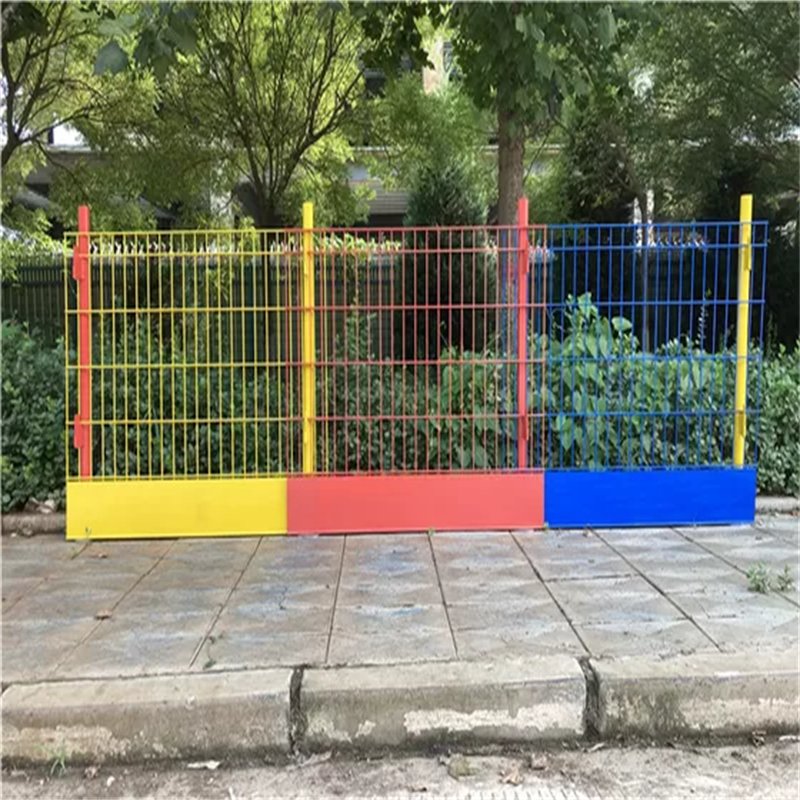

Edge Protection Barriers are Lightweight, versatile Edge Protection fence that provides hard-mesh coverage with impact-absorbing capacity. Each weld can withstand a force of 500kg. Designed with closed return for more excellent debris containment and reinforced edges to prevent site damage. Guardrails, toeboard and debris mesh in one product.
 |
 |
 |
 |
Specification
Edge protection barriers, also named Steel Mesh Barrier, is a new simple update design from wire mesh fence. It is easier to operate, and fast installation can save time during construction. The steel mesh Barrier is prevalent among contractors as it can use more time, is portable, and is easy to install and remove. Many contractors located in the Middle East UK often use this kind of Fence and import it from our facility.
| Wire Diameter | Mesh Size | Length | Height | Feature | Post |
| 4.0MM 8.0MM |
75*75mm
50*100mm
50*200mm
|
1.5-3.0.m | 1.3-1.6m | BS EN 13374 Class A | Lock Post |
Simple Description for Edge Protection Steel Mesh Barrier
| Wire Diameter of Edge Steel Mesh Barrier |
It can be from 5.0mm to 8.0mm; usually, the horizontal Wire afford
more impact used thicker Wire.
|
| Mesh Hole of Edge Protection Fence | Common Mesh Aperture |
| Panel Size of Steel Mesh Fence | Standard Size: 1150*2600, Also can make customised |
| Toe Board at the bottom of the Fence | Length accord with Steel Mesh Panel Length |
| Raw Material of Steel Fence | Low Carbon Steel Wire or Galvanized Wire ( Q195 ) |
| Surface Treatment of Mesh Fence | Galvanized, Powder Coated |
| Colour after Powder Coated | Silver, Natural Color, Red, Blue, White and other RAL Series. |
| Package for Steel Barrier System | Usually in Metal Pallet or Customized |
Specification for Edge Protection Fence Barrier / Steel Mesh Barrier
| Type | Border Wire | Mesh Wire | Length | Width | Colour |

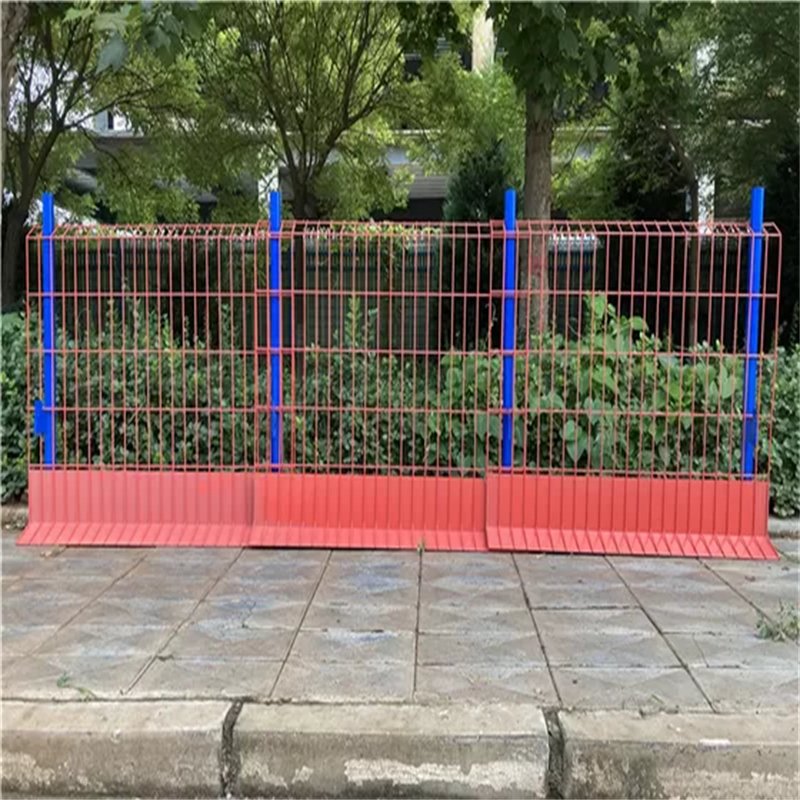

| Steel Mesh Barrier with Toeboard | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier Without Toeboard | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier Make-Up | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier 1.3M | 8.0mm | 5.0mm | 1300mm | 1150mm | RAL Series |
| Steel Mesh Barier Make Up 1.3M | 8.0mm | 5.0mm | 1300mm | 1150mm | RAL Series |
Application Edge Protection Barriers

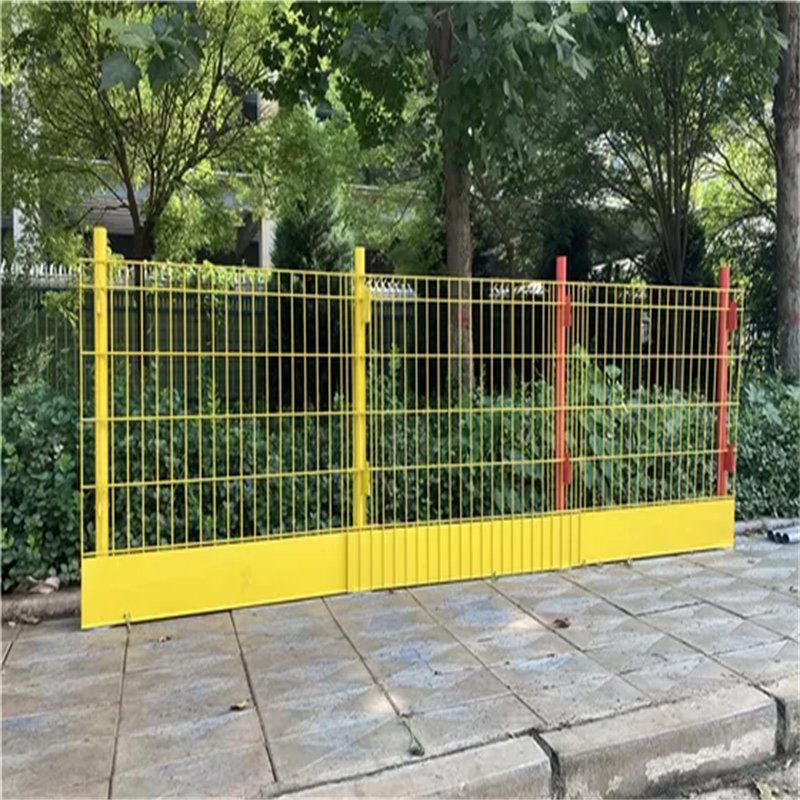

- Temporary Roof Edge Protection Barriers
- Pontoon Mesh Edge Protection System For Floating Platforms
- Fall Prevention of Edge Protection Fence
- Edge Protection Fence for Walls & Shafts
 |
 |
 |
 |
Advantages of Edge Protection Barrier:
1. Temporary Roof Edge Protection Barriers Because it is easy to install and remove, It is often used as the protection Wall at the border of the building to protect people were falling, also.
Prevent items from falling.
2. Pontoon Mesh Edge Protection System For Floating Platforms Stand the Edge Protection Welded Fence around the Floating Platforms, to inform a small place, let people safer.

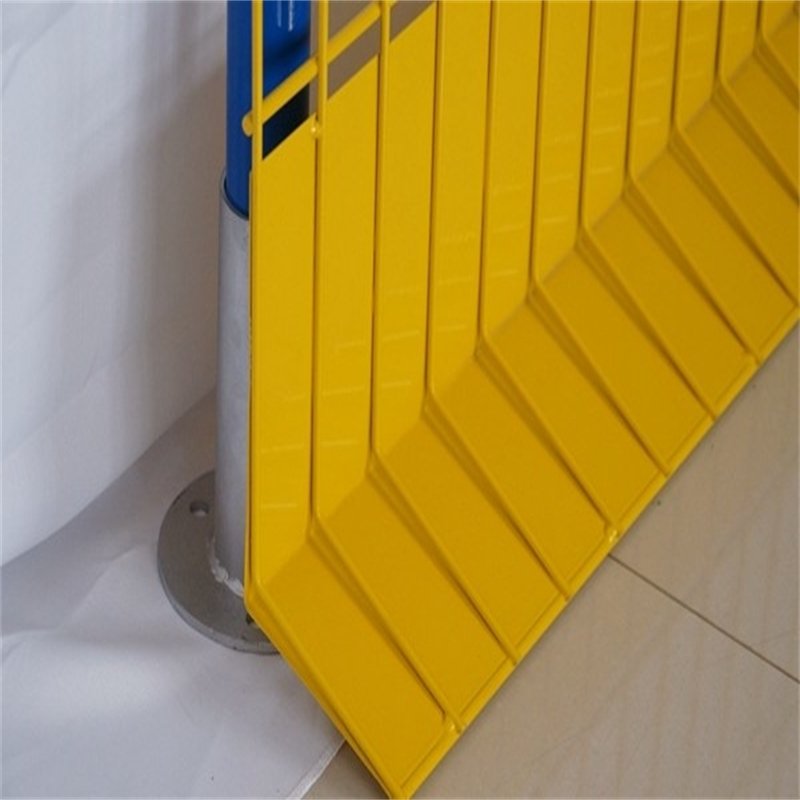

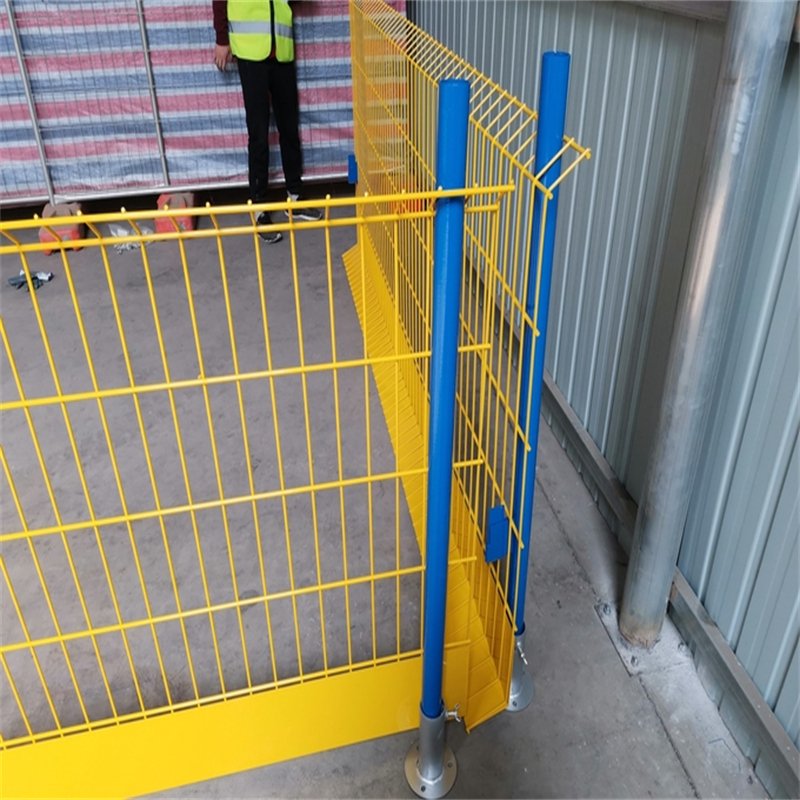

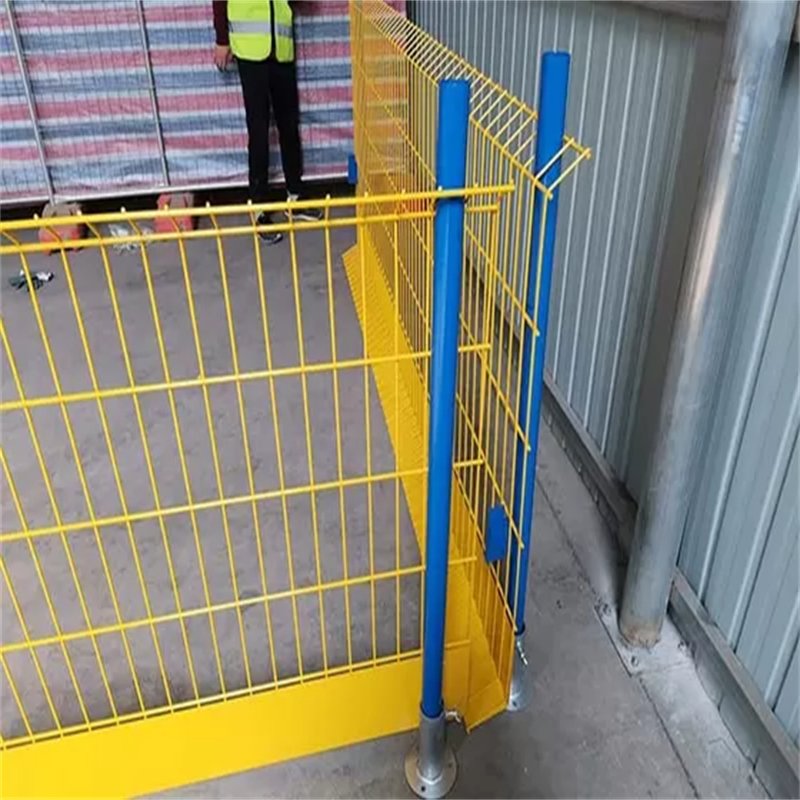

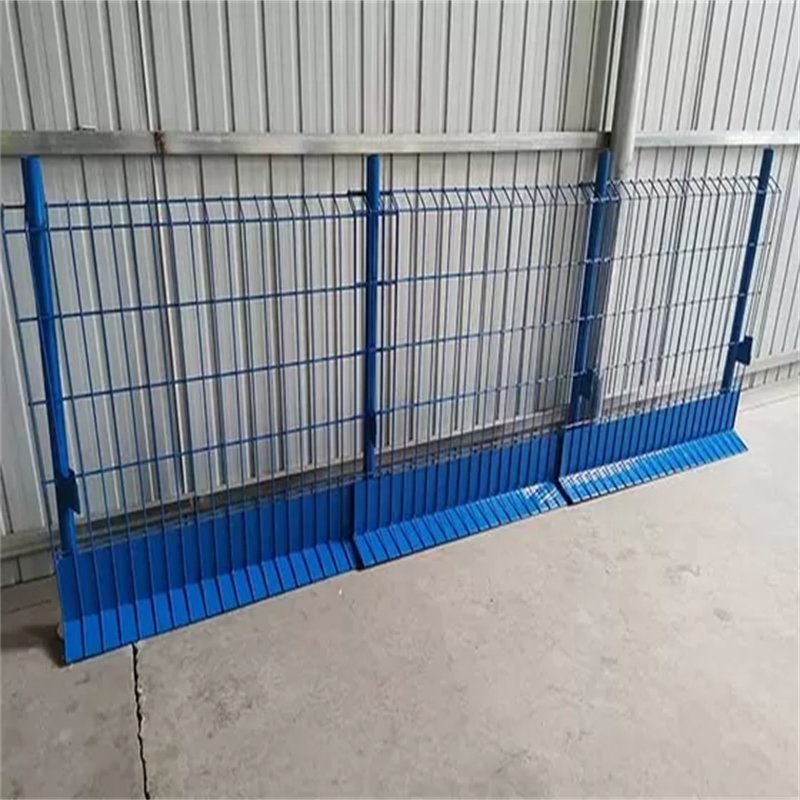

3. Fall Prevention of Edge Protection fence at the bottom of the Protection Barrier, Toeboard can prevent Sand small stones from Falling.
4. Edge Protection Fence for Walls & Shafts It also can act as a fence or a wall for protection.
