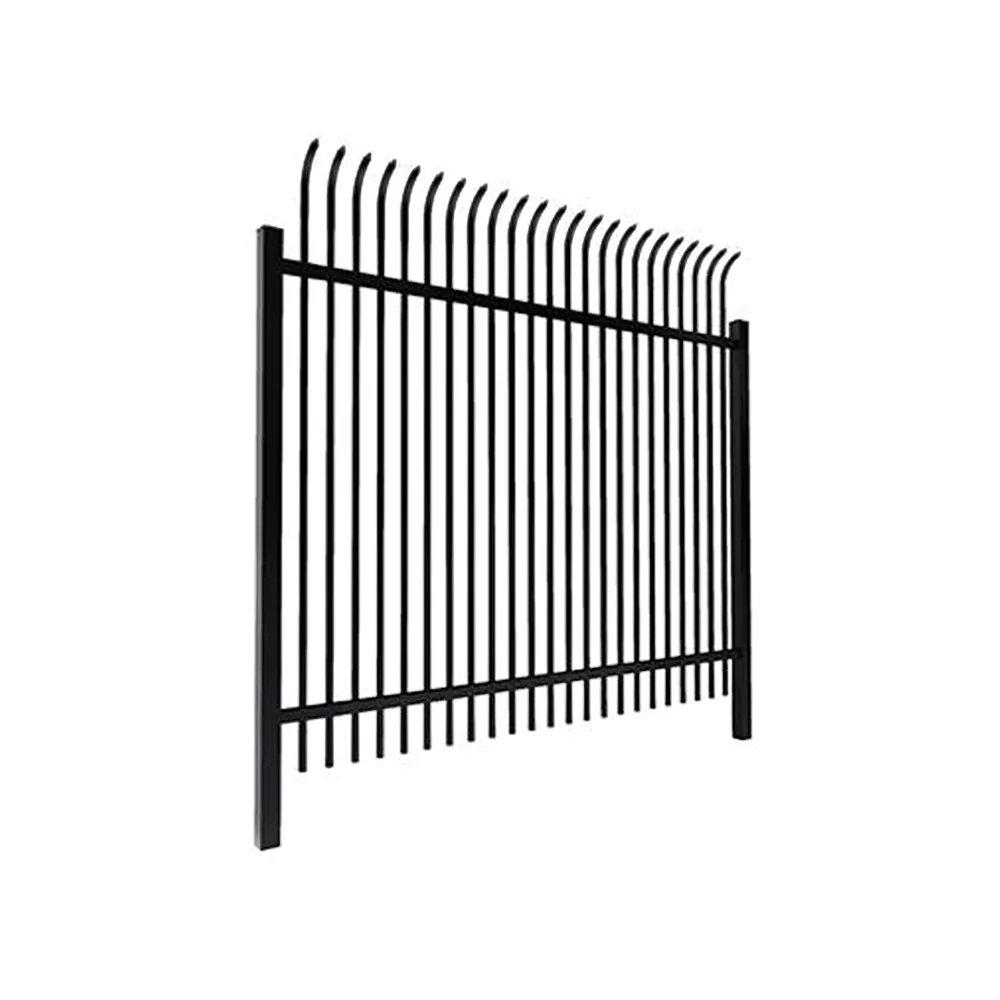

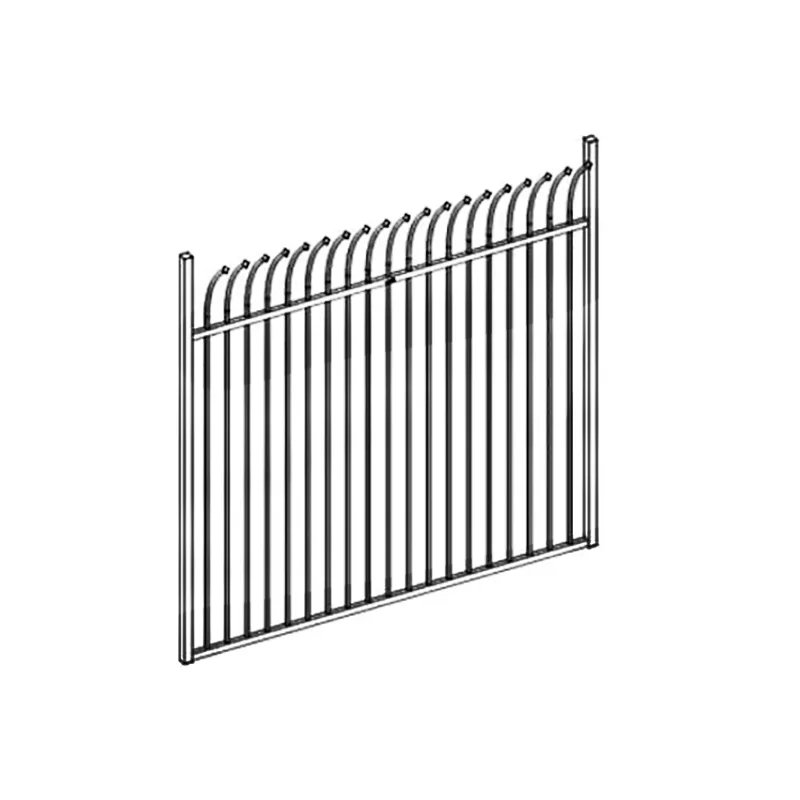

Curved Spear Top Fence

The Curved Spear Top Fence combines ornamental appeal with real security. Vertical pickets arc into a graceful curved spear profile that runs through the rails—delivering anti-climb performance, a distinctive look, and low maintenance (no frequent repainting like traditional wrought iron). Built from galvanized steel and finished with E-coat or powder coat, it’s made to stay strong and beautiful outdoors.

Why Choose It

• Stronger than aluminum: Stiff, durable steel won’t sag under load or stress.
• 360° hand welding: Every joint is fully welded for consistent strength and long service life.
• Corrosion protection: Pre-galvanized steel plus E-coating or powder coating for rust and weather resistance.
• Complete system: Pairs with matching posts, rail brackets, and curved spear top gates for a cohesive, robust install.
• Low upkeep: Smooth, durable finish minimizes maintenance.

Standard Sizes & Specifications Curved Spear Top Fence

• Rails: 2

• Panel width: 94″ (≈ 2388 mm)

• Panel heights: 82″ (≈ 2083 mm), 94″ (≈ 2388 mm)

• Rail section (as specified): 1-37/64″ × 1-3/16″ × 1-37/64″, 12 ga (verify on project drawings)

• Pickets: 3/4″ (19 mm), 16 ga

• Material: Steel

• Finish options: E-Coating or Powder-Coating

• Color: Black standard; custom colors available

• Customization: Sizes, materials, and processes can be tailored to your spec.

Product Details Curved Spear Top Fence

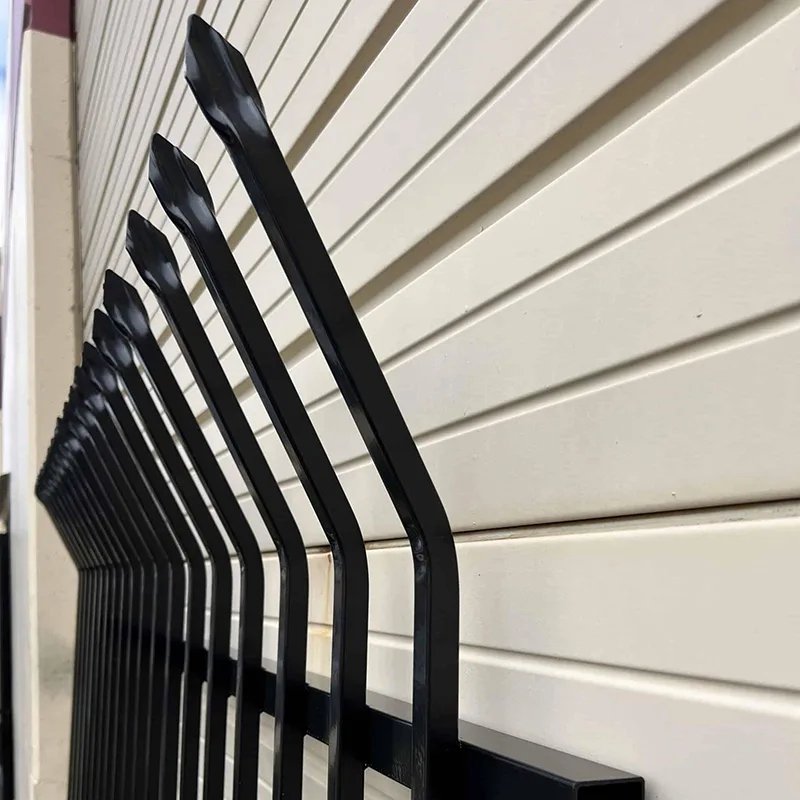

• Design: Curved spear tips enhance aesthetics and climbing resistance.

• Build: High-quality steel with smooth edges for safe handling and use.

• Install: Modular structure for easier installation and maintenance.

• Options: Standard 82″H × 94″W panels; custom sizes/colors on request.

Advantages

• Security + style: Curved spear profile elevates appearance and deters scaling.

• Long service life: Galvanized substrate + high-adhesion coatings resist cracking, rust, and weathering.

• Faster projects: Rigid welded panels can be pre-assembled to shorten on-site time.

• Cost-effective: Minimal routine maintenance over the life of the fence.

Matching Accessories Curved Spear Top Fence

• Black fence rail mounting brackets

• Black metal flanged posts (surface-mount or in-ground)

• Square metal post caps

• Screws/fasteners

• Steel Welded Commercial Curved Spear Top Gate

Production Process Curved Spear Top Fence

1. Material verification: Select and confirm galvanized steel per drawings.

2. Cutting: Size tubes to length.

3. Punching/Milling: Create mounting holes in rail members.

4. Flattening (as needed): Prepare components per design.

5. Welding: 360° weld the full frame/panels.

6. Blasting (whip/shot blasting): Remove slag and contaminants; texture the surface.

7. Surface pretreatment: Phosphating + pure-water rinse to boost coating adhesion.

8. Coating: Powder spray (epoxy-polyester primer + MetaPrep topcoat) and cure.

9. Quality control: Inspect every panel for strength, wall thickness, and coating thickness.

10. Packaging: Professional packing for safe, damage-free transport.

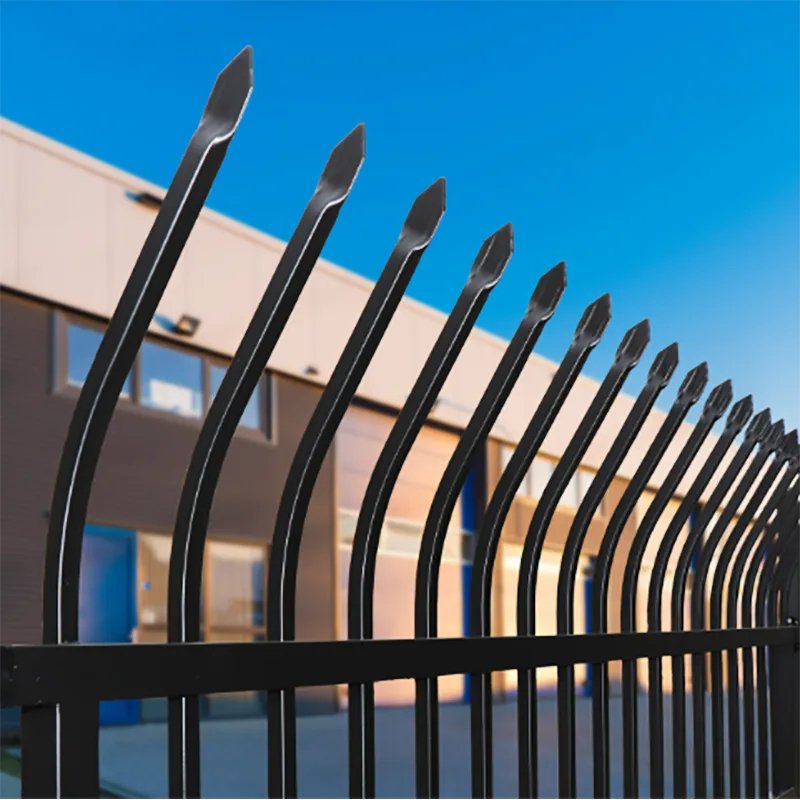

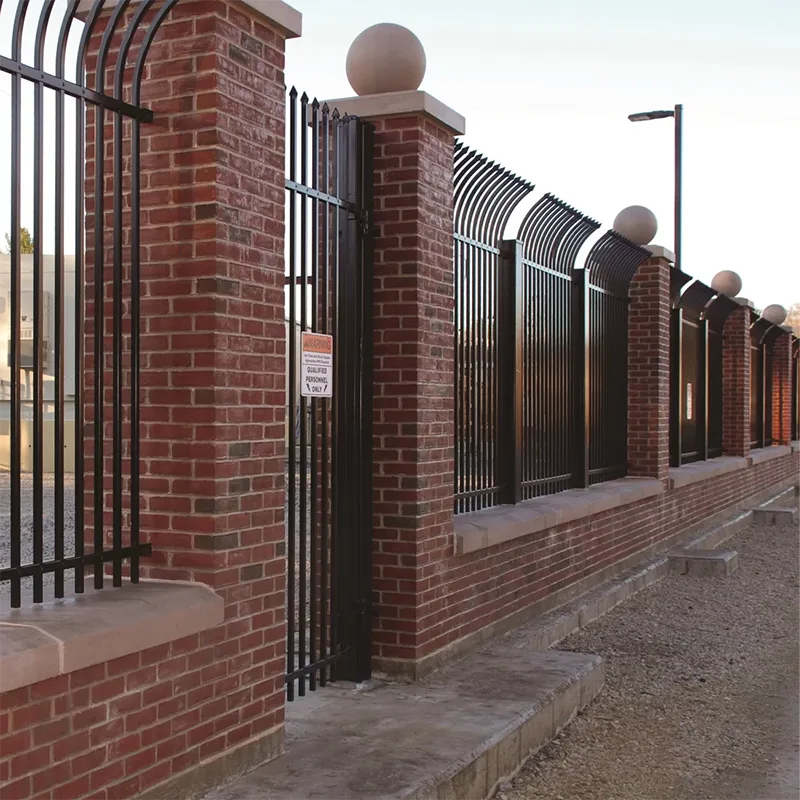

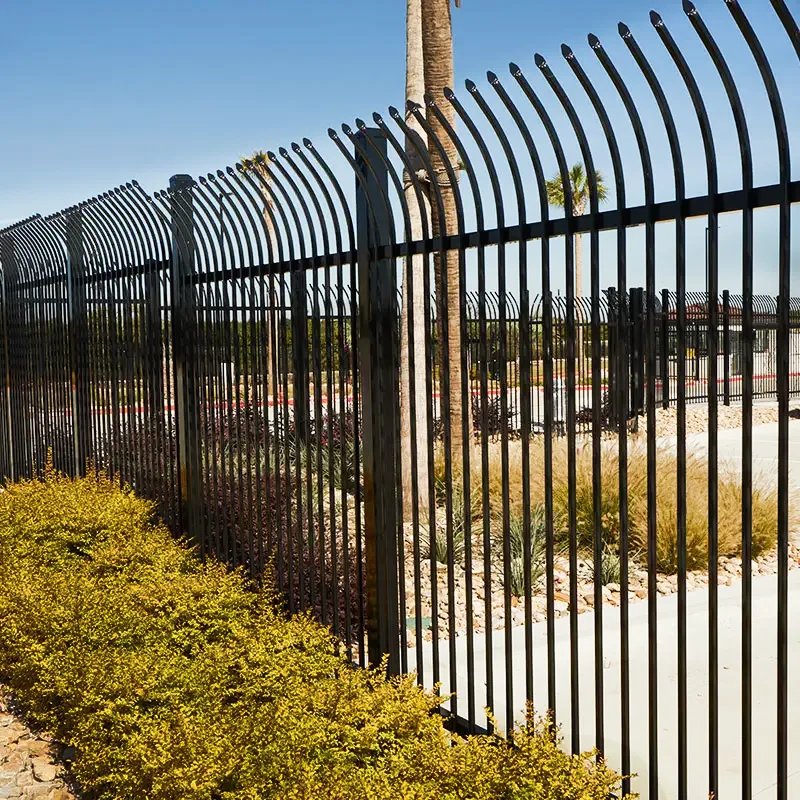

Applications Curved Spear Top Fence

• Residential & estates: Gardens, lawns, and perimeters needing elegance and security.

• Commercial & industrial: Shops, warehouses, factories, industrial parks.

• Public & infrastructure: Schools, parks, airports, stations, roadsides, and other protected zones.
