Cattle Panel: A Heavy-Duty Solution for Durability and Reliability

Model NO.: BMP-CP1
Weave Technique: Welded
Material: Iron
Main Market: Australia, New Zealand, America
Panel Type: Round Pipe, Square Pipe, Oval Pipe
Popular Size: 1.8 M X 2.1 M
Rail Number: 6 Bars, 5 Bars
Vertical Pipe: 42 mm OD, 40 mm X 40 mm Pipe, 50 mm X 50 mm
Weight: About 40 Kgs/PC
Accessory: Lugs, Pins, Caps, Chain
Application: Protect Animal in Safe Place
Drawing Picture: Can Be Sent
Sample: Free
Surface: Hot-DIP Galvanized
Welding: 360 Degree Full Welded
MOQ: 220 Pieces
Company Logo: Supply
Production Time: 15 Days

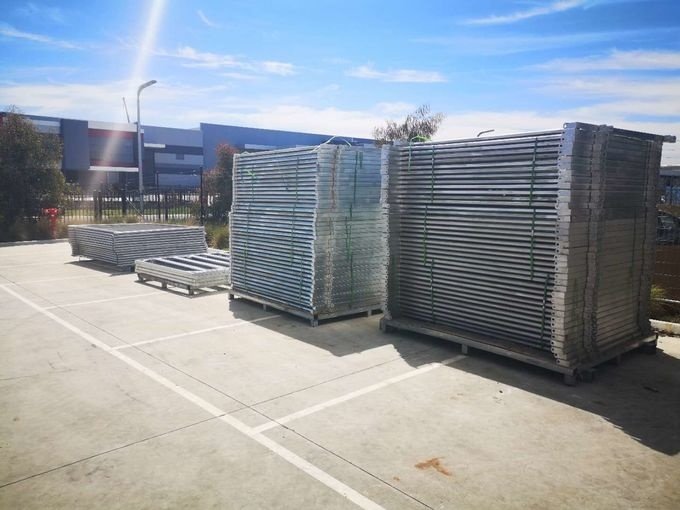

Transport Package: 80 PCS Pack on Galvanized Steel Pallet
Specification: 1.8 m high x 2.1 m long
Trademark: BMP
Origin: China
HS Code: 73089000
Production Capacity: 1000 Sets/Day
Price: $23.49 - $52.99 per piece

enquiry

Description

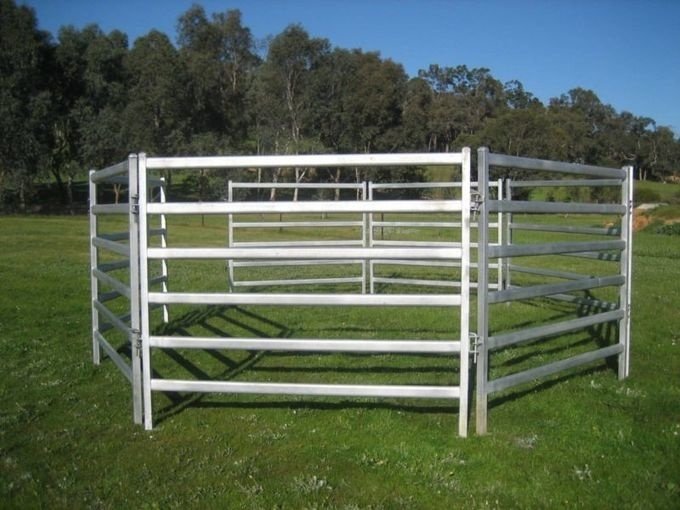

Introducing our top-range cattle panel, a superior heavy-duty solution designed for durability and reliability. Constructed with 50mm x 50mm uprights that are 1.6mm thick, this panel features five oval rails measuring 120mm x 30mm with a thickness of 1.8mm. Each panel comes equipped with pins and brackets for secure interlocking, metal caps to prevent water ingress, and bottom plates to ensure stability when anchored to the ground. Built from premium galvanized steel and chain link mesh, this product is exceptionally sturdy, offering confidence in its structural integrity. Our standard galvanized cattle fence boasts six rails, measuring 2.1m in length and 1.8m in height. Custom lengths and heights are available to meet specific customer requirements.

Why choose us?

1. All of our goods will pass a quality inspection before shipping them out.

2. Best after-sale service, a customer can follow their order situation, no matter production line, wSheepuse or shipment.

3. More than 6 years of experience in export to handle your order more smoothly.

4. Less than one container loading is accepted.

5. On-time delivery, in general, 20-30 days.

6. Multimode payment, L/C, T/T, etc.

7. Special dimension is available according to your request.

Advantages of Cattle Panel

Our cattle panel with many advantages list as the following

1. Portable: easy, fast to handle (sheep, remove and put down), makes the fence panel very flexible.

2. Robust: the interlocking system makes the fence very stable; quality steel and fully welding make

the panel stronger; heavy-duty and anti-broken; high zinc or PVC coated to make the fence

durable.

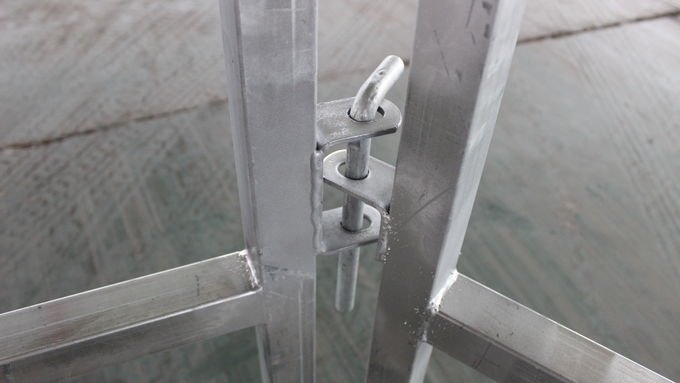

3. Environment Protection: connection with welded bracket lugs and joining pins; no need to dig

holes or lay foundations. And it benefits grassland protection.

4. Livestock Protection: no sharp edge, very smooth welding spot finished

5. Cost-effective: give your corral years of service and minimal maintenance at a low initial cost

Details

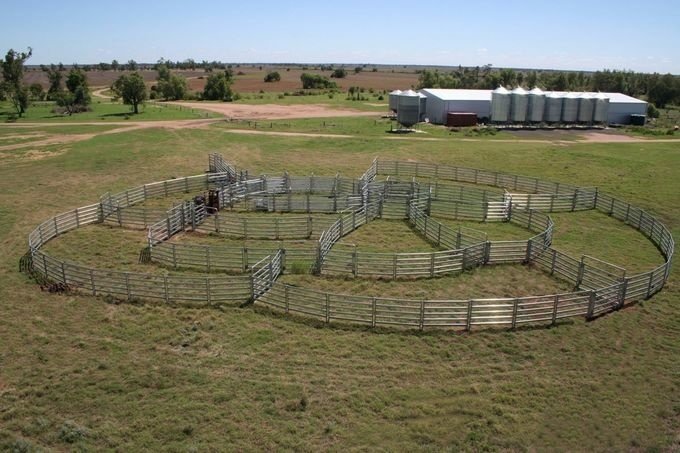

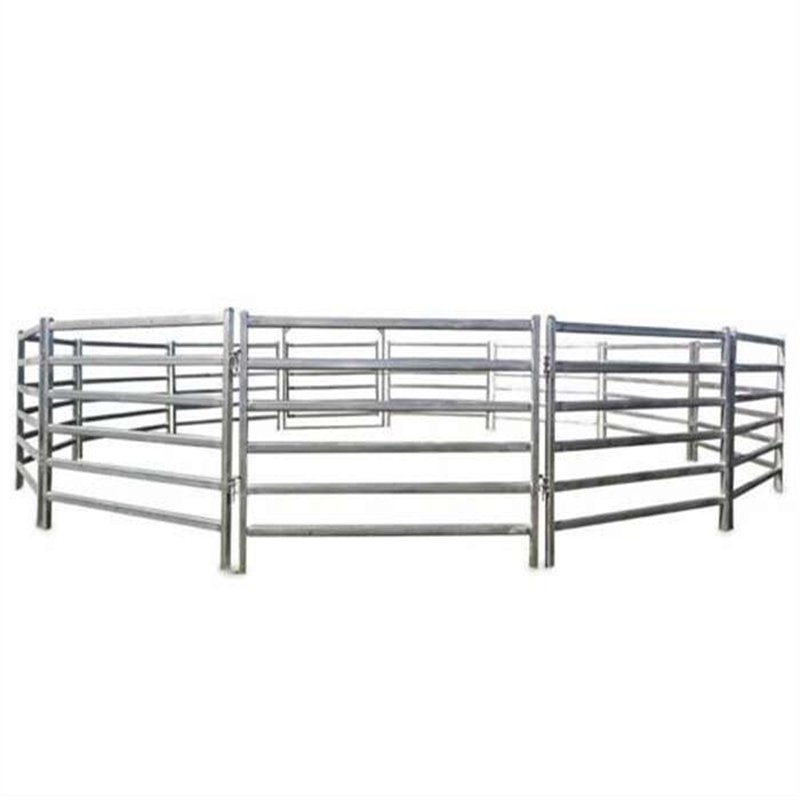

A cattle yard panel, also known as a cattle panel, horse panel, livestock panel, or corral panel, features welded hot dip galvanized pipes for fencing livestock such as cattle, cows, bulls, calves, dairy sheep, goats, and dogs. BMP supplies quality cattle panels, horse panels, sheep panels, and custom-made panels suitable for all livestock. All products use high-quality pre-galvanized RHS and pipe. A versatile cattle panel with rounded edges functions as a cattle panel, horse panel, or sheep panel. Extra C and L lugs integrate panels into an existing yard.

Corrosion protection includes hot-dipped galvanization or paint.

Features: Install quickly and easily without disturbing the surface area by digging holes or laying foundations.

Description of Cattle Yard Panel:

1. 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.
2. Complete with Caps & Footplates.
3. Holes for the ground pin on one leg of each panel.

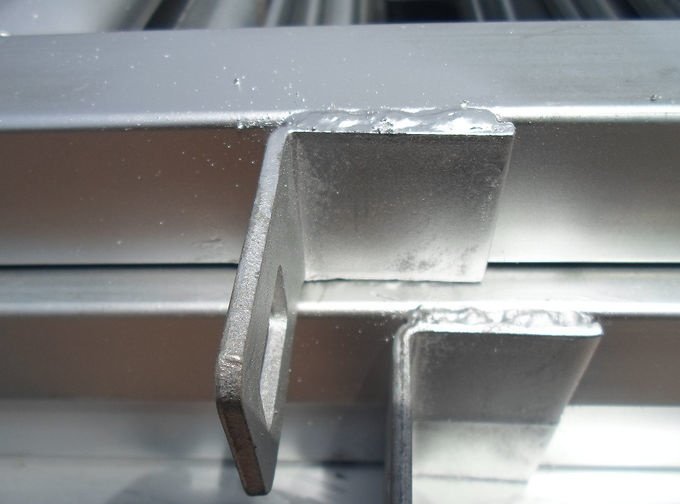

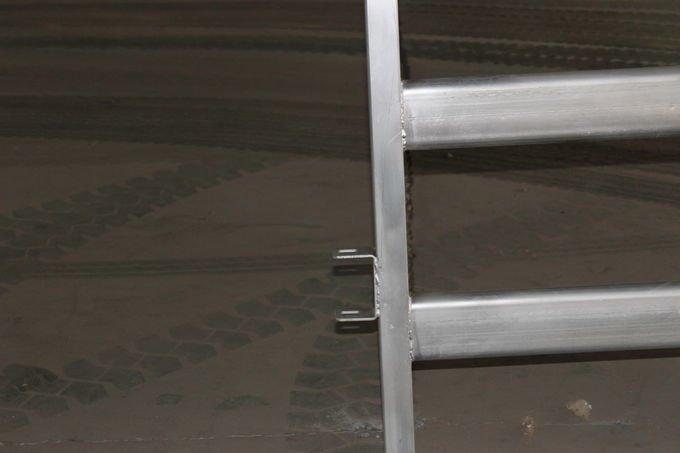

4. Elongated lug holes in brackets for ease when connecting.

Specification cattle panel

Specification	Normal size
Height x Length	1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m ,1mx2.9m and so on
pole style	Round pipe or square tube or oval tube
Pole specification	32mmO. D, 42mmO. D, RHS40mm, RHS50mm, and so on
Package details	In steel pallets or bulk
Different specifications are available according to customers’ particular inquiries or detailed drawings.

Livestock and Cattle Panels Specifications

Type	Description	Height x Length	Pipe Details
Round Style Livestock Panels – Style 1	Hot-dipped galvanized cattle panels	1.8×2.1m	Round pipe: 40mm OD x 1.6mm thickness, 2 joining pins supplied
Round Style Livestock Panels – Style 2	Hot-dipped galvanized cattle fence	1.8×2.1m	Round pipe: 32mm OD x 1.6mm thickness, 2 joining pins supplied
Oval Tube Style Cattle Panel	Hot-dipped galvanized cattle panels	1.8×2.1m	Vertical pipe: 40x40mm RHS x 1.6mm thickness, Horizontal pipe: 30x60mm oval rail or 40×80 oval rail x 1.6mm thickness, 2 joining pins supplied

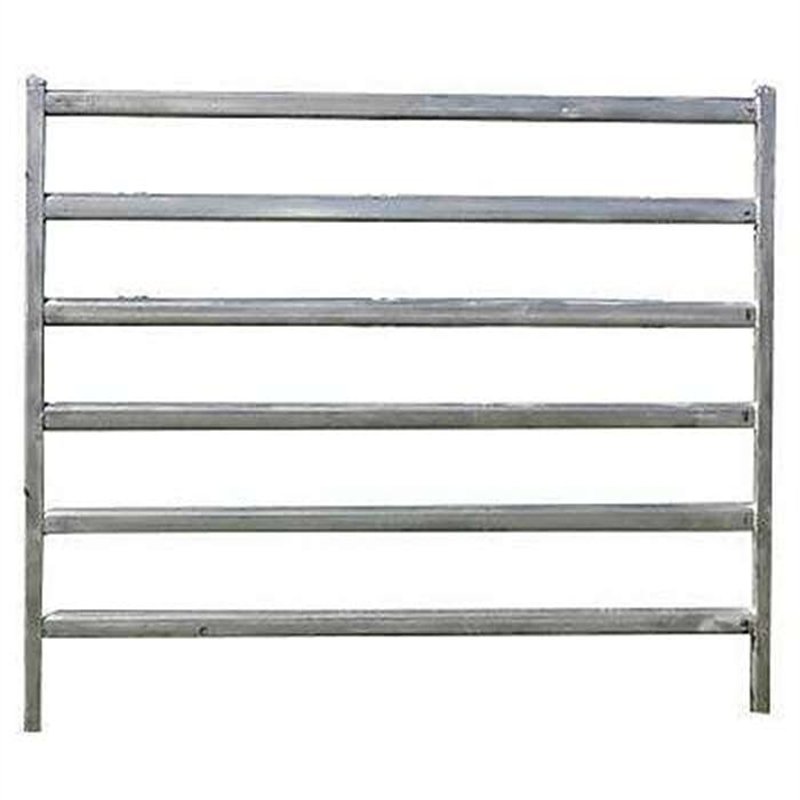

Square Tube Style Livestock Panel	Hot-dipped galvanized cattle panels	1.8×2.1m	Square pipe: 40x40mm RHS x 1.6mm thickness, 2 joining pins supplied
Sheep/Goat Panel	Size: 1m(H)x2.9m(L) or as your requirements	1m(H)x2.9m(L)	Square tube, round tube, or oval tube

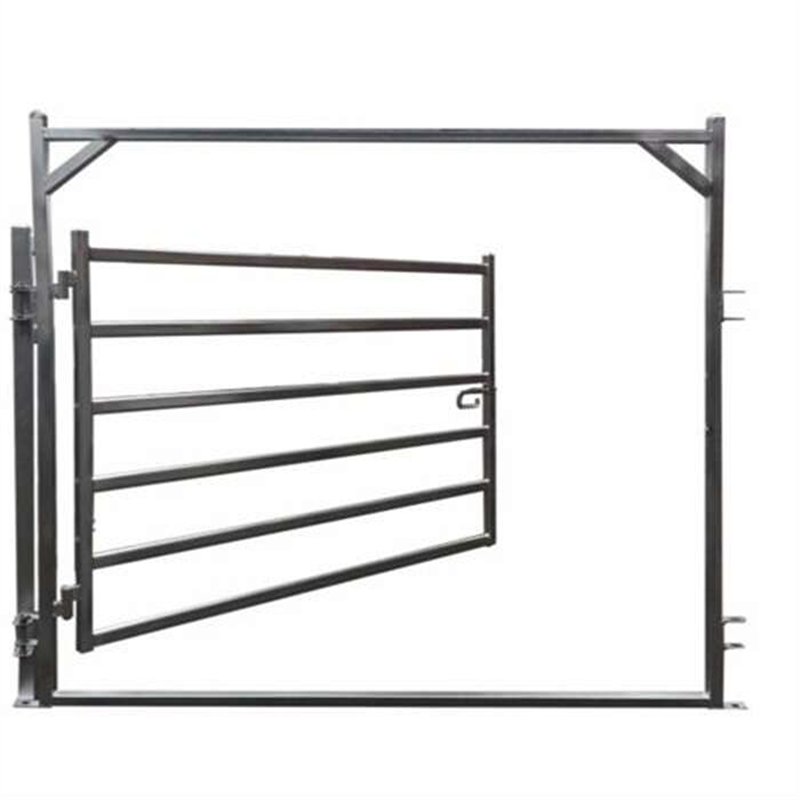

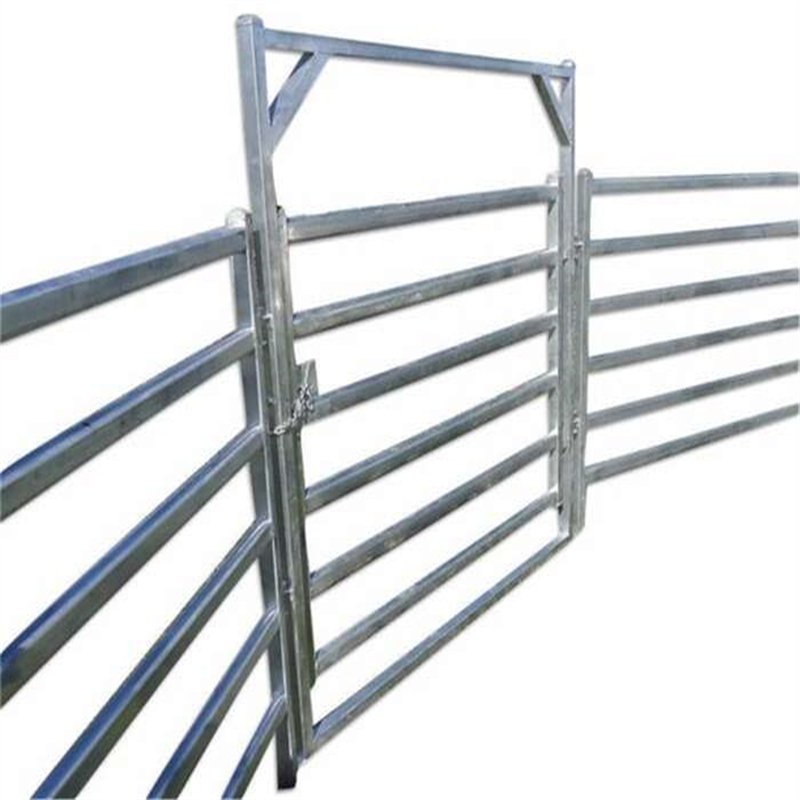

Panel Gate	Outside frame 2250mm (high) x 2100mm (long) x 40x40mm x 1.6mm square tube	Gate 1800mm (high) x 2030mm (long)	Gate: 30X60mm x 1.6mm oval tube – 6 bar, Hinges: 2 Hinges to support gate, Catch: Slam catch
