Crowd Control Barriers Dimensions Top 12 Options

crowd control barriers are crucial for managing large crowds, ensuring public safety, and maintaining order at events, construction sites, and roads. The right crowd control barriers dimensions play a significant role in their effectiveness. Choosing the correct size ensures durability, stability, and easy deployment across different environments.

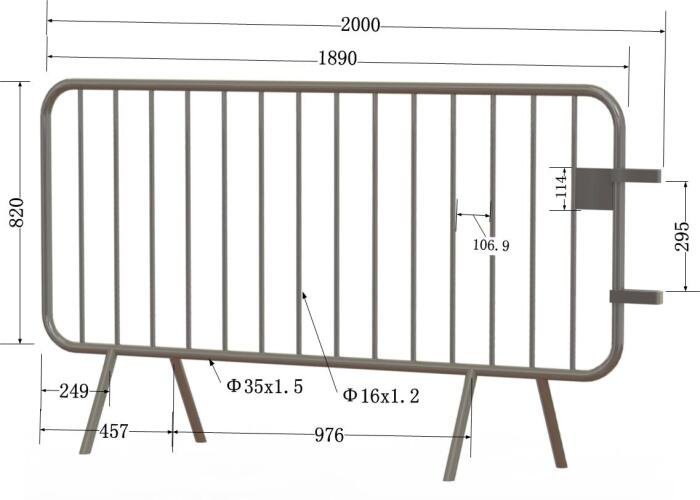

1. 2000mm Wide crowd control barriers dimensions

• Dimensions: 2000mm (width) x 820mm (height)
• Frame Tube: Φ35mm x 1.5mm
• Infill Tubes: Φ16mm x 1.2mm
• Foot Spacing: 457mm
  This barrier is suitable for large public events where pedestrian safety is critical.

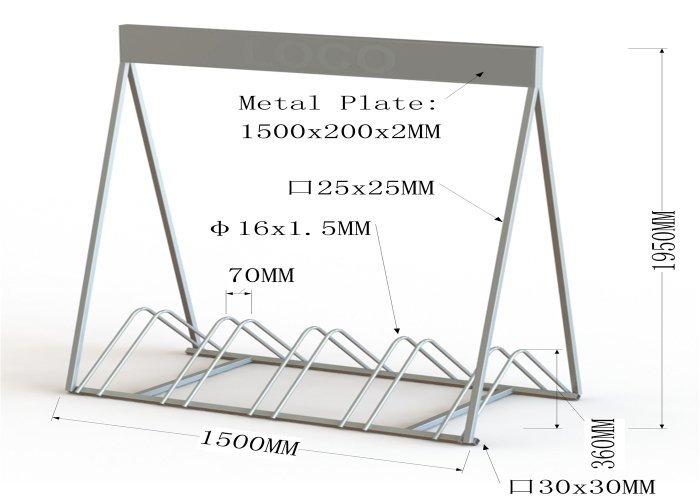

2. Bicycle Rack with Metal Logo Plate

• Dimensions: 1500mm (width) x 1950mm (height)
• Metal Plate: 1500mm x 200mm x 2mm
• Infill Rods: Φ16mm x 1.5mm
• Base Height: 360mm
  Perfect for organizing bike parking areas at events and public parks.

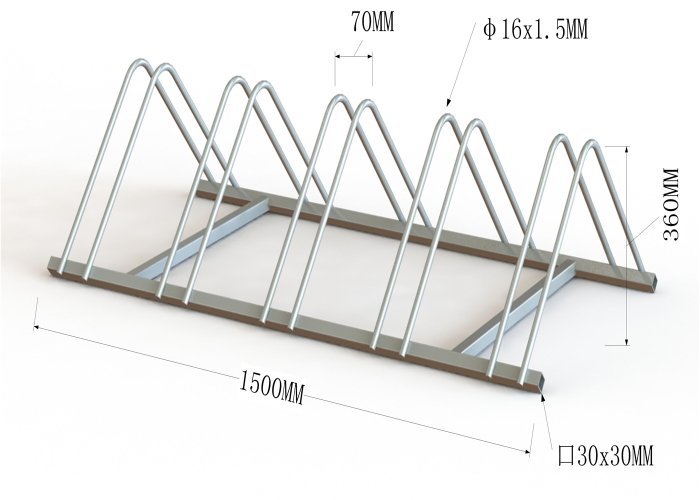

3. Horizontal Bicycle Rack Barrier

• Dimensions: 1500mm (width) x 360mm (height)
• Tube Size: 30mm x 30mm
• Infill Rods: Φ16mm x 1.5mm
• Rod Spacing: 70mm
  This model provides a reliable structure for parking bicycles in public areas.

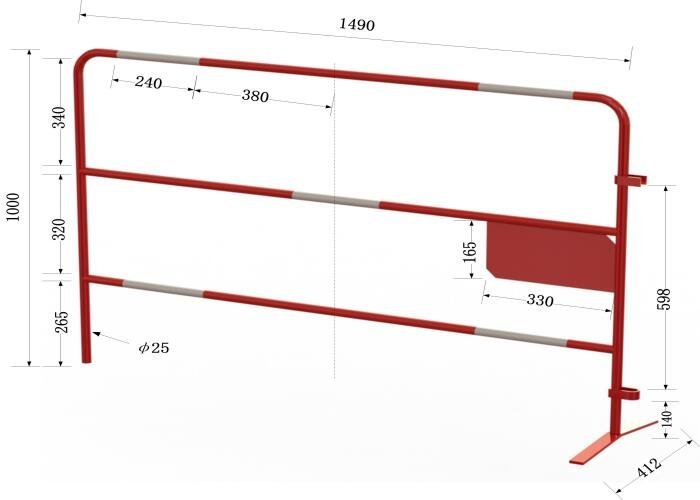

4. Red Road Safety crowd control barriers dimensions

• Dimensions: 1490mm (width) x 1000mm (height)
• Tube Diameter: Φ25mm
• Feet Length: 412mm
  This red-colored barrier, equipped with reflective tape, is ideal for controlling traffic and marking road closures.

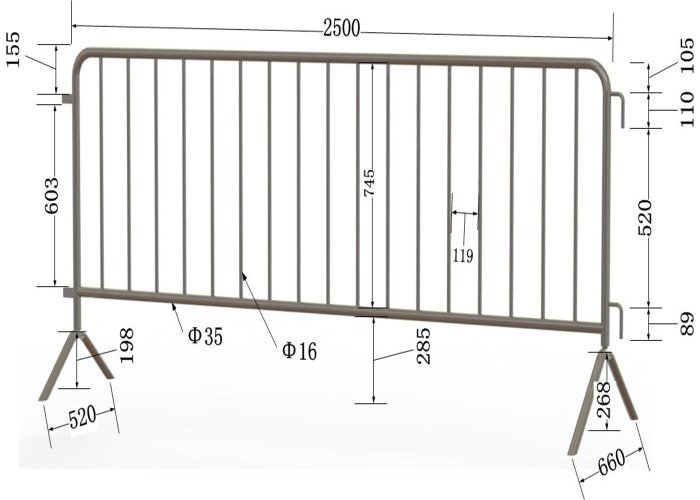

5. Heavy-Duty 2500mm crowd control barriers dimensions

• Dimensions: 2500mm (width) x 1100mm (height)
• Frame Tube: Φ35mm
• Infill Tubes: Φ16mm
• Feet Length: 520mm
  Designed for large-scale events, this barrier offers extra stability for high-traffic areas.

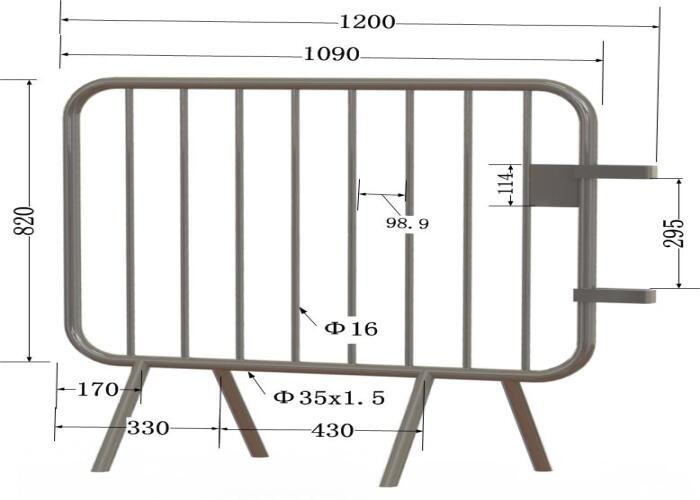

6. Compact 1200mm Barrier

• Dimensions: 1200mm (width) x 820mm (height)
• Frame Tube: Φ35mm x 1.5mm
• Infill Tubes: Φ16mm
• Feet Spacing: 330mm
  This smaller barrier fits well in compact spaces and smaller event areas.

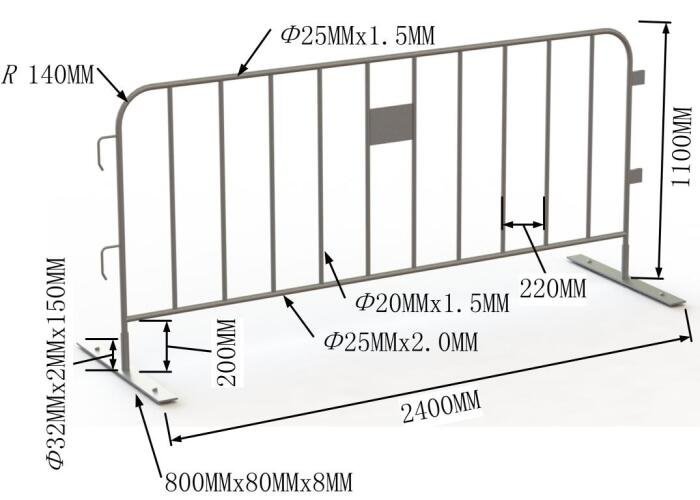

7. Extra Heavy-Duty Barrier with 2400mm Width

• Dimensions: 2400mm (width) x 1100mm (height)
• Frame Tube: Φ32mm x 2mm
• Infill Tubes: Φ25mm x 1.5mm
• Feet Dimensions: 800mm x 80mm x 8mm
  It is used in critical infrastructure sites and large construction zones where durability is key.

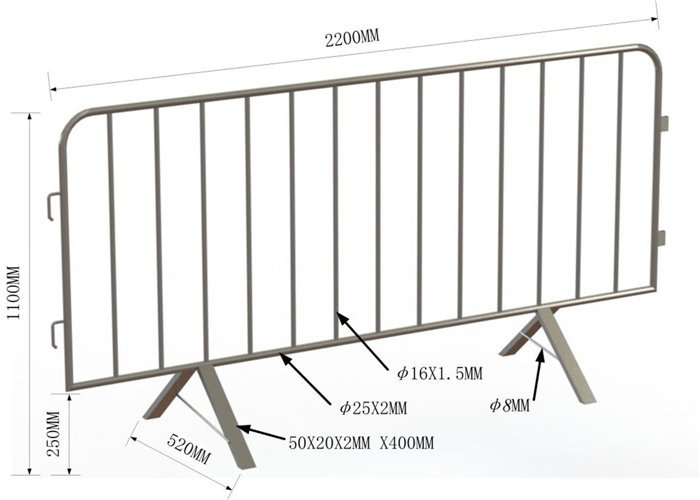

8. 2200mm Wide Barrier with Stable Feet

• Dimensions: 2200mm (width) x 1100mm (height)
• Infill Rods: Φ16mm x 1.5mm
• Base Tube: 50mm x 20mm x 2mm
• Feet Length: 520mm
  This barrier is perfect for pedestrian control in events and festivals.

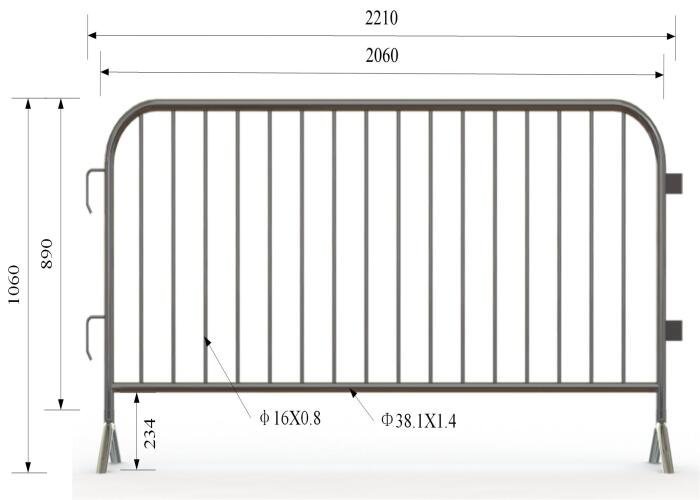

9. Barrier with 2210mm Width and Robust Frame

• Dimensions: 2210mm (width) x 1060mm (height)
• Frame Tube: Φ38.1mm x 1.4mm
• Infill Tubes: Φ16mm x 0.8mm
  This model works well for large public gatherings, offering stability and visibility.

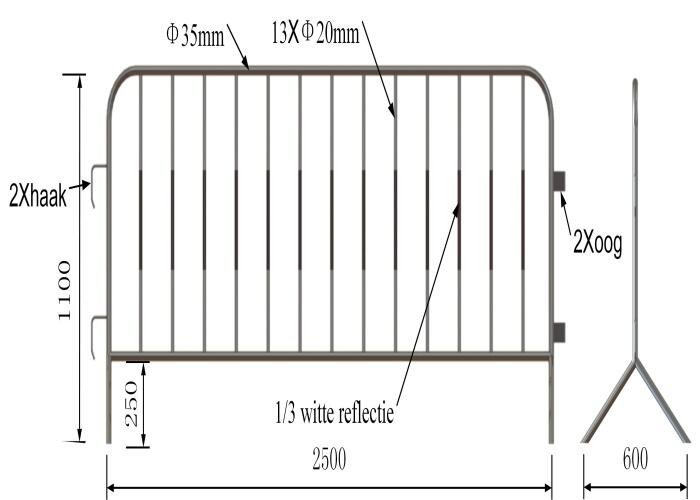

10. Dutch-Design Barrier with Reflective Strip

• Dimensions: 2500mm (width) x 1100mm (height)
• Frame Tube: Φ35mm
• Infill Tubes: Φ20mm (13 tubes)
• Reflective Strip: 1/3 white reflective band
• Feet Width: 600mm This barrier is ideal for urban traffic control, providing enhanced visibility at night.

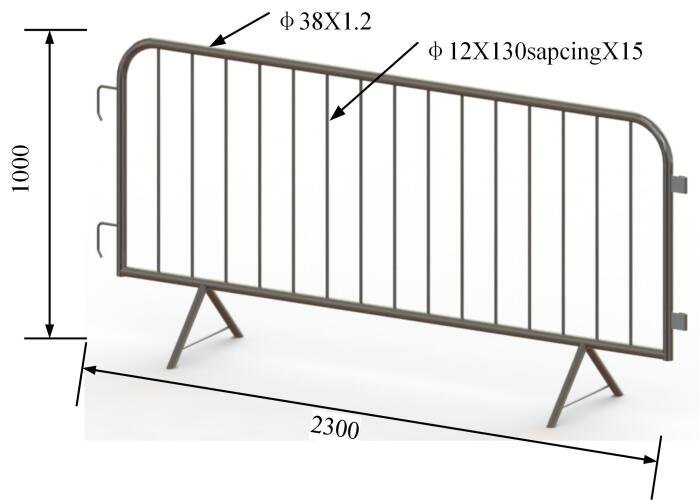

11. 2300mm Wide Barrier with 38mm Frame

• Overall Size: 2300mm (width) x 1000mm (height)
• Frame Tube: Φ38mm x 1.2mm
• Infill Tubes: Φ12mm spaced at 130mm (15 rods)
• Feet Type: V-shaped removable feet
• Applications: Effective for crowd management at public events and concerts.

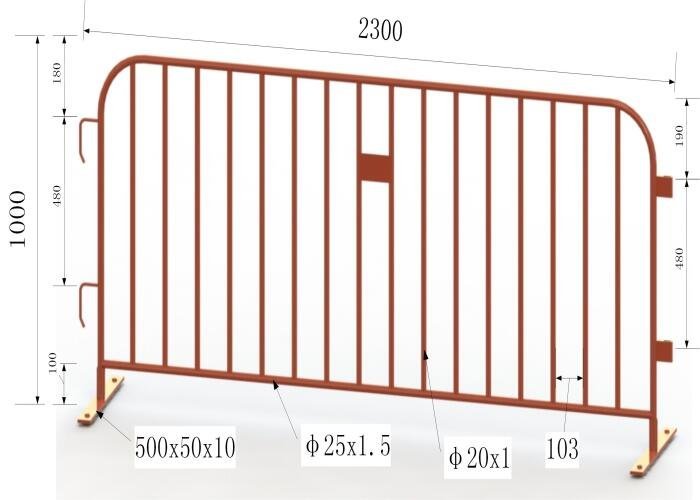

12. Heavy-Duty Barrier with 2300mm Width

• Overall Size: 2300mm (width) x 1000mm (height)
• Frame Tube: Φ25mm x 1.5mm
• Infill Tubes: Φ20mm x 1mm
• Feet Dimensions: 500mm x 50mm x 10mm flat base
• Hook and Lock Distance: 180mm between sections
• Applications: Ideal for construction zones and street festivals, providing durability and stability.

Conclusion

The right crowd control barriers dimensions ensure smooth operations at events, construction sites, and road management zones. Barriers with larger dimensions offer better stability for high-traffic areas, while compact models fit smaller spaces. Features like reflective tape, interlocking hooks, and customizable feet improve usability across diverse environments. Proper selection based on dimensions guarantees safety, effective crowd management, and smooth traffic flow in any situation.
