Pre-Galvanized -Complete Guide BMP

Pre-galvanized steel is a widely used material in the construction, fencing, and manufacturing industries. It refers to steel that has been coated with a thin layer of zinc before it undergoes any fabrication such as cutting, welding, or forming. This zinc coating provides basic corrosion protection and enhances the durability of the steel surface in many applications.

This article provides an in-depth explanation of the principle, process, benefits, drawbacks, and common uses of pre-galvanized steel.

1. Principle of Pre-Galvanized Steel

Pre-galvanizing works by coating steel with a thin, even layer of zinc. Manufacturers apply this layer while the steel remains in coil or sheet form. The zinc protects the steel by corroding first, which blocks oxidation, moisture, and corrosion.

This method gives the steel a clean, smooth finish. It suits projects that demand neat looks or automated production.

2. Pre-Galvanizing Process (Inline Galvanizing)

Many also call this method mill galvanizing or inline galvanizing. The entire process happens at the steel mill.

Step 1: Cleaning and Pickling
The factory removes oil, rust, and dirt using a degreasing solution. Then it uses acid to strip the steel clean in a process called pickling.

Step 2: Fluxing
The cleaned steel enters a flux bath with zinc ammonium chloride. This bath stops the steel from oxidizing before zinc coating.

Step 3: Zinc Coating
The steel passes through molten zinc at 450°C (842°F). Zinc bonds with the steel through diffusion.

Step 4: Air Wiping
Air knives blow off extra zinc. This ensures a thin, even coating, usually 40–100 g/m² (around 6–14 microns thick).

Step 5: Recoiling
The factory cools and dries the steel. Then workers roll it into coils for storage or delivery. This becomes pre-galvanized steel coil.

3. Advantages of Pre-Galvanized Steel

✅ Cost-Effective

Pre-galvanizing requires less zinc than hot-dip galvanizing and is conducted in large volumes at high speed, making it a cheaper option.

✅ Smooth and Consistent Finish

Because the steel is galvanized before fabrication, the surface has a uniform, aesthetically pleasing appearance without drips or uneven patches.

✅ Good Formability

The thinner zinc coating allows easy cutting, bending, and forming without flaking or peeling—ideal for lightweight products.

✅ Efficient Mass Production

It is suitable for mass production environments due to its continuous, automated inline coating process.

✅ Reduced Zinc Waste

The air wiping system applies a controlled and minimal zinc layer, reducing raw material waste.

✅ Basic Corrosion Protection

The zinc layer protects steel from environmental corrosion in indoor or low-exposure outdoor settings.

4. Disadvantages of Pre-Galvanized Steel

⚠️ Vulnerable Welded Areas

Once the pre-galvanized steel is cut or welded, the newly exposed edges are no longer protected and are prone to corrosion.

⚠️ Thinner Coating

The zinc layer is significantly thinner than that of hot-dip galvanized steel (15–20 microns vs. 70–100+ microns), reducing corrosion resistance.

⚠️ Shorter Outdoor Lifespan

It may not perform well in harsh outdoor environments, marine atmospheres, or heavily polluted areas.

⚠️ No Post-Fabrication Protection

Unlike hot-dip galvanizing, which coats the entire finished item (inside and out), pre-galvanizing protects only the flat surface prior to fabrication.

⚠️ Not Suitable for Immersion

Pre-galvanized steel should not be used in applications involving constant water contact or underground burial.

5. Comparison: Pre-Galvanized vs. Hot-Dip Galvanized

6. Common Applications of Pre-Galvanized Steel

• Temporary fencing panels
• Wire mesh
• Steel conduits and tubing
• HVAC ductwork
• Cable trays
• Light-duty steel framing
• Automotive components (interior)
• Indoor shelving, storage racks
• Sign posts and road barriers
• Furniture and appliances

7. Environmental and Handling Considerations of Pre-Galvanized Steel

Pre-galvanized steel reduces zinc use and lowers coating waste, making it more eco-friendly than some options. Its thinner zinc layer needs extra care during transport, storage, and installation. Avoid scratches or exposure that reduce corrosion protection.

When you weld or cut pre-galvanized steel, apply zinc-rich paint or another coating to protect exposed areas from rust.

8. Summary: When to Use Pre-Galvanized Steel

Choose pre-galvanized steel when:

• You want a clean and even finish

• The application stays indoors or in a mild environment

• You need to save costs

• Your production line requires fast and repeatable fabrication

• Strength matters but you don’t need top-tier corrosion protection

Avoid pre-galvanized steel when:

• The product faces harsh weather, moisture, or chemicals

• You need full protection on edges and welds

• You require long-lasting outdoor durability

• The product will be buried, submerged, or placed in marine zones

Conclusion Pre-Galvanized

Pre-galvanized steel is a smart, efficient, and economical choice for a wide range of industrial and commercial applications. Its smooth finish, light weight, and moderate corrosion protection make it ideal for use in fencing, tubing, frames, and wire products.

However, it is not a one-size-fits-all solution. Understanding where and when to use pre-galvanized steel—and when to choose alternatives like hot-dip galvanizing—is key to ensuring long product life and performance.

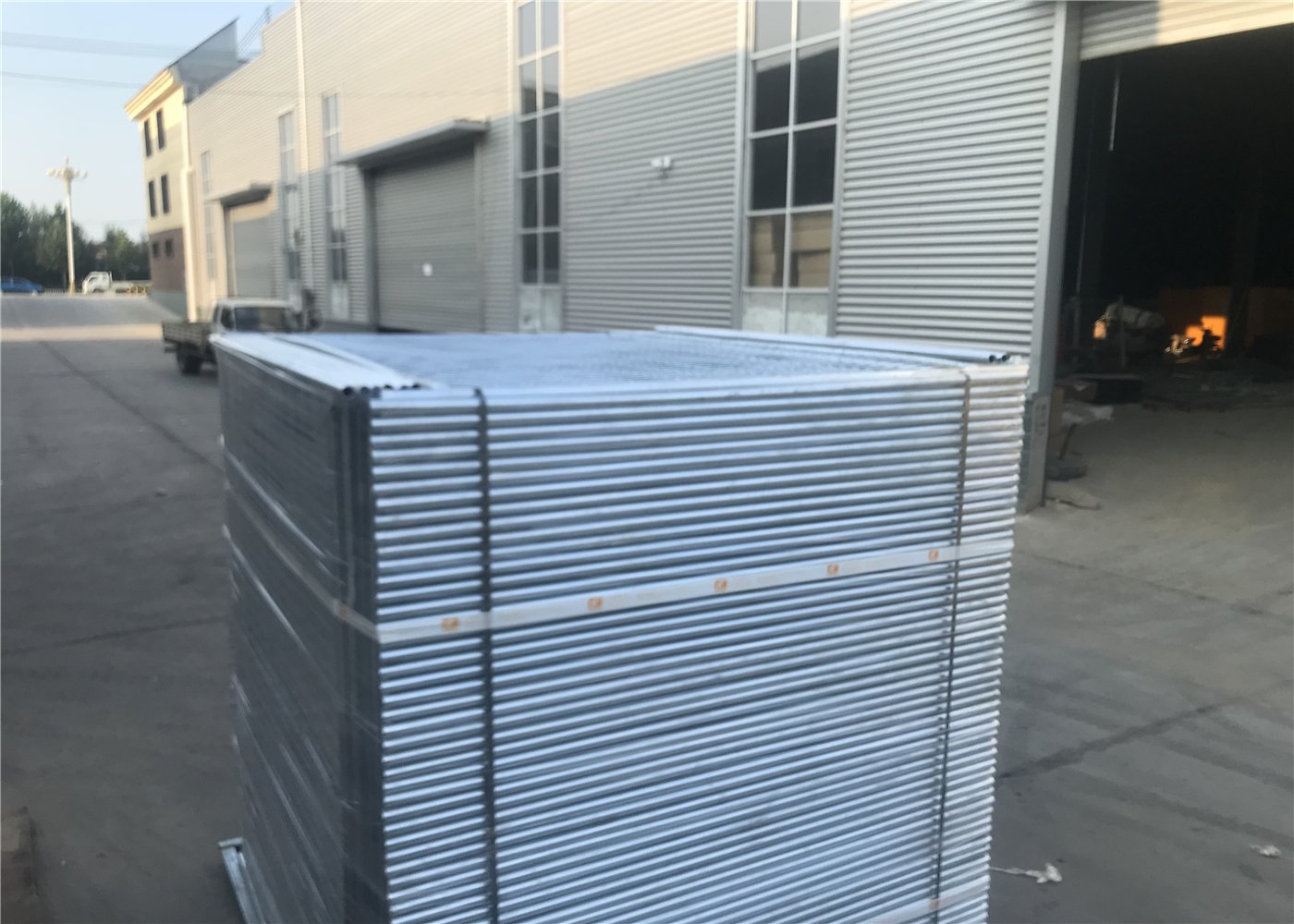

Pre-galvanized steel plays a crucial role in the production of temporary fencing, crowd control barriers, clearvu fencing and other steel-based safety solutions. It is a smart material choice where cost efficiency, speed, and aesthetic quality matter. While not as corrosion-resistant as hot-dip galvanized steel, it performs exceptionally well in controlled environments and short-term outdoor uses.

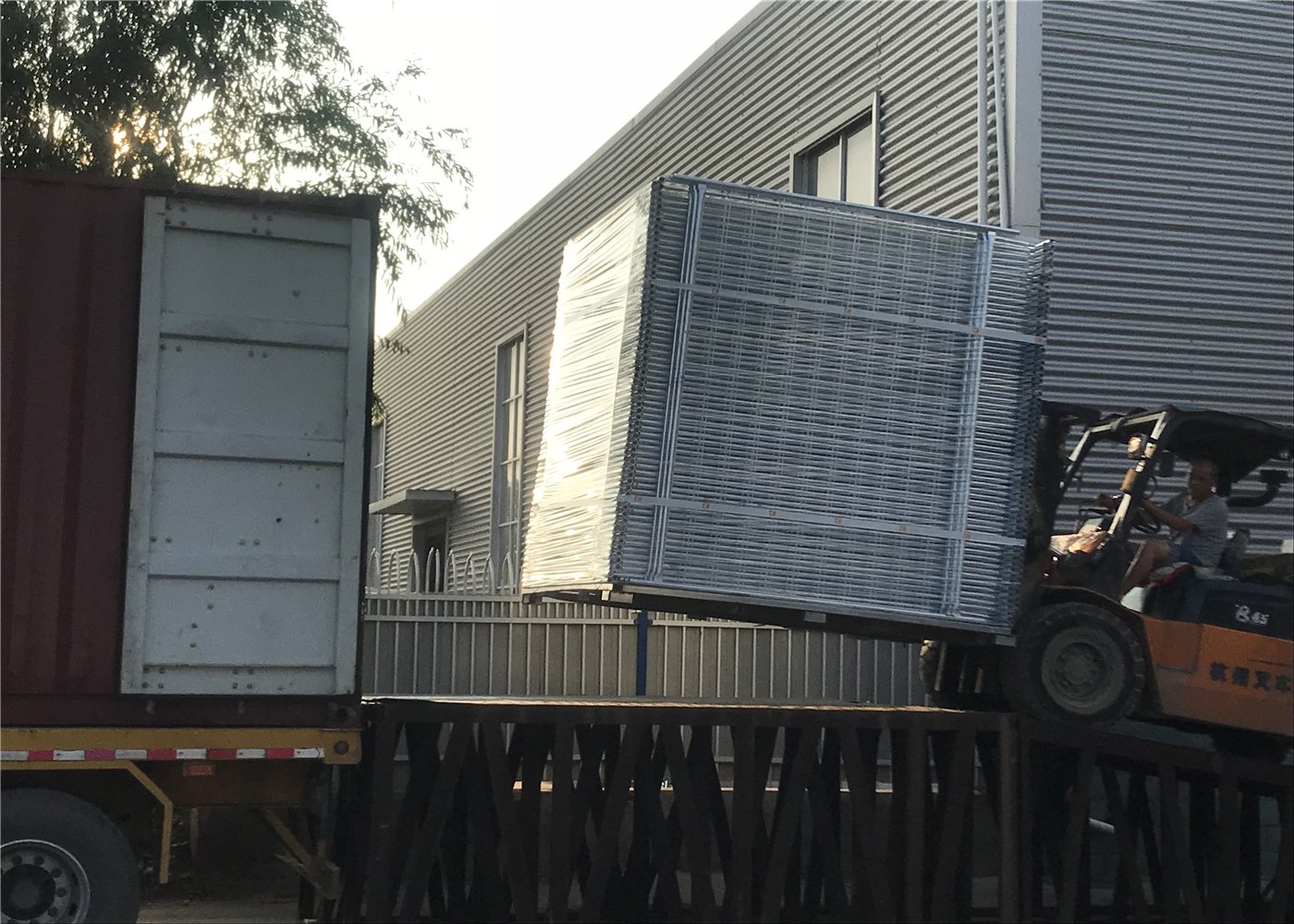

At BMP, we use pre-galvanized steel in many of our modular fencing products. This allows us to deliver high-quality, easy-to-use barriers that perform reliably on construction sites, public events, and logistics facilities worldwide.
