Corromesh: The Ultimate High Security Fence Solution
- Type: Fencing, Trellis & Gates
- Place of Origin: Hebei, China (Mainland)
- Brand Name: BMP corromesh
- Model Number: 358 Fence
- Frame Material: Metal
- Metal Type: Steel
- Pressure Treated Wood Type: Heat Treated
- Frame Finishing: Powder Coated
- Feature: Easily Assembled, Rodent Proof, Rot Proof, Waterproof, Eco-Friendly
- Product Name: Durable Anti-Climb Fence
- Material: Steel
- Brand Name: BMP
- Place of Origin: Heibei China (Mainland)
- Color: Dark Green, Black, Blue, Silver, Red
- Surface Treatment 1: Hot-Dipped Galvanised
- Surface Treatment 2: Galvanised, then Powder Coated
- Wire Diameter: 4mm, 5mm, 6mm
- Mesh Size: 76.2mm x 12.7mm / 75mm x 12.5mm / 100mm x 15mm
- Price :38.23$-68.18$ per meter
- Description

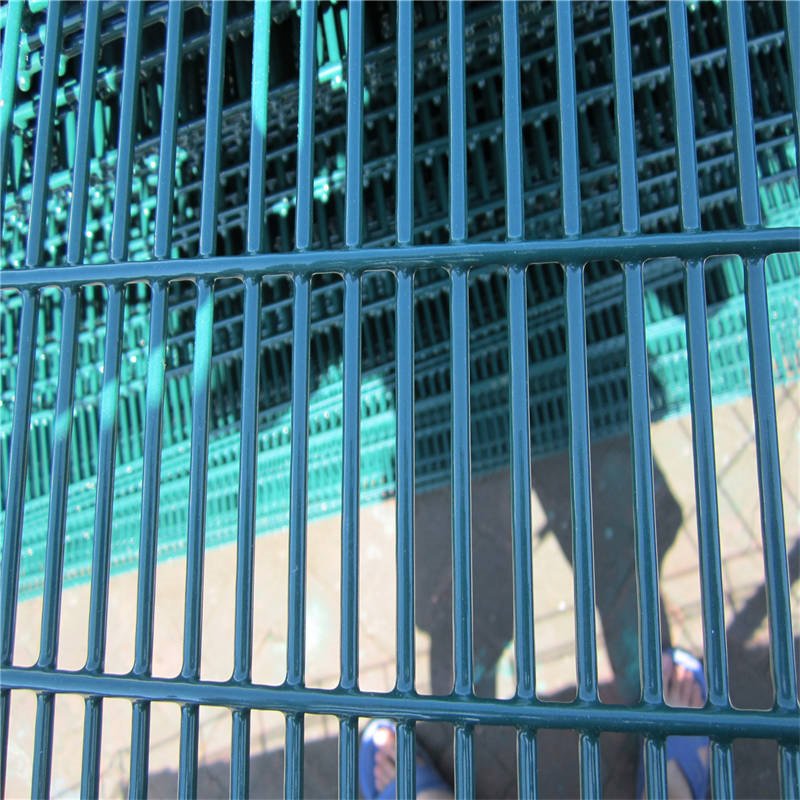

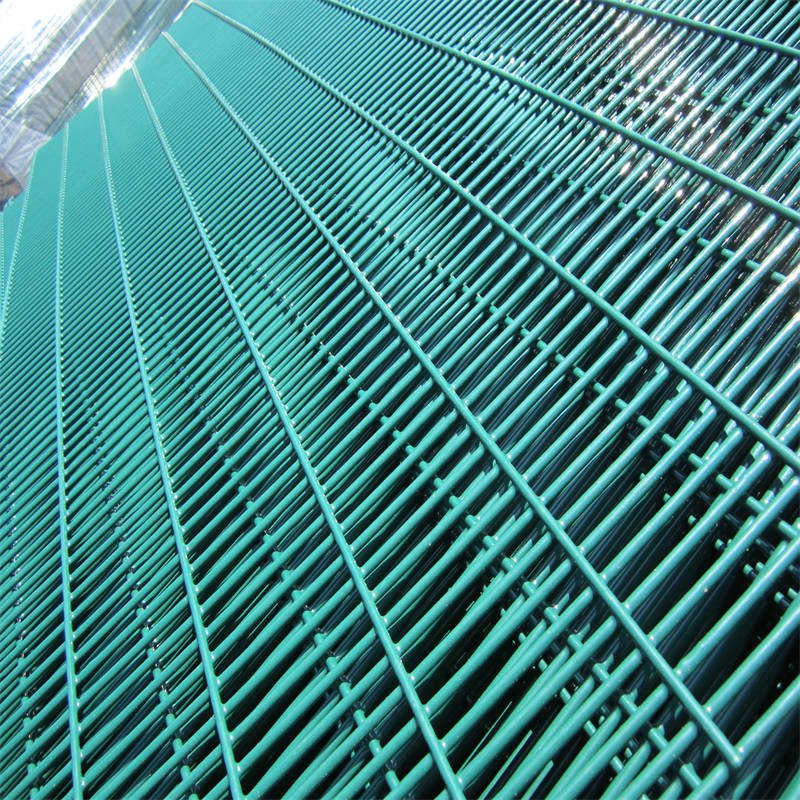

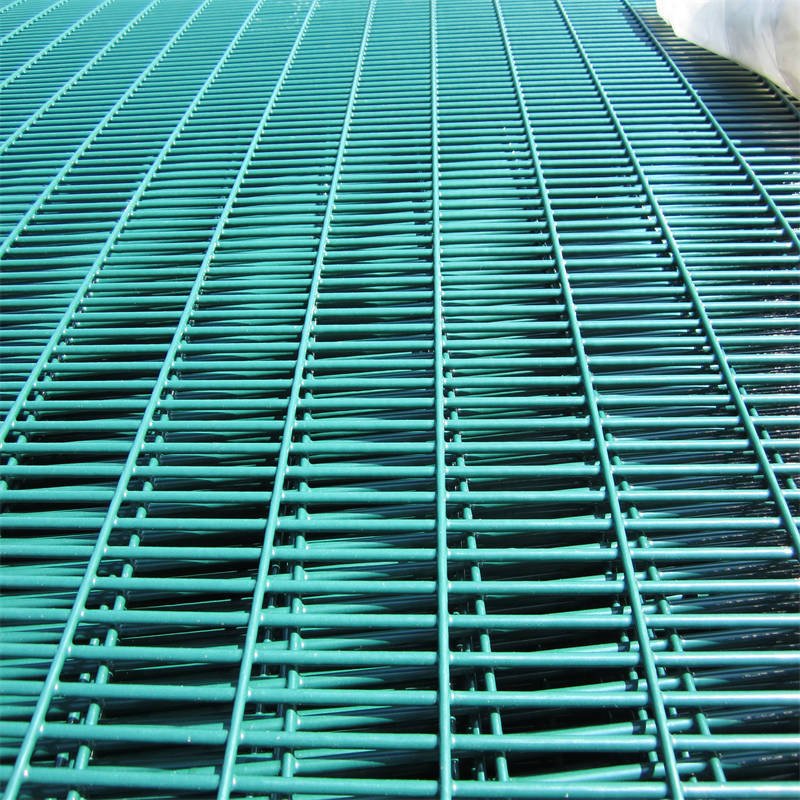

Corromesh, also Called High security 358 fence combined with the feature of high security and welded mesh with small rectangular. Due to the large wire diameter (4 mm)
and the restricted width of the mesh (12.7 x76.2mm ) offers maximum security, and it has an attractive design. The horizontal bends make the system ideal for an
and the restricted width of the mesh (12.7 x76.2mm ) offers maximum security, and it has an attractive design. The horizontal bends make the system ideal for an
environment where security and aesthetics go hand in hand.
 |
 |
 |
 |
Table 1: Mesh Specifications and Material Details
| Attribute | Specification |
|---|---|

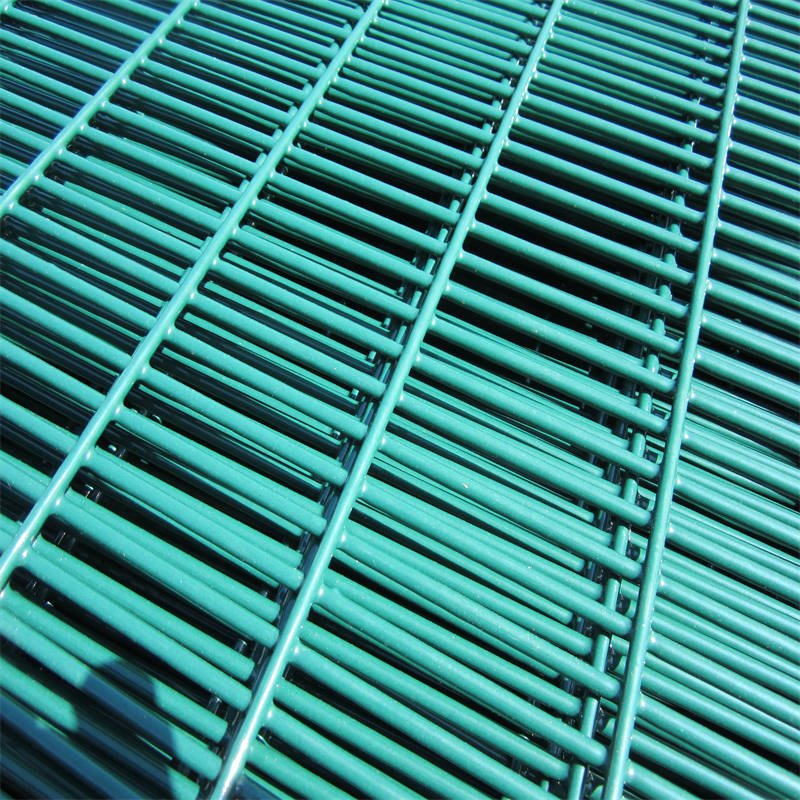

| Corromesh® Pattern | 75mm x 13mm, resistance welded at each intersection |
| Horizontal Wires | 3.15mm diameter, at 13mm centres |
| Vertical Wires | 4.0mm diameter, at 75mm centres |
| Extended Top | Extended to provide a spike topping |
| Additional Vertical Edge Wires | 2 x Additional Vertical Edge wires at 25mm per panel |
| Mesh Corrugations | Approximately 95mm pitch x 28mm deep overall |
| Standard Sheet Size | 2404mm width x 1800, 2100, 2400mm height |
| Tolerance | Width ± 2.00mm, Length ± 2.00mm |
| Formed Top | 50mm x 90 degree to support Razor Tape® (if required) |
| Material – Horizontal Wires | 3.15mm drawn wire |
| Material – Vertical Wires | 4.0mm drawn wire |
| Yield Strength | 375-470MPa |
| Tensile Strength | 500-625MPa |
| Welded Strength | Minimum 60% of wire tensile strength |
| Coating | Zinc Alloy 95-160 gms Sqm, Australian Standard AS 4534-2006 W05 |
Table 2: Post Specifications and Installation Details
| Attribute | Specification |
|---|---|
| Fence Post | Cold formed SHS tube, dimensions vary by fence height: 65x65x2.5 (2100mm high), 75x75x2.5 (2400mm high), 100x100x3.0 (>2400mm) |
| Material – Posts | Grade 350+ Mpa AlGal, Minimum tensile strength 350 MPa, AS1163 |
| Fence Post Dimensions | Fence height: 1800, 2100, 2400mm, Footing depth: 650, 700, 900mm, Overall length: 2400, 2750, 3250mm |

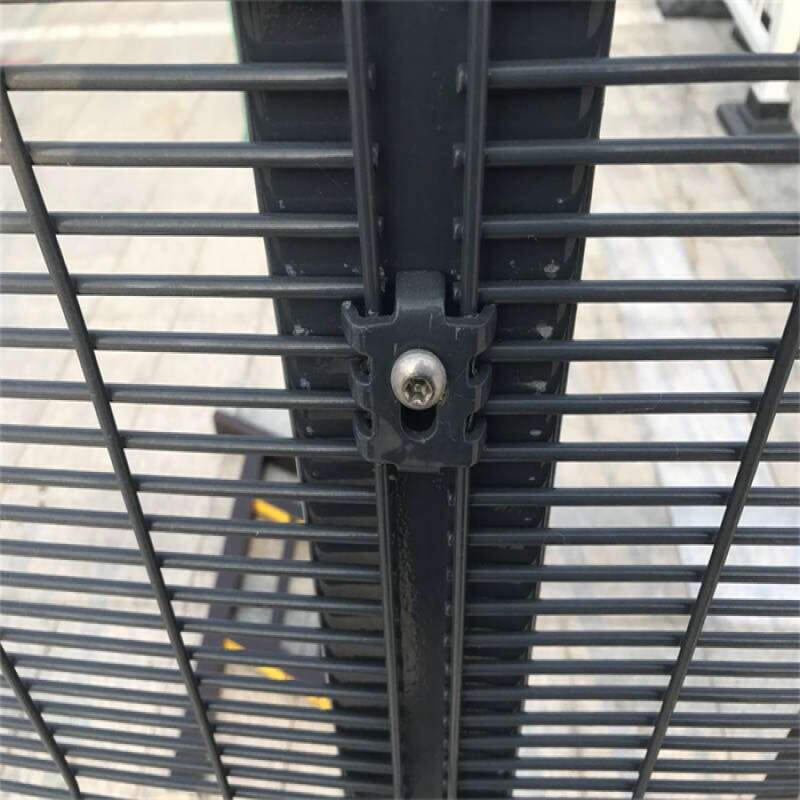

| Fasteners | Mesh to RHS posts: Self drilling security screws class 4, One way drive only, Every third rib, Maximum 282mm centres |
| Fixings | 1 x HD pre-formed security washer |
Features for Corromesh
Long lifetime: The coating technology is state of the art and guarantees extra high longevity.

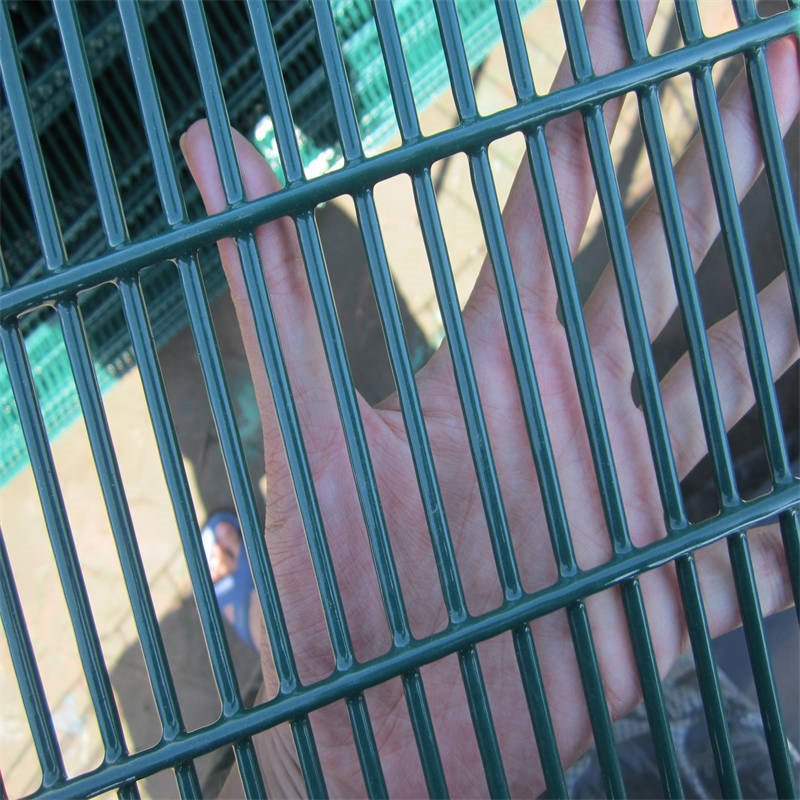

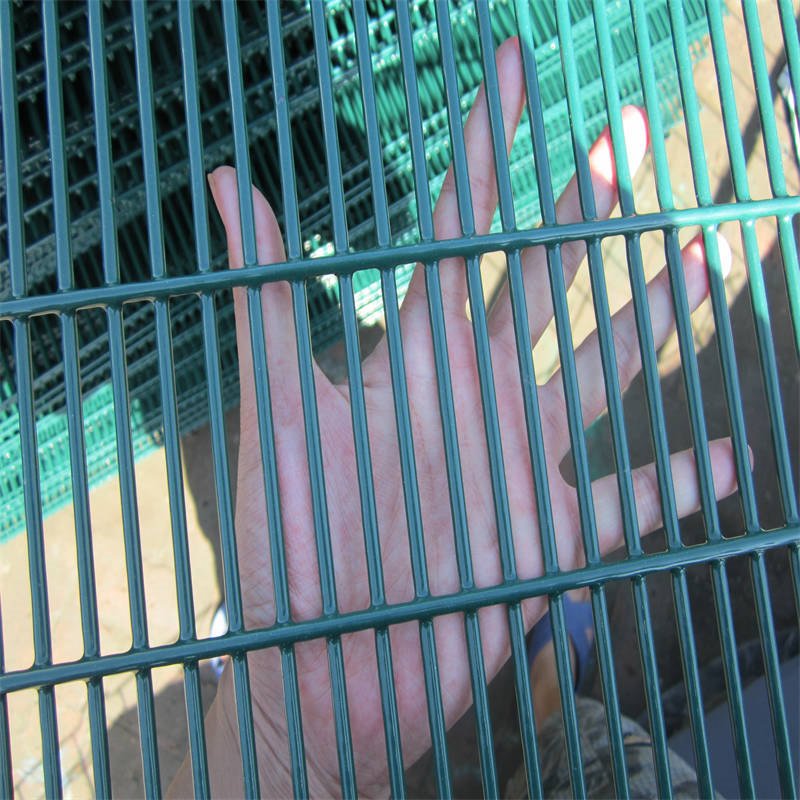

Good viewing visibility: Despite the small mesh aperture, the see-through characteristics remain unimpaired
when viewed head-on and even at an angle to the fence. This is particularly important for transparent camera surveillance.
The complete system includes panels with adapted posts and a specific fixing system.
Corromesh Specifications:
- Wire Quality: Spotted by 4mm diameter quality mild steel wire
- Opening Size: 75×150 mm
- Dimensions: 1800×3000 mm (LxW)
- Frame: 20x30x1.5 mm
- PVC Coating Thickness: 0.7-0.8 mm
- Coated Wire Diameter: 4.8 mm
- Support Post: Diameter 48x2x2200 mm
- Fence Base: 500x300x300 mm
- Core Construction: Electro welded wire mesh, plastic coated on galvanized core
Packaging & Delivery Details for Corromesh:
- Packaging Features:
- Rubber mat at the bottom of the pallet to prevent damage to the panels.
- Four metal corners to strengthen the pallet.
- Metal plate under the bandage to lessen the pressure on the panels.
- Wooden plate on top to protect the panels from being crushed by other pallets.
- Delivery Timeframe: Within 15 days after receiving the deposit
This cost-effective security solution is a Durable, Waterproof, Anti-Climb Fence, also known as Anti-Climb Cut Fence or 358 Fencing. Ideal for areas requiring high security, it offers excellent durability and protection against intrusion, making it a reliable choice for safeguarding premises.If you need further modifications or additional information included, let me know!
Process Corromesh :
Corromesh fence panel production: low carbon steel wire, galvanised wire, hot-dipped galvanised wire → straighten & cut short the wire → welding → bending or not/galvanising (black wire need)/parkerizing/powder/PVC coating
posts: hot dipped galvanised tube then cutting short → Powder coating

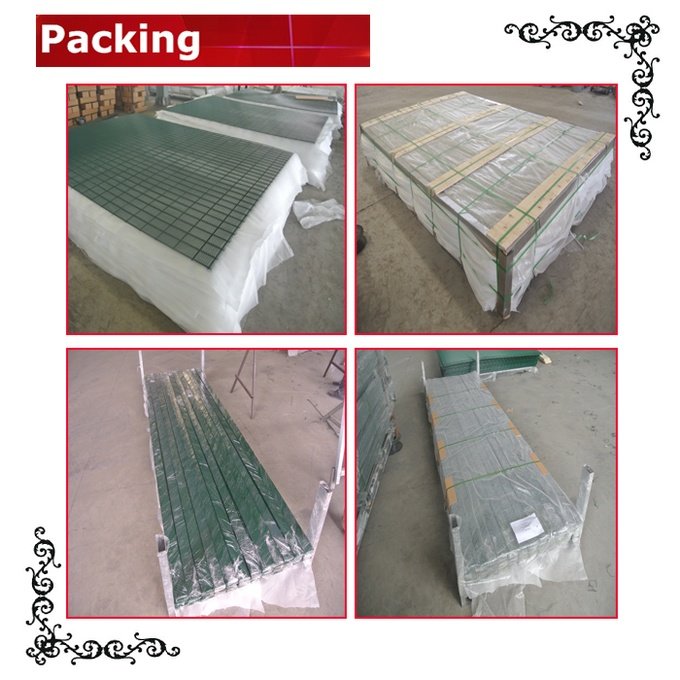

Packing :
Corromesh packing fully complied with export standard

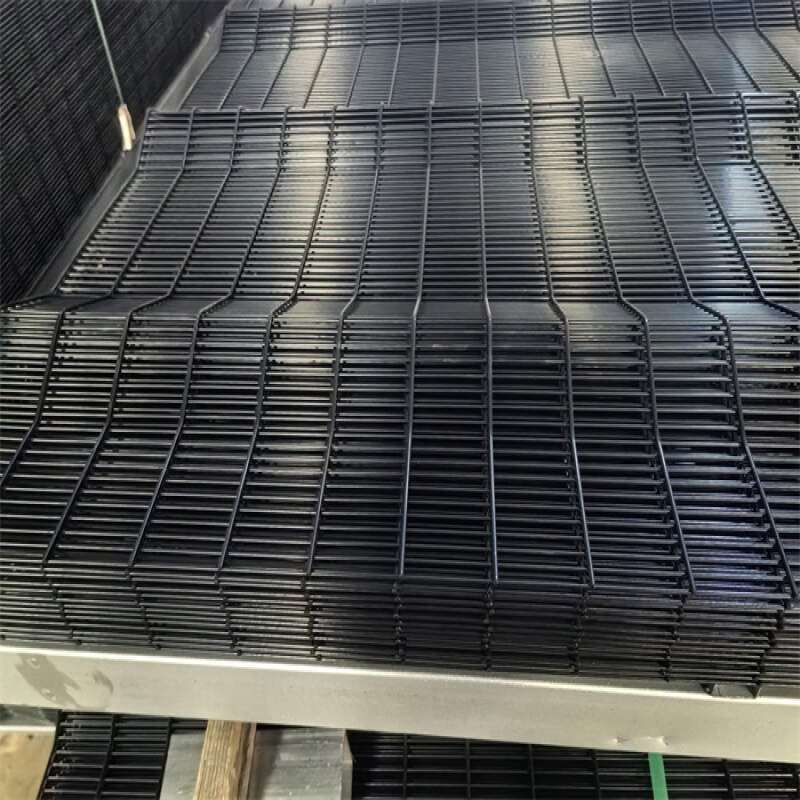

Fence panel:
- 1. It has a rubber mat at the bottom of the pallet to prevent the pallet destroyed the panels.
- 2. It has four metal corners to keep the pallet more strong.
- 3. It has a metal plate under the plastic bandage to reduce the pressure on fence panels.
- 4. The wooden plate on top can protect the fence panels avoid being crushed by other pallets.
Post:
1. every post is packed with a plastic bag, then a pallet
2. according to your requirement.
Corromesh Accessories :
Clips or rain hats with cartons
