heavy-duty metal horse fence panels

Heavy-duty metal horse fence panels are made of welded hot dip galvanised pipes and wire for livestock fencing cattle, cows, bulls, calves, dairy sheep, goats, and hogs. And these horse fence panels are made of First-grade pre-hot dipped galvanised tubes — 60 / 100 / 200 g/m2 Zinc coating inside and outside the material.

Specification

our metal horse fence panels available in several designs with high quality and competitive price

Table A: Square Tubes Style Metal Horse Fence Panels

Specification	Details
Material	Pre-hot dipped galvanised steel pipe
Zinc Coating	More than 15 microns
Dimensions (HxL)	1800mm x 2100mm (6 rails), 1600mm x 2100mm (5 rails)
Vertical Pipe	40 x 40 x 1.6mm/2.0mm; 50 x 50 x 1.6mm/2.0mm
Horizontal Pipe	40 x 40 x 1.6mm/2.0mm; 50 x 50 x 1.6mm/2.0mm
Welding	Fully welded
Surface Treatment	1) Antirust paint on welding seams, 2) Antirust paint + silver spray-painted on welding seams, 3) Silver spray-painted on the entire panel
Accessories	2 rain caps, 2 “U” lugs, 2 “L” lugs, 2 pins, 2 footplates per set

Table B: Oval Tubes Style Metal Horse Fence Panels

Specification	Details
Material	Pre-hot dipped galvanised steel pipe
Zinc Coating	More than 15 microns
Dimensions (HxL)	1800mm x 2100mm (6 rails), 1600mm x 2100mm (5 rails)
Vertical Pipe	40 x 40 x 1.6mm/2.0mm; 50 x 50 x 1.6mm/2.0mm (square pipes)
Horizontal Pipe	30 x 60 x 1.6mm/2.0mm; 40 x 80 x 1.6mm/2.0mm (oval rails)
Welding	Fully welded
Surface Treatment	1) Antirust paint on welding seams, 2) Antirust paint + silver spray-painted on welding seams, 3) Silver spray-painted on the entire panel
Accessories	2 rain caps, 2 “U” lugs, 2 “L” lugs, 2 pins, 2 footplates per set

Table C: Round Tubes Style Metal Horse Fence Panels

Specification	Details
Material	Pre-hot dipped galvanised steel pipe
Zinc Coating	More than 15 microns
Dimensions (HxL)	1800mm x 2100mm (6 rails), 1600mm x 2100mm (5 rails)
Vertical Pipe	32mm OD x 1.6mm/2.0mm; 42mm OD x 1.6mm/2.0mm
Horizontal Pipe	32mm OD x 1.6mm/2.0mm; 42mm OD x 1.6mm/2.0mm
Welding	Fully welded
Surface Treatment	1) Antirust paint on welding seams, 2) Antirust paint + silver spray-painted on welding seams, 3) Silver spray-painted on the entire panel
Accessories	2 rain caps, 2 “U” lugs, 2 “L” lugs, 2 pins, 2 footplates per set

Packaging and Delivery

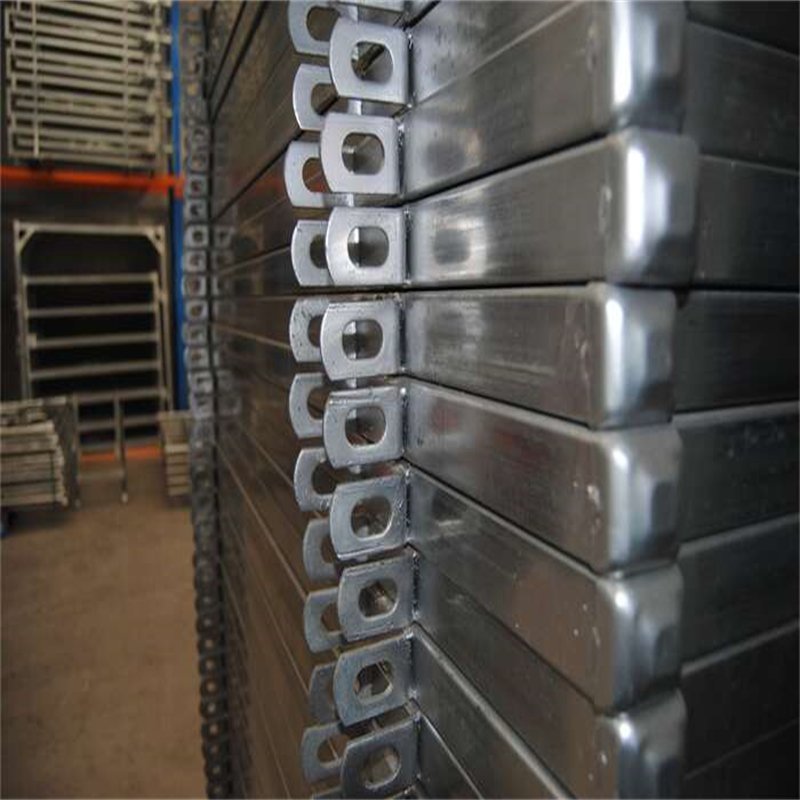

Packaging Details	Fence panels wrapped in plastic film, secured on wood/metal pallets; fence posts in plastic bags with caps covered, secured on metal pallets; accessories in small plastic bags and carton boxes; custom packaging available upon request
Delivery Time	15 working days after receipt of deposit

Producing Process of Metal Horse Fence Panels

1. Use pre-hot dipped galvanized steel pipes, then weld and polish them. Apply antirust paint to the welding seams.
2. After using the pre-hot dipped galvanized steel pipes, weld and polish them. Apply antirust paint on the welding seams and then spray silver paint on these seams.
3. Start with pre-hot dipped galvanized steel pipes, weld and polish them, and then spray silver paint on the entire panel.

Welding Features Heavy-duty metal horse fence panels

• The panels have firm 360-degree welding.
• The welding spots are neat and smooth, preventing injury to sheep and goats, and ensuring safety.
• We apply an anti-rust finish to the welding spots, making them very durable.

Unique Designs Heavy-duty metal horse fence panels

• Square vertical pipes or posts provide easy and firm welding, making them more durable and visually appealing.
• Oval horizontal rails, with no sharp edges, protect sheep and goats from injury, ensuring high safety.
• The rail spacing prevents lambs from getting through.
• Middle braces add high strength and heavy-duty support.

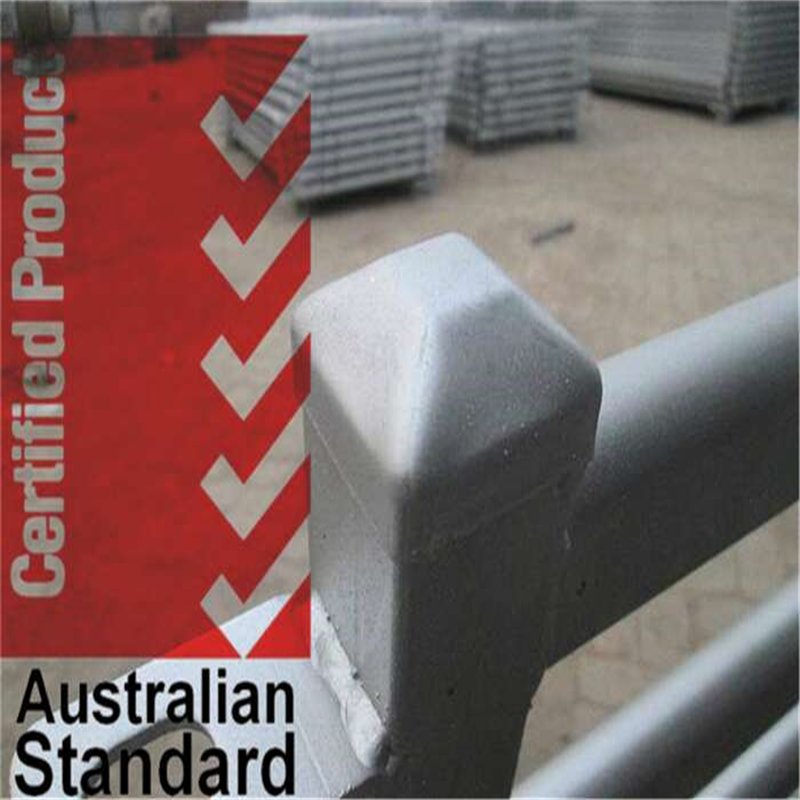

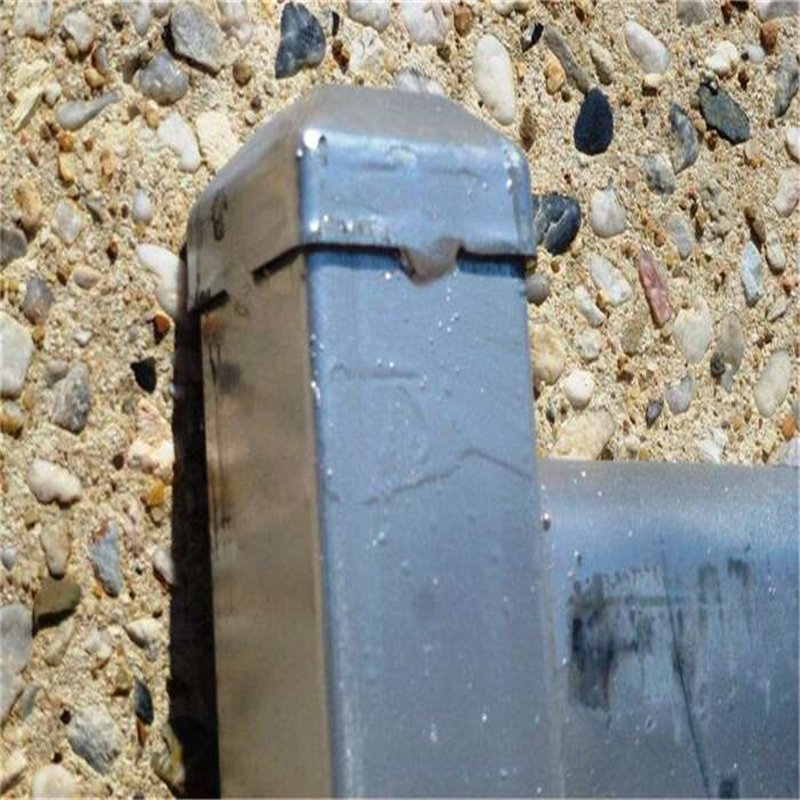

• Welded top caps and footplates keep the panels water and dustproof.

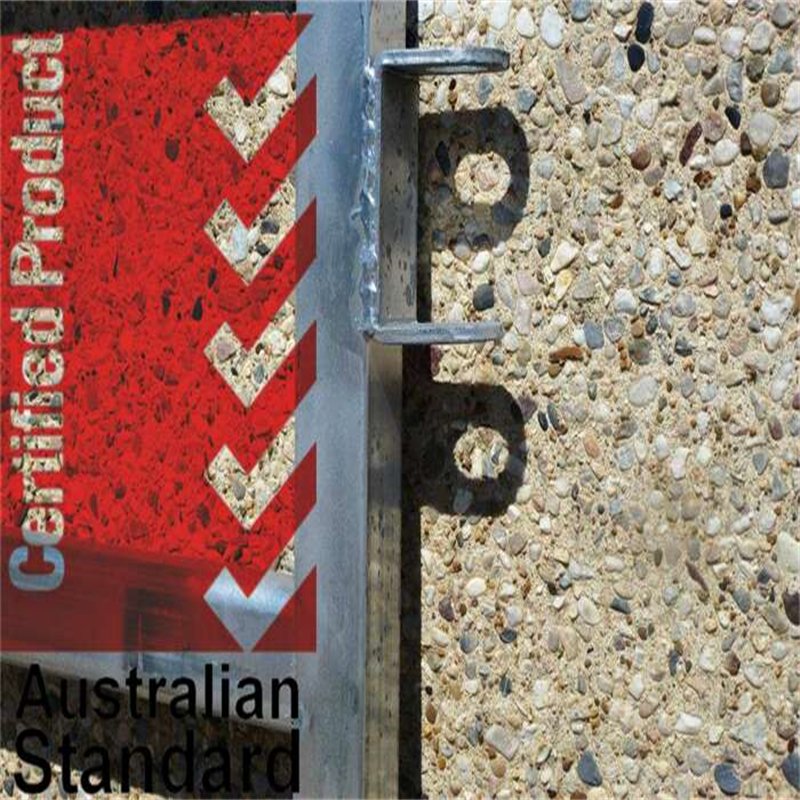

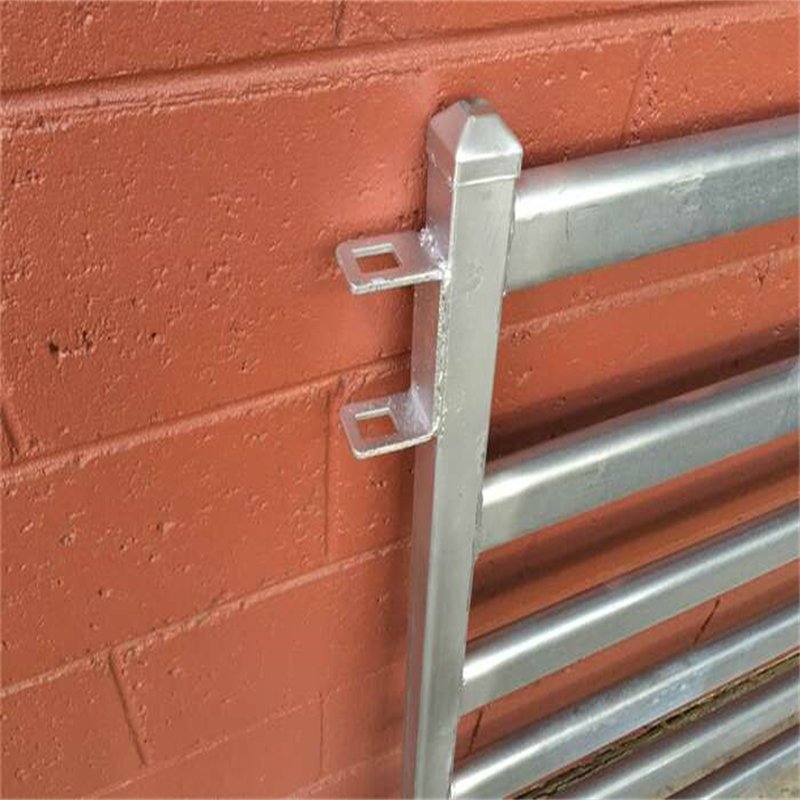

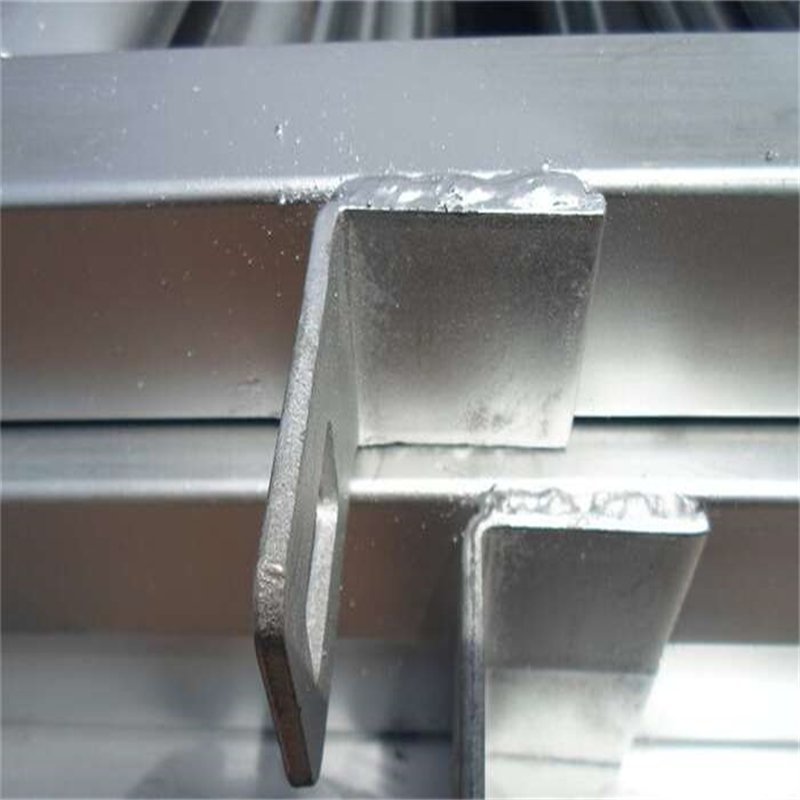

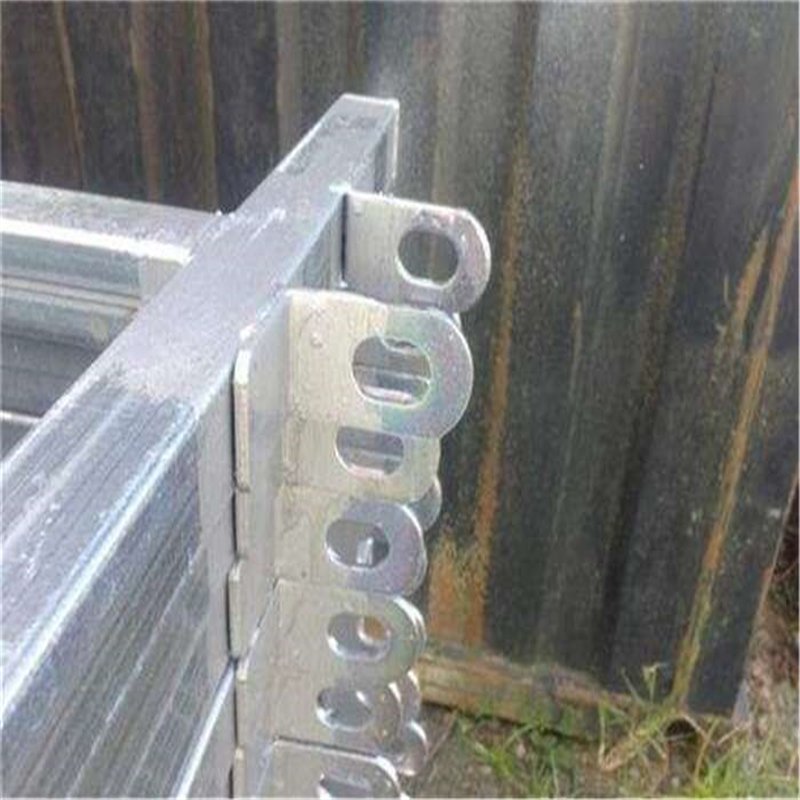

• The panels have welded “U” and “L” lugs for easy connection. The lugs bracket all four sides for extra durability.

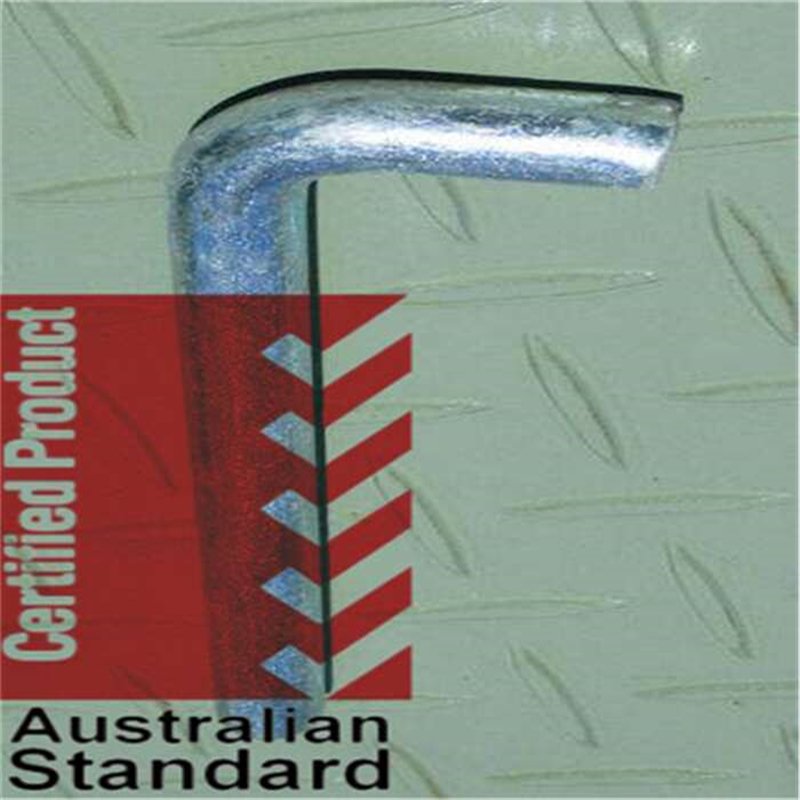

• Each panel comes with 2 joining pins.
• A footplate allows the panel to be cemented into the ground with nails.
• The panels are easy to assemble and disassemble.

Our Service for Heavy-Duty Metal Horse Fence Panels

1. We ship the panels within 15 days after receiving the deposit.
2. We find a shipping company that offers high quality and low prices.
3. We track the shipment to ensure the product’s safety and quick arrival at the designated ports.
4. Once the panels arrive, we provide installation instructions and ongoing technical support.

Conclusion

In conclusion, heavy-duty metal horse fence panels are a versatile and essential solution for containing and managing livestock. They are strong and adaptable, making them perfect for various uses, including horse stalls, portable cattle systems, arenas, and round pens. These panels offer a reliable barrier, ensuring the safety and effective management of animals in different agricultural and equestrian settings.
