40mm x 40mm Square Tube Cattle Panels

When it comes to managing livestock, durability, functionality, and safety are crucial factors for fencing solutions. 40mm x 40mm Square Tube Cattle Panels provide a robust and efficient option for livestock enclosures, combining strength with versatility. Whether you need portable fencing for temporary use or a permanent enclosure, these panels deliver reliable performance to meet your needs.

Key Features of 40mm x 40mm Square Tube Cattle Panels

1. Strong and Durable Construction

The panels are crafted from 40mm x 40mm square tubes with a wall thickness of 1.60mm, providing excellent strength and stability. This design ensures the panels can withstand the impact and pressure from livestock, including cattle and horses.

2. Hot-Dip Galvanized Finish

Each panel features a hot-dip galvanized coating for superior protection against rust and corrosion. The zinc coating, measuring 15 µm or 60–80 g/m², extends the lifespan of the panels, making them suitable for use in harsh outdoor environments.

3. Optimal Dimensions

These cattle panels are available in heights of 1600mm and 1800mm and widths of 2100mm or 2400mm, providing ample space for effective livestock management. The panels’ size ensures secure enclosures without compromising the mobility of the animals.

4. Horizontal Bar Design

Equipped with 5 or 6 horizontal bars made of 40mm x 40mm square tubes, these panels offer a strong framework to handle livestock of various sizes. The uniform spacing of the bars enhances safety by preventing animals from attempting to escape or getting stuck.

5. Accessories for Easy Installation

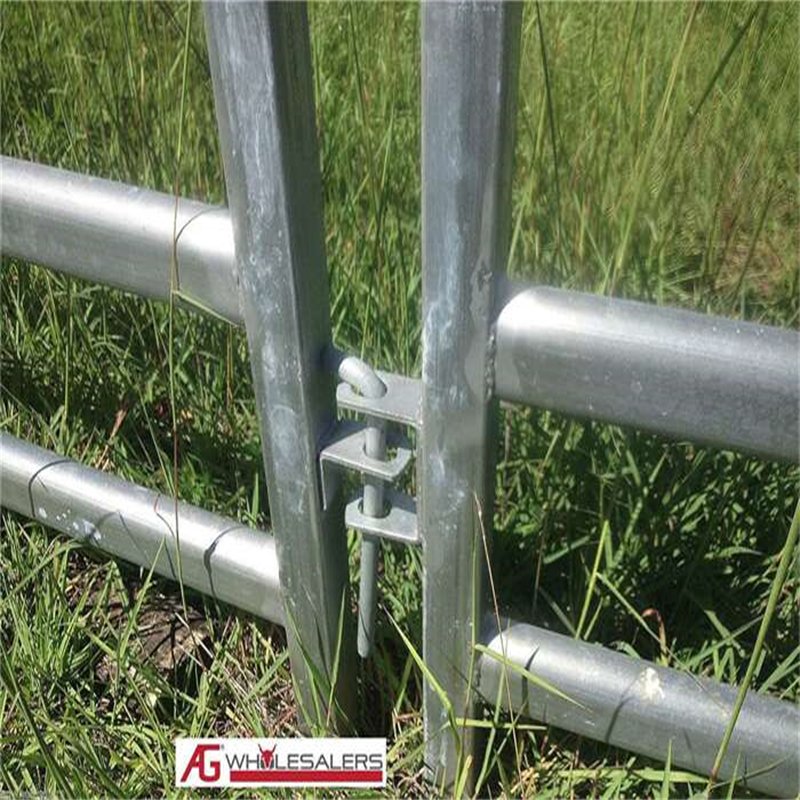

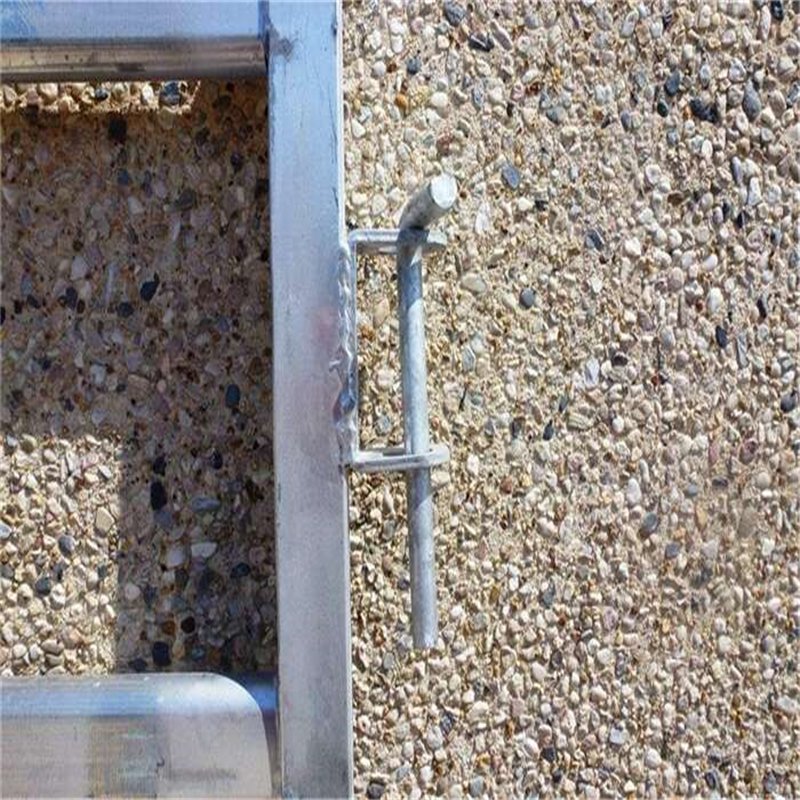

Each panel comes with 2 caps, 2 L lugs, 2 U lugs, 2 pins, and 2 foot plates, allowing for quick and secure installation. These accessories make it easy to connect multiple panels and create a sturdy, cohesive structure.

6. Versatile Applications

The 40mm x 40mm square tube cattle panels are suitable for:

• Permanent Fencing: Create long-term enclosures for cattle and other livestock.
• Portable Fencing: Easily move and set up temporary enclosures as needed.

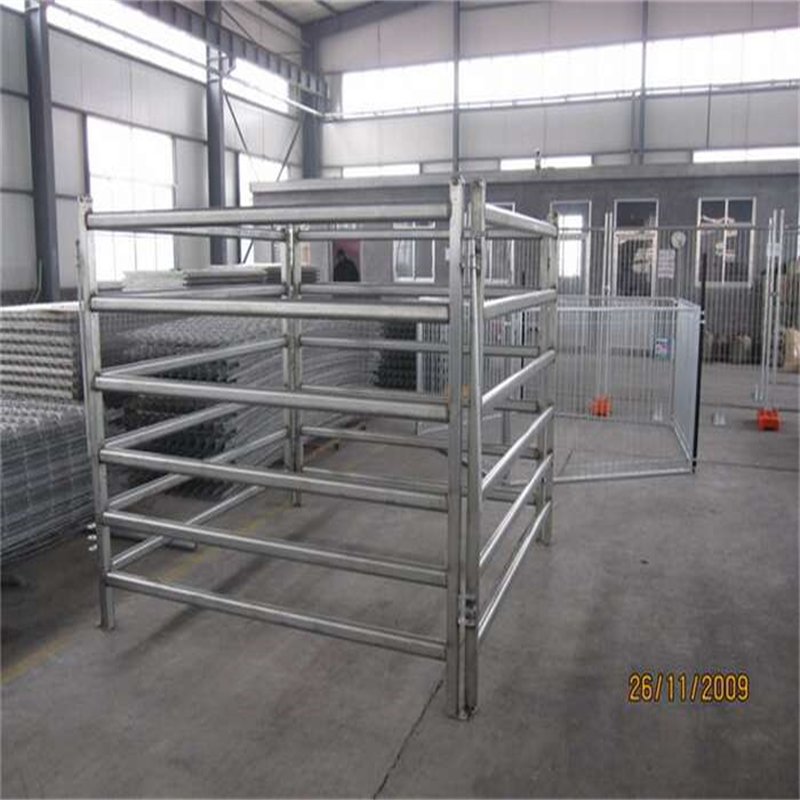

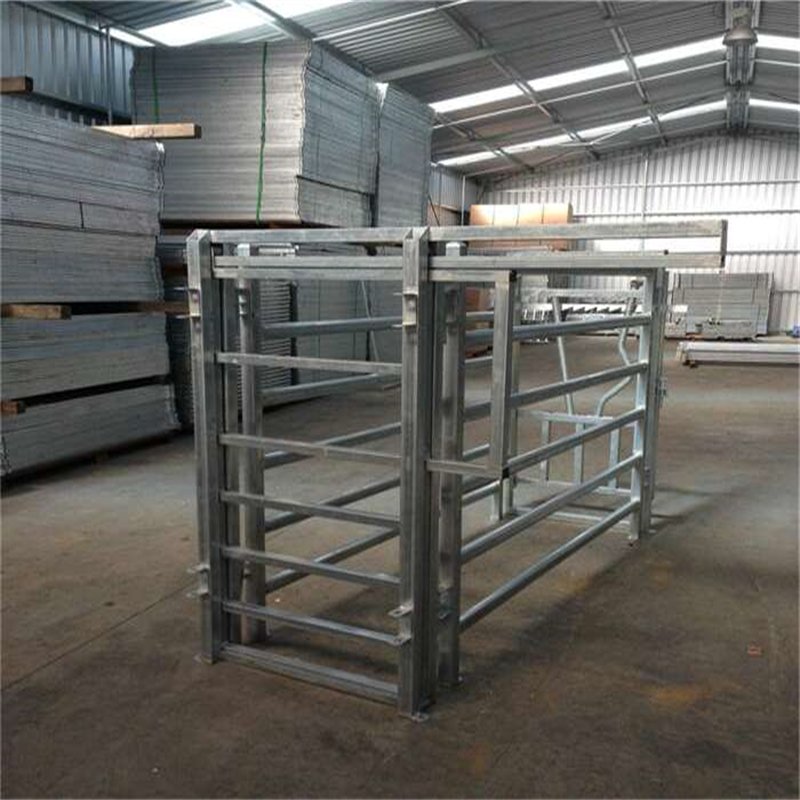

• Yard Management: Build holding pens, sorting yards, or feeding areas.

Benefits of 40mm x 40mm Square Tube Cattle Panels

1. Enhanced Livestock Safety

The smooth edges and robust construction of the square tubes reduce the risk of injury to livestock. The tightly spaced bars prevent animals from escaping or getting their heads caught, ensuring a safe environment.

2. Durable and Weather-Resistant

The hot-dip galvanized finish protects the panels from rust, corrosion, and wear, making them ideal for outdoor use in varying climates. This durability reduces maintenance costs and increases the panels’ longevity.

3. Easy Setup and Portability

With included accessories like lugs and pins, assembling and disassembling the panels is simple and quick. This makes them an excellent choice for farmers who frequently need to reconfigure or relocate their fencing.

4. Cost-Effective Solution

The 40mm x 40mm Square Tube Cattle Panels durability and versatility make them a cost-effective option for livestock management. Their long lifespan ensures excellent value for money over time.

5. Customization Options

Manufacturers can customize these panels to meet specific requirements, such as different sizes, finishes, or additional features like gates or integrated feeders.

Technical Specifications

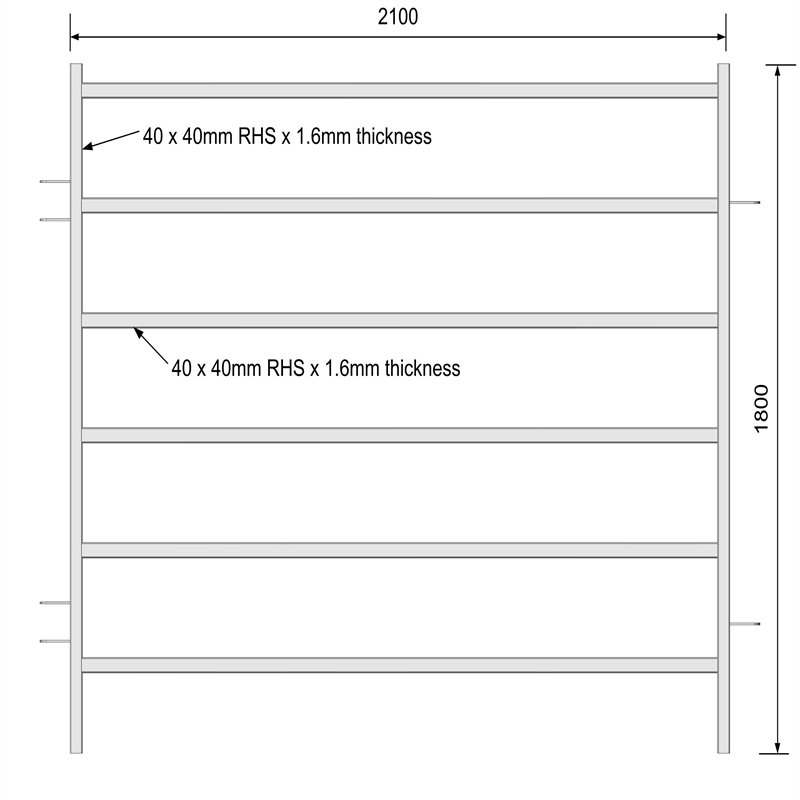

Table 1: Cattle Panels (Height: 1800mm, 40×40 Tubes)

Table 2: Cattle Panels (Height: 1600mm, 40×40 Tubes)

Applications of 40mm x 40mm Square Tube Cattle Panels

• Cattle Enclosures: Create secure areas to manage, feed, and care for your cattle.
• Horse Yards: Use the robust panels to build safe enclosures for horses.
• Temporary Fencing: Set up portable fencing for events, shows, or rotational grazing.
• Feeding and Sorting Areas: Design efficient and flexible systems for feeding or sorting livestock.

Conclusion

The 40mm x 40mm square tube cattle panels offer a perfect balance of durability, safety, and versatility for livestock management. Their robust construction, hot-dip galvanized finish, and user-friendly design make them an ideal choice for farmers and ranchers. Whether you need a temporary solution or a permanent setup, these panels ensure reliable performance while keeping your livestock safe and secure.

Invest in high-quality cattle panels today to enhance your farming operations and create a safe environment for your livestock.
